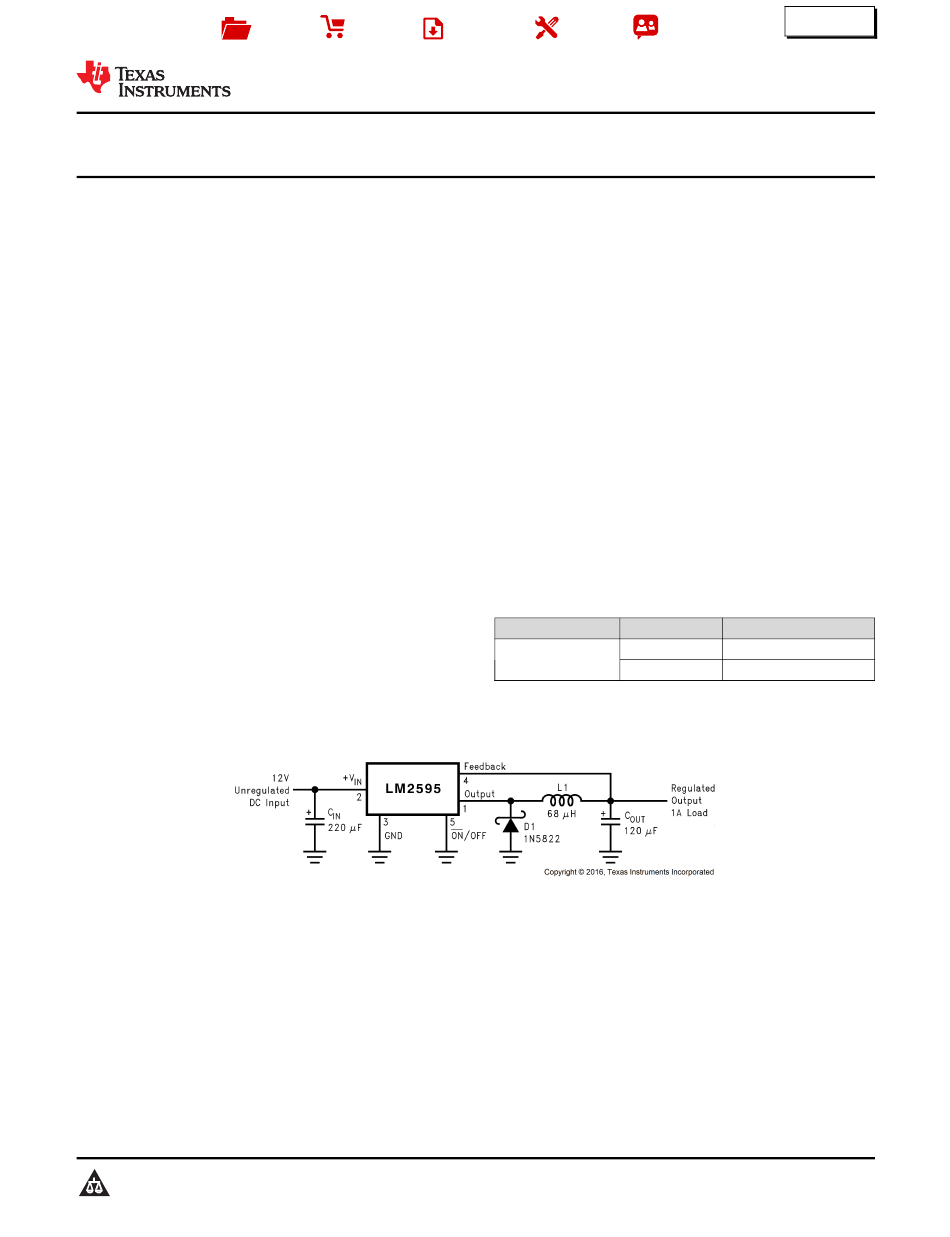

LM2595 SIMPLE SWITCHER
1 特 特 長 長
3.3V、5V、12V、および可変出力電圧バージョン
1
可変タイプの出力電圧範囲は1.2Vから最大37V、
入力と負荷の全条件で±4%の許容誤差
TO-220およびTO-263表面実装パッケージで供給
1Aの出力負荷電流を保証
最大40Vの入力電圧範囲
4個の外付け部品で動作可能
優れたラインおよび負荷レギュレーション仕様
150kHz固定周波数の内部オシレータ
TTLシャットダウン機能
低消費電力のスタンバイ・モード、I
85μA
高効率
容易に入手可能な標準インダクタ使用
サーマル・シャットダウンおよび電流制限保護
2 ア ア プ プ リ リ ケ ケ ー ー シ シ ョ ョ ン ン
シンプルな高効率降圧型(バック)レギュレータ
リニア・レギュレータ用の高効率プリレギュレー
オンボード・スイッチング・レギュレータ
反転型コンバータ
(固定出力電圧バージョン)
1
英語版のTI製品についての情報を翻訳したこの資料は、製品の概要を確認する目的で便宜的に提供しているものです。該当する正式な英語版の最新情報は、www.ti.comで閲覧でき、その内
容が常に優先されます。TIでは翻訳の正確性および妥当性につきましては一切保証いたしません。実際の設計などの前には、必ず最新版の英語版をご参照くださいますようお願いいたします。
Sample &
Product
Buy
Folder
®
電 電 力 力 コ コ ン ン バ バ ー ー タ タ 、 、 150kHz 1A降 降 圧 圧 型 型 電 電 圧 圧 レ レ
ギ ギ ュ ュ レ レ ー ー タ タ
の標準値
Q
代 代 表 表 的 的 な な ア ア プ プ リ リ ケ ケ ー ー シ シ ョ ョ ン ン
Tools &
Technical
Software
Documents
3 概 概 要 要
LM2595シリーズのレギュレータは、降圧型(バック)スイッ
チング・レギュレータのすべてのアクティブ機能を内蔵した
モノリシックICで、優れたラインおよび負荷レギュレーショ
ンで1Aの負荷を駆動できます。3.3V、5V、12Vの固定出
力電圧と、可変出力電圧のバージョンがあります。
これらのレギュレータは、必要な外部コンポーネントの数が
最小限で、簡単に使用でき、内部的な周波数補償と固定
周波数発振器が内蔵されています。
LM2595シリーズは 150kHzのスイッチング周波数で動作
するため、低周波数で動作するスイッチング・レギュレータ
に比べて、サイズの小さなフィルタ部品を使用できます。
標準的な5ピンのTO-220パッケージで、いくつかの異なる
リードフォーミング品で供給されるほか、5ピンのTO-263
表面実装パッケージでも供給されます。一般に、出力電
圧が12V未満で、周囲温度が50℃未満なら、ヒートシンク
は必要ありません。
型 型 番 番
TO-263 (5)
LM2595
TO-220 (5)
(1) 提供されているすべてのパッケージについては、巻末の注文情報
を参照してください。
参 参 考 考 資 資 料 料
Support &
Community
LM2595
JAJS853C – MAY 1999 – REVISED MAY 2016
製 製 品 品 情 情 報 報
(1)
パ パ ッ ッ ケ ケ ー ー ジ ジ
本 本 体 体 サ サ イ イ ズ ズ ( ( 公 公 称 称 ) )
10.16mm×8.42mm
14.986mm×10.16mm
English Data Sheet:
SNVS122

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SIMPLE SWITCHER LM2595 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Texas Instruments SIMPLE SWITCHER LM2595

  • Page 1: 特 特 長 長

    参 参 考 考 資 資 料 料 Support & Sample & Product Tools & Technical Community Software Folder Documents LM2595 JAJS853C – MAY 1999 – REVISED MAY 2016 ® 電 電 力 力 コ コ ン ン バ バ ー ー タ タ 、 、 150kHz 1A降 降 圧 圧 型 型 電 電 圧 圧 レ レ LM2595 SIMPLE SWITCHER ギ...
  • Page 2: Table Of Contents

    Removed NEB package from data sheet ..........................Revision A (April 2013) か か ら ら Revision B に に 変 変 更 更 Page • Changed layout of National Semiconductor Data Sheet to TI format .................. Copyright © 1999–2016, Texas Instruments Incorporated...
  • Page 3: Pin Configuration And Functions

    25 V) shuts the regulator down. If this shutdown feature is not needed, the ON/OFF pin can be wired to the ground pin or it can be left open, in either case the regulator is in the ON condition. Copyright © 1999–2016, Texas Instruments Incorporated...
  • Page 4: Specifications

    Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. (2) If Military/Aerospace specified devices are required, please contact the Texas Instruments Sales Office/ Distributors for availability and specifications.
  • Page 5: Electrical Characteristics - 12 V

    (3) External components such as the catch diode, inductor, input and output capacitors, and voltage programming resistors can affect switching regulator system performance. When the LM2595 is used as shown in the Figure 35 test circuit, system performance is shown in the test conditions column. Copyright © 1999–2016, Texas Instruments Incorporated...
  • Page 6: Electrical Characteristics - Adjustable

    (6) Feedback pin removed from output and connected to 12 V for the 3.3-V, 5-V, and adjustable versions, and 15 V for the 12-V version, to force the output transistor switch OFF. (7) V = 40 V. Copyright © 1999–2016, Texas Instruments Incorporated...
  • Page 7: Typical Characteristics

    JAJS853C – MAY 1999 – REVISED MAY 2016 7.10 Typical Characteristics Circuit of Figure 35 Figure 1. Normalized Output Voltage Figure 2. Line Regulation Figure 3. Efficiency Figure 4. Switch Saturation Voltage Figure 5. Switch Current Limit Figure 6. Dropout Voltage Copyright © 1999–2016, Texas Instruments Incorporated...
  • Page 8 Figure 35 Figure 7. Operating Quiescent Current Figure 8. Shutdown Quiescent Current Figure 9. Minimum Operating Supply Voltage Figure 10. ON /OFF Threshold Voltage Figure 11. ON/OFF Pin Current (Sinking) Figure 12. Switching Frequency Copyright © 1999–2016, Texas Instruments Incorporated...
  • Page 9 LM2595 www.ti.com JAJS853C – MAY 1999 – REVISED MAY 2016 Typical Characteristics (continued) Circuit of Figure 35 Figure 13. Feedback Pin Bias Current Copyright © 1999–2016, Texas Instruments Incorporated...
  • Page 10: Overview

    This delayed start-up feature is useful in situations where the input power source is limited in the amount of current it can deliver. It allows the input voltage to rise to a higher voltage before the regulator starts operating. Buck regulators require less input current at higher input voltages. Copyright © 1999–2016, Texas Instruments Incorporated...
  • Page 11 This circuit has an ON/OFF threshold of approximately 13 V. Figure 16. Undervoltage Lockout for Inverting Regulator Copyright © 1999–2016, Texas Instruments Incorporated...
  • Page 12 Figure 17. Undervoltage Lockout With Hysteresis For Inverting Regulator – 220-μF, 25-V tantalum Sprague 595D 120-μF, 50-V electrolytic Panasonic HFQ – 22-μF, 20-V tantalum Sprague 595D 120-μF, 25-V electrolytic Panasonic HFQ Figure 18. Inverting −5-V Regulator With Delayed Start-Up Copyright © 1999–2016, Texas Instruments Incorporated...
  • Page 13 Two different shutdown methods for inverting regulators are shown in Figure 20 Figure Figure 20. Inverting Regulator Ground Referenced Shutdown Copyright © 1999–2016, Texas Instruments Incorporated...
  • Page 14: Device Functional Modes

    If desired, a series RC could be placed in parallel with the inductor to dampen the ringing. Before Ripple Filter 5 mV/div Alter Ripple Filter 2 µsec/div Figure 22. Post Ripple Filter Waveform Copyright © 1999–2016, Texas Instruments Incorporated...
  • Page 15: Application And Implementation

    As with aluminum electrolytic capacitors, the RMS ripple current rating must be sized to the load current. Copyright © 1999–2016, Texas Instruments Incorporated...
  • Page 16 3X at −25°C and as much as 10X at −40°C (see Figure 25). Solid tantalum capacitors have a much better ESR specifications for cold temperatures and are recommended for temperatures below −25°C. Copyright © 1999–2016, Texas Instruments Incorporated...
  • Page 17 EMI problems. Ultra-fast recovery diodes typically have reverse recovery times of 50 ns or less. Rectifiers such as the 1N5400 series are much too slow and must not be used. Figure 25. Capacitor ESR Change vs Temperature Copyright © 1999–2016, Texas Instruments Incorporated...
  • Page 18 This peak-to-peak inductor ripple current percentage is not fixed, but is allowed to change as different design load currents are selected. (See Figure 26.) Figure 26. ΔI , Peak-to-Peak Inductor Ripple Current (as a Percentage of the Load Current) vs Load Current Copyright © 1999–2016, Texas Instruments Incorporated...
  • Page 19 The inductor manufacturer's data sheets include current and energy limits to avoid inductor saturation. For continuous mode operation, see the inductor selection graphs in Figure 27 through Figure 30 Figure 27. LM2595 3.3-V Figure 28. LM2595 5-V Copyright © 1999–2016, Texas Instruments Incorporated...
  • Page 20 The output voltage of a switching power supply operating in the continuous mode will contain a sawtooth ripple voltage at the switcher frequency, and may also contain short voltage spikes at the peaks of the sawtooth waveform. Copyright © 1999–2016, Texas Instruments Incorporated...
  • Page 21 (see Inductor Selection). These curves are only correct for continuous mode operation, and only if the inductor selection guides are used to select the inductor value Copyright © 1999–2016, Texas Instruments Incorporated...
  • Page 22 This discussion on open core inductors is not to frighten users, but to alert them on what kind of problems to watch out for. Open core bobbin or stick inductors are an inexpensive, simple way of making a compact, efficient inductor, and they are used by the millions in many different applications. Copyright © 1999–2016, Texas Instruments Incorporated...
  • Page 23 330 μF. 2. To simplify the capacitor selection procedure, see Table 5 for quick design component selection. This table contains different input voltages, output voltages, and load currents, and lists various inductors and output Copyright © 1999–2016, Texas Instruments Incorporated...
  • Page 24 Exercise caution if solid tantalum capacitors are used (see Input Capacitor (C on input capacitor). The tantalum capacitor voltage rating must be 2 times the maximum input voltage and TI recommends that they be surge current tested by the manufacturer. Copyright © 1999–2016, Texas Instruments Incorporated...
  • Page 25 100/16 100/20 100/25 100/25 68/20 68/25 220/25 220/25 68/20 120/20 180/35 120/25 68/20 120/20 82/25 82/25 68/20 100/20 82/25 82/25 68/20 68/25 180/25 180/25 68/20 120/20 82/25 82/25 68/20 100/20 56/25 56/25 68/20 68/25 Copyright © 1999–2016, Texas Instruments Incorporated...
  • Page 26 D1 – 3-A, 40-V Schottky rectifier, 1N5822 L1 – 100-μH, L29 – 1-kΩ, 1% – See Feedforward Capacitor (C Figure 35. Adjustable Output Voltage Versions 9.2.2.1 Design Requirements Table 6 lists the parameters for this design example. Copyright © 1999–2016, Texas Instruments Incorporated...
  • Page 27 5. Select an appropriate inductor from the manufacturers' part numbers listed in Table From the table in Table 3, place line L29, and select an inductor part number from the list of manufacturers' part numbers. Copyright © 1999–2016, Texas Instruments Incorporated...
  • Page 28 50 ns or less. Rectifiers such as the 1N4001 series must not be used because they are too slow. The 3-A diode rating is more than adequate and will not be overstressed even for a shorted output. Copyright © 1999–2016, Texas Instruments Incorporated...
  • Page 29 1.5 nF 120/25 120/25 1.5 nF 68/20 120/20 1.5 nF 120/25 120/25 1.5 nF 68/20 100/20 1.5 nF 82/35 82/35 1 nF 33/25 33/35 220 pF 82/50 82/50 1 nF 10/35 33/35 220 pF Copyright © 1999–2016, Texas Instruments Incorporated...
  • Page 30 C: Output ripple voltage, 50 mV/div. B: 250-mA to 750-mA load pulse Horizontal time base: 2 µs/div. Horizontal time base: 200 µs/div. Figure 36. Discontinuous Mode Switching Waveforms Figure 37. Load Transient Response for Discontinuous Mode Copyright © 1999–2016, Texas Instruments Incorporated...
  • Page 31: Power Supply Recommendations

    – 150-μF, 50-V aluminium electrolytic Nichicon, PL series – 120-μF, 25-V aluminium electrolytic Nichicon, PL series D1 – 3-A, 40-V Schottky rectifier, 1N5822 L1 – 68-μH, L30, Schottky, through-hole Figure 38. Typical Through-Hole PCB Layout, Fixed Output (1X Size) Copyright © 1999–2016, Texas Instruments Incorporated...
  • Page 32: Changed Layout Of National Semiconductor Data Sheet To Ti Format

    (One exception to this is the output (switch) pin, which must not have large areas of copper.) Large areas of copper provide the best transfer of heat (lower thermal resistance) to the surrounding air, and moving air lowers the thermal resistance even further. Copyright © 1999–2016, Texas Instruments Incorporated...
  • Page 33 CIRCUIT DATA FOR TEMPERATURE RISE CURVE TO-263 PACKAGE (KTT) Capacitors Surface-mount tantalum, molded D size Inductor Surface-mount, 68-μH, Schottky Diode Surface-mount, 3-A, 40-V, Schottky 3 square inches, single-sided 2-oz copper (0.0028″) Figure 41. Junction Temperature Rise, TO-263 Copyright © 1999–2016, Texas Instruments Incorporated...
  • Page 34: コミュニティ・リソース

    12.2 商 商 標 標 E2E is a trademark of Texas Instruments. SIMPLE SWITCHER is a registered trademark of Texas Instruments. All other trademarks are the property of their respective owners. 12.3 静 静 電 電 気 気 放 放 電 電 に に 関 関 す す る る 注 注 意 意 事 事 項 項...
  • Page 35 PACKAGE OPTION ADDENDUM www.ti.com 6-Feb-2020 PACKAGING INFORMATION Orderable Device Status Package Type Package Pins Package Eco Plan Lead/Ball Finish MSL Peak Temp Op Temp (°C) Device Marking Samples Drawing (4/5) LM2595S-12 NRND DDPAK/ Call TI Call TI -40 to 125 LM2595S TO-263 -12 P+...
  • Page 36 PACKAGE OPTION ADDENDUM www.ti.com 6-Feb-2020 The marketing status values are defined as follows: ACTIVE: Product device recommended for new designs. LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect. NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design. PREVIEW: Device has been announced but is not in production.
  • Page 37 PACKAGE MATERIALS INFORMATION www.ti.com 29-Sep-2019 TAPE AND REEL INFORMATION *All dimensions are nominal Device Package Package Pins Reel Reel Pin1 Type Drawing Diameter Width (mm) (mm) (mm) (mm) (mm) Quadrant (mm) W1 (mm) LM2595SX-12/NOPB DDPAK/ 330.0 24.4 10.75 14.85 16.0 24.0 TO-263 LM2595SX-3.3/NOPB...
  • Page 38 PACKAGE MATERIALS INFORMATION www.ti.com 29-Sep-2019 *All dimensions are nominal Device Package Type Package Drawing Pins Length (mm) Width (mm) Height (mm) LM2595SX-12/NOPB DDPAK/TO-263 367.0 367.0 45.0 LM2595SX-3.3/NOPB DDPAK/TO-263 367.0 367.0 45.0 LM2595SX-5.0/NOPB DDPAK/TO-263 367.0 367.0 45.0 LM2595SX-ADJ DDPAK/TO-263 367.0 367.0 45.0 LM2595SX-ADJ/NOPB DDPAK/TO-263...
  • Page 39 MECHANICAL DATA NEB0005B www.ti.com...
  • Page 40 MECHANICAL DATA NDH0005D www.ti.com...
  • Page 41 MECHANICAL DATA KTT0005B TS5B (Rev D) BOTTOM SIDE OF PACKAGE www.ti.com...
  • Page 42 る適合性の黙示保証、第三者の知的財産権の非侵害保証を含むいかなる保証も、明示的または黙示的にかかわらず拒否します。 これらのリソースは、TI 製品を使用する設計の経験を積んだ開発者への提供を意図したものです。(1) お客様のアプリケーションに適した TI 製品の選 定、(2) お客様のアプリケーションの設計、検証、試験、(3) お客様のアプリケーションが適用される各種規格や、その他のあらゆる安全性、セキュリ ティ、またはその他の要件を満たしていることを確実にする責任を、お客様のみが単独で負うものとします。上記の各種リソースは、予告なく変更される 可能性があります。これらのリソースは、リソースで説明されている TI 製品を使用するアプリケーションの開発の目的でのみ、TI はその使用をお客様に 許諾します。これらのリソースに関して、他の目的で複製することや掲載することは禁止されています。TI や第三者の知的財産権のライセンスが付与さ れている訳ではありません。お客様は、これらのリソースを自身で使用した結果発生するあらゆる申し立て、損害、費用、損失、責任について、TI および その代理人を完全に補償するものとし、TI は一切の責任を拒否します。 TI の製品は、TI の販売条件(www.tij.co.jp/ja-jp/legal/termsofsale.html)、または やかかる TI 製品の関連資料などのいずれかを通じて提供 ti.com する適用可能な条項の下で提供されています。TI がこれらのリソースを提供することは、適用されるTI の保証または他の保証の放棄の拡大や変更を意 味するものではありません。IMPORTANT NOTICE Copyright © 2020, Texas Instruments Incorporated 日本語版 日本テキサス・インスツルメンツ株式会社...
