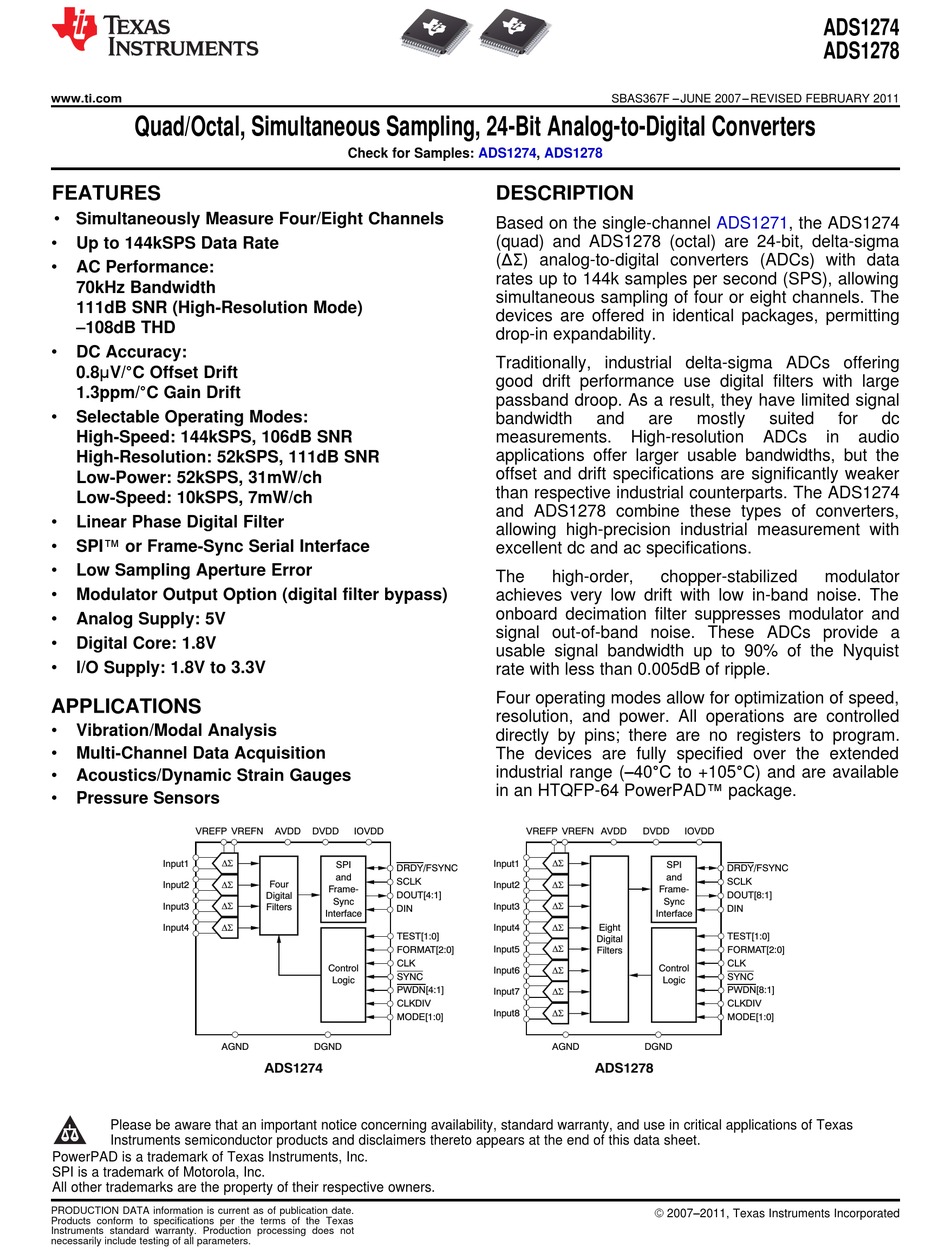

Quad/Octal, Simultaneous Sampling, 24-Bit Analog-to-Digital Converters
FEATURES
1
• Simultaneously Measure Four/Eight Channels
234
Up to 144kSPS Data Rate
AC Performance:
70kHz Bandwidth
111dB SNR (High-Resolution Mode)
–108dB THD
DC Accuracy:
0.8μV/°C Offset Drift
1.3ppm/°C Gain Drift
Selectable Operating Modes:
High-Speed: 144kSPS, 106dB SNR
High-Resolution: 52kSPS, 111dB SNR
Low-Power: 52kSPS, 31mW/ch
Low-Speed: 10kSPS, 7mW/ch
Linear Phase Digital Filter
SPI™ or Frame-Sync Serial Interface
Low Sampling Aperture Error
Modulator Output Option (digital filter bypass)
Analog Supply: 5V
Digital Core: 1.8V
I/O Supply: 1.8V to 3.3V
APPLICATIONS
Vibration/Modal Analysis
Multi-Channel Data Acquisition
Acoustics/Dynamic Strain Gauges
Pressure Sensors
VREFP VREFN
Input1
DS
Input2
DS
Input3
DS
Input4
DS
AGND
1
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas
Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
PowerPAD is a trademark of Texas Instruments, Inc.
2
SPI is a trademark of Motorola, Inc.
3
All other trademarks are the property of their respective owners.
4
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.
Check for Samples: ADS1274,
AVDD
DVDD
IOVDD
SPI
DRDY/FSYNC
and
SCLK
Four
Frame-
Digital
DOUT[4:1]
Sync
Filters
DIN
Interface
TEST[1:0]
FORMAT[2:0]
CLK
Control
SYNC
Logic
PWDN[4:1]
CLKDIV
MODE[1:0]
DGND
ADS1274
SBAS367F – JUNE 2007 – REVISED FEBRUARY 2011
ADS1278
DESCRIPTION
Based on the single-channel ADS1271, the ADS1274
(quad) and ADS1278 (octal) are 24-bit, delta-sigma
(ΔΣ) analog-to-digital converters (ADCs) with data
rates up to 144k samples per second (SPS), allowing
simultaneous sampling of four or eight channels. The
devices are offered in identical packages, permitting
drop-in expandability.
Traditionally, industrial delta-sigma ADCs offering
good drift performance use digital filters with large
passband droop. As a result, they have limited signal
bandwidth
and
are
measurements.
High-resolution
applications offer larger usable bandwidths, but the
offset and drift specifications are significantly weaker
than respective industrial counterparts. The ADS1274
and ADS1278 combine these types of converters,
allowing high-precision industrial measurement with
excellent dc and ac specifications.
The
high-order,
chopper-stabilized
achieves very low drift with low in-band noise. The
onboard decimation filter suppresses modulator and
signal out-of-band noise. These ADCs provide a
usable signal bandwidth up to 90% of the Nyquist
rate with less than 0.005dB of ripple.
Four operating modes allow for optimization of speed,
resolution, and power. All operations are controlled
directly by pins; there are no registers to program.
The devices are fully specified over the extended
industrial range (–40°C to +105°C) and are available
in an HTQFP-64 PowerPAD™ package.
VREFP VREFN AVDD
DVDD
Input1
DS
SPI
and
Input2
DS
Frame-
Sync
Input3
DS
Interface
Input4
Eight
DS
Digital
Input5
DS
Filters
Control
Input6
DS
Logic
Input7
DS
Input8
DS
AGND
DGND
ADS1278
© 2007–2011, Texas Instruments Incorporated
