- Page 1 7-Port USB 3.0 Metal Hub with Surge Protection Product Manual Coolgear, Inc. Version 1.1 September 2017 Model Number: CG-7U3DS www.coolgear.com...
- Page 2 Coolgear New Manual Format About this document This product manual outlines installation and features of the CG-7U3DS 7-Port USB 3.0 Metal Hub with Surge Protection. Scope The scope of this manual is to give the user of the product an understanding of its use with detailed diagrams and verbiage.
- Page 3 CG-7U3DS – Product Manual Table of Contents 1. Introduction ......................4 Features ........................4 Connector Layout ....................5 Hardware Installation ..................... 5 Checking the Hub Installation ................. 6 Environmental Specifications ................. 6 2. Notes, Tips, Warnings, and Safety ................. 7 3.

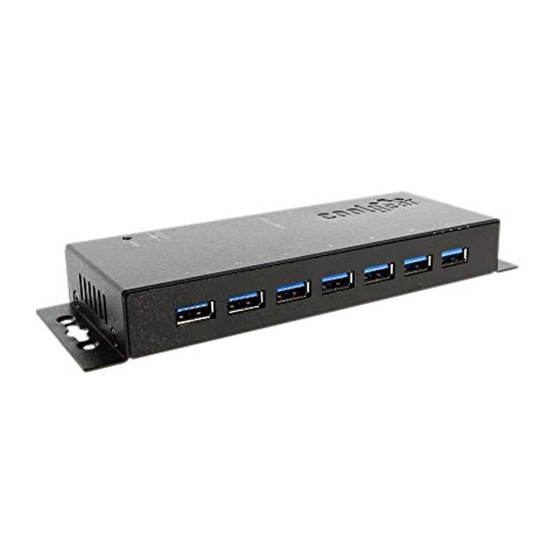

- Page 4 CG-7U3DS – Product Manual 1. Introduction The CG-7U3DS is a 7-Port USB 3.0 Hub that complies with the Universal Serial Bus 3.0 (USB 3.0) Specifications Revision 1.0 and performs at up to 5Gbps Super-Speed. The Hub is DIN-Rail mountable and supports DC-Jack for +12V DC power input.
- Page 5 CG-7U3DS – Product Manual 1.2 Connector Layout Figure 1 USB 3.0 Upstream Port USB 3.0 Downstream Port Self Power Input Type-B connector from There are 7 Type-A This 2-pin (one pin for upstream USB 3.0 port. It is connectors for USB 3.0,...
- Page 6 CG-7U3DS – Product Manual 4. Connect the USB Devices to the downstream ports of this hub. 5. Mount your hub on the wall or DIN RAIL if required. 1.4 Checking the Hub Installation To check the USB hub installation in Windows device manager, please follow the following steps: 1.
- Page 7 CG-7U3DS – Product Manual 2. Notes, Tips, Warnings, and Safety Note Please make sure the polarity of the input power should be correctly Warning matched with the terminal block pins to function properly. • Read the entire Product Manual before implementing this product for your application.
- Page 8 © 2017 Coolgear, Inc. All Rights Reserved. All products and accompanying digital documentation including images are the property and / or trademarks of Coolgear Inc. Coolgear Inc. are continuously improving upon its products. Product specifications are subject to change without notice.
