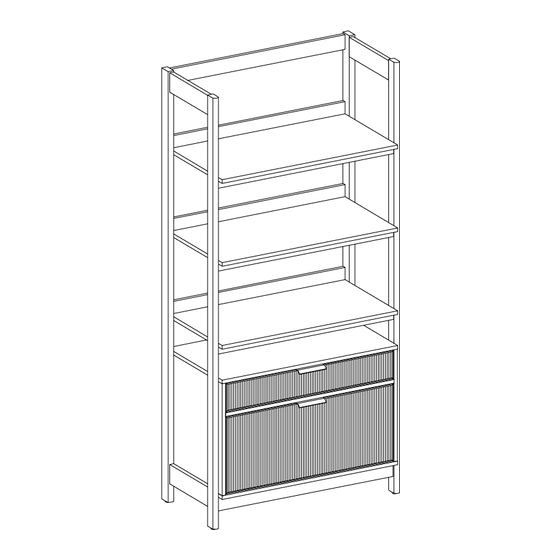

Holmes wide bookcase
SKU# WEHOL41OS3
For Residential Use Only
Please visit our website for the most current instructions, assembly tips, report damage,or request parts. www.walkeredison.com
Revised 27/03/2024 (D)
©
1
1
Copyright
2024 by Walker Edison Furniture Co., LLC. All rights reserved.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Holmes WEHOL41OS3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Walker Edison Holmes WEHOL41OS3

Summary of Contents for Walker Edison Holmes WEHOL41OS3

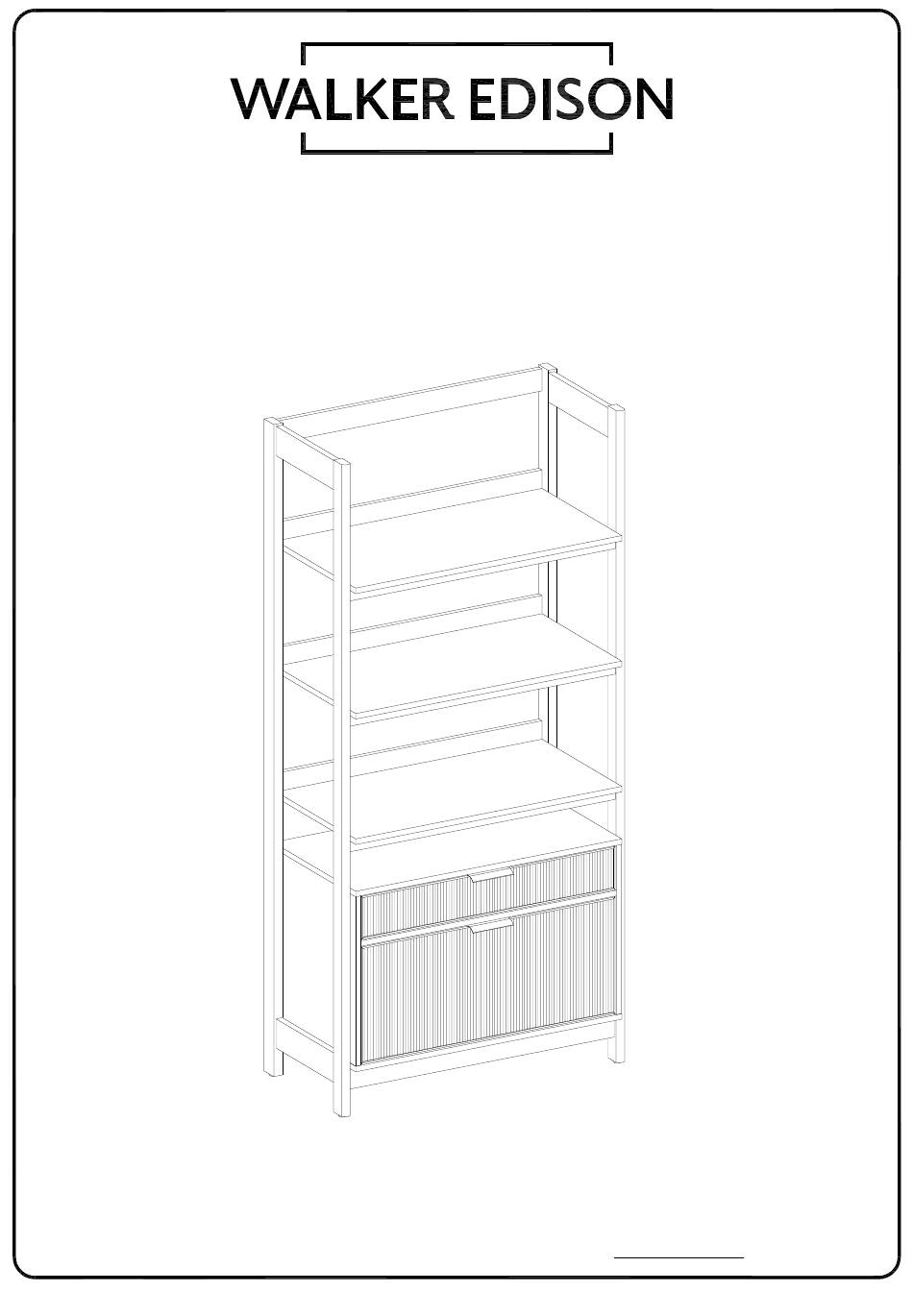

  • Page 1 Holmes wide bookcase SKU# WEHOL41OS3 For Residential Use Only Please visit our website for the most current instructions, assembly tips, report damage,or request parts. www.walkeredison.com Revised 27/03/2024 (D) © Copyright 2024 by Walker Edison Furniture Co., LLC. All rights reserved.
  • Page 2 You can cause cracking or damage to the material and easily strip the hardware. If you choose to use a power tool, your product will no longer be covered under Walker Edison’s warranty. Glue is provided to secure wood dowels in place When inserting dowels, locate the appropriate hole, place a small amount of glue in the hole, and then insert the dowel.

  • Page 3: Parts List

    Parts List Part Number Description Quantity Left Panel Right Panel Trim Panels Shelf Panel Back Shelf Trim Top Cabinet Panel Bottom Cabinet Panel Left Cabinet Panel Right Cabinet Panel Support Panel Back Panel Upper Drawer Back Panel Upper Drawer Left Panel Upper Drawer Right Panel Bottom Drawer Panel Drawer Support Panel...

  • Page 4: Hardware List

    Hardware List Part Size Name Quantity 8x30mm Wooden dowel 6x30mm Wooden dowel 6x35mm Cam bolt 15x11mm Cam lock 15x9mm Cam lock 6x50mm Bolt 6x30mm Bolt 6x15mm Bolt L-shape bracket Hex Key M4x57mm Screw 4x38mm Drawer pull 3x12mm Screw...
  • Page 5 Hardware List Part Size Name Quantity Plastic wedge 3x17mm Screw 10" 2 Set Drawer Glide* * Note: This piece comes preassembled for shipping purposes and must be disassembled to complete the desk assembly. 30mm Sticker 4x15mm Screw 4x25mm Screw Plastic strap Wall Anchor Glue tube The hardware quantities listed above are required for proper assembly.
  • Page 6 Step 1 It’s a great day to build a bookcase! Let’s get started. Beginning with your Right Cabinet Panel (9), insert Wooden Dowels (A) into dowel holes. Then, Screw in the Cam Bolts (C). The provided glue is to secure wood dowels in place. When first inserting dowels, locate the appropriate hole for the dowel, place a small amount of glue in the hole and insert the dowel.
  • Page 7 Step 2 Using a screwdriver, screw Cam Bolts (C) into the Left Cabinet Panel (8). Then, insert Wooden Dowels (A) into place.
  • Page 8 Step 3 From the Drawer Glides (R), you will detach the Drawer Members from the Cabinet Members. You can do so by pushing up on the plastic lever. Cabinet member Cabinet member Drawer member Drawer member...
  • Page 9 Step 4 Attach the Cabinet Members of the Drawer Glides (R) to the Left Cabinet Panel (8) and the Left Cabinet Panel (9). Use the graphic as a guide to ensure proper placement.
  • Page 10 Step 5 Insert Wooden Dowels (A) into the Support Panel (10) dowel holes.
  • Page 11 Step 6 Attach the Support Panel (10) to the Left Cabinet Panel (8) using a Cam Lock (D). Secure with a screwdriver. Cam Locks Cam Locks help securely join two pieces together. Follow these easy steps. 1: Insert Cam Bolt 2: Fit the proper holes on the 3: On the back of the Cam Lock into bolt holes on...
  • Page 12 Step 7 Repeat for the other side. Attach Support Panel (10) to the Right Cabinet Panel (9) using a Cam Lock (D). Secure with a screwdriver.
  • Page 13 Step 8 Insert Cam Locks (C) into the Top Cabinet Panel (6) and secure with a screwdriver.
  • Page 14 Step 9 Attach the Top Cabinet Panel (6) to the Left Cabinet Panel (8) and the Right Cabinet Panel (9) using Cam Locks (D). Secure with a screwdriver.
  • Page 15 Step 10 Unfold the Back Panel (11) and slide into place using the grooves. Ensure that it is secure in the bottom groove.
  • Page 16 Step 11 Attach the Bottom Cabinet Panel (7) to the Left Cabinet Panel (8) and the Right Cabinet Panel (9) using 50mm Bolts (F).
  • Page 17 Step 12 Insert Wooden Dowels (A) into the Back Shelf Trim x3 (5) and Front Shelf Trim x3 (3).
  • Page 18 Step 13 Next, attach the L Shape Brackets (J) to the Shelf Panels x3 (4) using 15mm Bolts (H).
  • Page 19 Step 14 Attach the Back Shelf Trim (5) to all three Shelf Panels (4) using 38mm Screws (L).
  • Page 20 Step 15 Now you will screw the Cam Bolts (C) into the Left Panel (1) and Right Panel (2).
  • Page 21 Step 16 Attach the Shelf Panels x3 (4) to the Left Panel (1). The L Shape Bracket (J) will attach to pre-drilled holes using 15mm Bolts (H). The Back Shelf Trim (5) and one of the Trim Panels (3) will attach using Cam Locks (D). Secure with screwdriver.
  • Page 22 Step 17 Let’s attach the Cabinet. The Left Cabinet Panel (8) will screw into the Left Panel (1) using 30mm Bolts (G). Then, attach your remaining two Trim Panels (3) using Cam Locks (D).
  • Page 23 Step 18 Place the Right Panel (2) over your built pieces and repeat the same steps for this side. Attach the three Trim Panels (3), as well as the Back Shelf Trim (5) pieces using Cam Locks (D) and securing with a screwdriver. Then, attach the L Shape Bracket ( J ) using 15mm Bolts (H).
  • Page 24 Step 19 Attach the front of the cabinet to the Left and Right Panels by using four 30mm Bolts (G).
  • Page 25 Step 20 Insert Plastic Wedges (P) into Back Panel (11) and attach with 17mm Bolt (Q)
  • Page 26 Step 21 Insert Wooden Dowels (B) into the dowel holes on the Lower Drawer Left Panel (19), Lower Drawer Right Panel (20), and Lower Drawer Back Panel (18).
  • Page 27 Step 22 Attach Drawer Member of the Drawer Glides (R) to the Lower Drawer Left Panel (19), Lower Drawer Right Panel (20), Upper Drawer Left Panel (13), & Upper Drawer Right Panel (14) using 12mm Screws (N).
  • Page 28 Step 23 Attach the Upper Drawer Left Panel (13) and the Upper Drawer Right Panel (14) to the Upper Drawer Back Panel (12) using 38mm Screws (L). Then attach the Lower Drawer Left Panel (19) and Lower Drawer Right Panel (20) to the Lower Drawer Back Panel (18).
  • Page 29 Step 24 Slide the Bottom Drawer Panels x2 (15) into the guides on both drawer boxes.
  • Page 30 Step 25 Attach the four support panels (16) to the drawer boxes using 38mm Screws (L)
  • Page 31 Step 26 Using a screwdriver, screw Cam Bolts (C) into place on the Upper Drawer Front Panel (17) and the Lower Drawer Front Panel (21). Next, attach the Drawer Pulls (M) using the 12mm Screws (N).
  • Page 32 Step 27 Attach the Upper Drawer Front Panel (17) to the Upper Drawer Box using Cam Locks (E). You will secure the Cam Locks on the inside of the drawer, as well as the bottom of the drawer.
  • Page 33 Step 28 Now, attach the Lower Drawer Front Panel (21) to the Lower Drawer Box using Cam Locks (E). You will secure the Cam Locks on the inside of the drawer, as well as the bottom of the drawer.
  • Page 34 Step 29 Use Stickers (S) to cover visible Cam Locks.
  • Page 35 Step 30 Insert the Lower Drawer into place by lining up the cabinet member and drawer member pieces of your Drawer Glides (R). Reinserting your Cabinet Glides together Line up the Drawer Member so it is inside the guides of the Cabinet Member.
  • Page 36 Step 31 Insert the Upper Drawer into place by lining up the cabinet member and drawer member pieces of your Drawer Glides (R).
  • Page 37 Step 32 Use the adjustable feet to ensure your bookcase is level.
  • Page 38 Step 33 Great work, you’re in the home stretch. Let’s secure your bookcase to the wall. Attach the Plastic Strip (W) to your bookcase using the 12mm Screw (T).
  • Page 39 Step 34 Insert the Wall Anchor (X) into the wall. Next, secure the Plastic Strip (W) to the wall using the 25mm Screw (V). Warning Serious or fatal injuries can occur from furniture tipping over. To prevent the furniture from tipping over we recommend that it is permanently fixed to the wall.

  • Page 40: Final Assembly

    Final Assembly Congratulations on your new piece of furniture! We would love to hear about it and see it. Please leave us a review or post a picture with #mywalkeredisonhome...
  • Page 41 Assembling furniture can be tricky sometimes. Our customer service team, located in Utah, is here for product information, help assembling a product, or for any other customer support issue Call us at 801-433-3008 Email us at service@walkeredison.com Visit our Customer Service website at walkeredison.com/pages/customer-service We are available to help Monday -Thursday 8am-5pm, Friday 8am-3pm MST...
