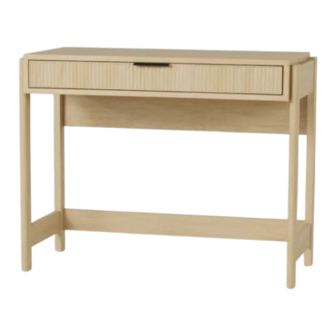

Walker Edison Holmes WEHOL42OS1 Manual

Writing desk
Hide thumbs

Advertisement

Quick Links

Download this manual

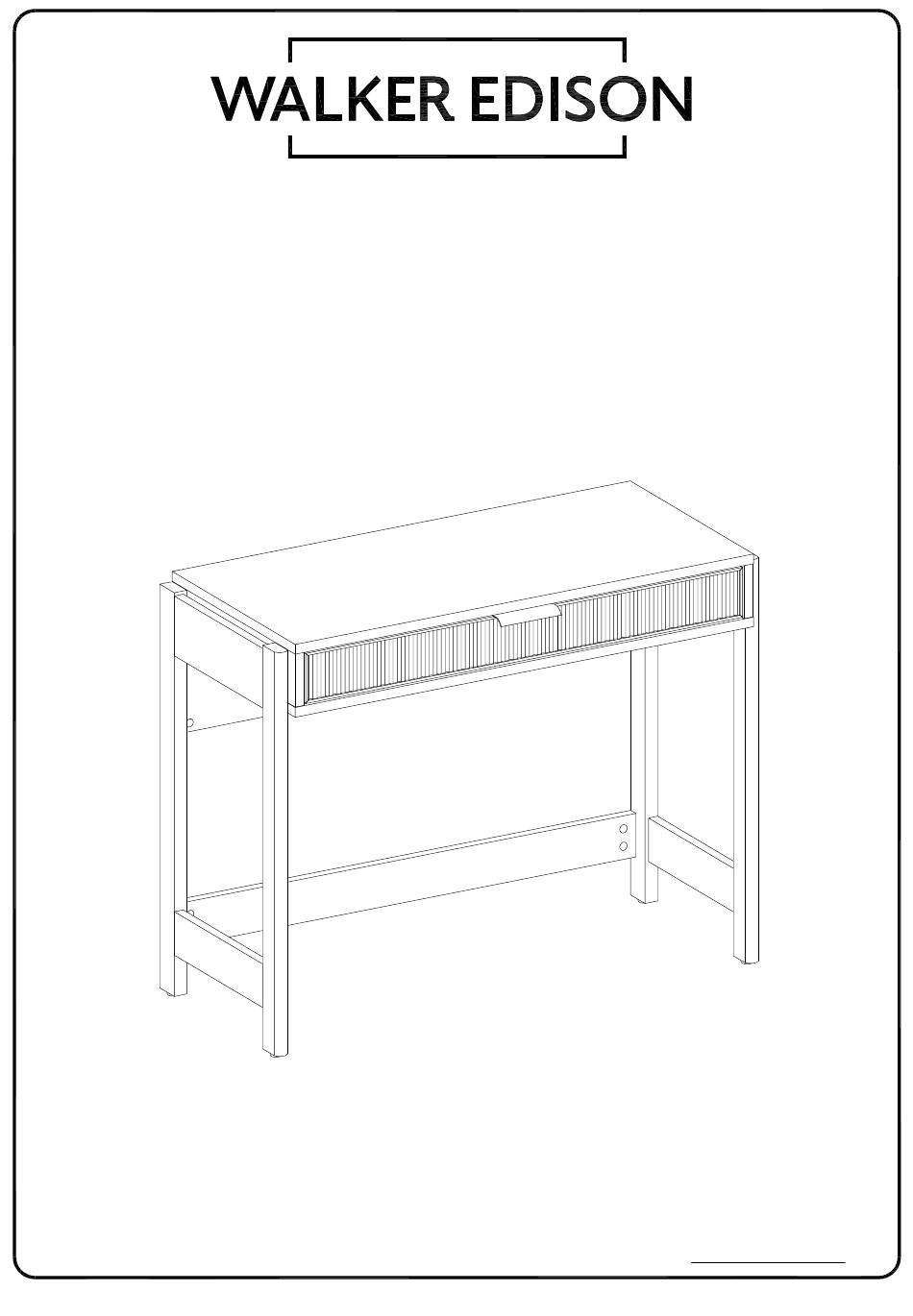

TM
Holmes Writing Desk
SKU# WEHOL42OS1
For Residential Use Only
Please visit our website for the most current instructions, assembly tips, report damage,or request parts. www.walkeredison.com
Copyright
2024 by Walker Edison Furniture Co., LLC. All rights reserved. Revised 21/03/2024 (I)
©
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Holmes WEHOL42OS1 and is the answer not in the manual?

Questions and answers

Related Manuals for Walker Edison Holmes WEHOL42OS1

Summary of Contents for Walker Edison Holmes WEHOL42OS1

  • Page 1 Holmes Writing Desk SKU# WEHOL42OS1 For Residential Use Only Please visit our website for the most current instructions, assembly tips, report damage,or request parts. www.walkeredison.com Copyright 2024 by Walker Edison Furniture Co., LLC. All rights reserved. Revised 21/03/2024 (I) ©...
  • Page 2 You can cause cracking or damage to the material and easily strip the hardware. If you choose to use a power tool, your product will no longer be covered under Walker Edison’s warranty. Glue is provided to secure wood dowels in place When inserting dowels, locate the appropriate hole, place a small amount of glue in the hole, and then insert the dowel.

  • Page 3: Parts List

    Parts List Description Quantity Part Number Desk Box Left Panel Right Panel Back panel Support Panel Left Drawer Panel Right Drawer Panel Back Drawer Panel Bottom Drawer Panel Cross Bar Front Drawer Panel...

  • Page 4: Hardware List

    Hardware List Part Size Name Quantity 8x30mm Wooden dowel 6x35mm Cam bolt Cam lock 15x11mm M6x30mm Bolt Drawer Pull Screw 3x12mm Hex key M4x57mm 30mm Sticker Glue tube 15x9mm Cam lock Screw 4x32mm The hardware quantities listed above are required for proper assembly. Extra hardware pieces may be included.
  • Page 5 Step 1 Attach Cam Bolts (B) to the Left Panel (2) and the Right Panel (3).
  • Page 6 Step 2 Insert Wooden Dowels (A) into the dowel holes on the Back Panel (4) and the Support Panel (5).
  • Page 7 Step 3 Using a screwdriver, attach Cam Bolts (B) to the Desk Box (1).
  • Page 8 Step 4 Attach the Back Panel (4) to the underside of the Desk Box (1) using the Cam Locks (C). Secure with a screwdriver. Cam Locks Cam Locks help securely join two pieces together. Follow these easy steps. 1: Insert Cam Bolt 2: Fit the proper holes on the 3: On the back of the Cam Lock into bolt holes on...
  • Page 9 Step 5 Attach the Left Panel (2) to the Desk Box (1), Back Panel (4), & Support Panel (5) using Cam Locks (C). Then attach the front of the Desk Box (1) to the Left Panel (2) using 30mm Bolts (D). Secure with the provided Hex Key (G).
  • Page 10 Step 6 Repeat the process for the other side. Attach the Right Panel (3) to the Desk Box (1), Back Panel (4), & Support Panel (5) using Cam Locks (C). Then, attach the front of the Desk Box (1) to the Right Panel (3) using 30mm Bolts (D).
  • Page 11 Step 7 Secure the Right Panel (3) and Left Panel (2) to the back of the Desk Box (1) using 30mm Bolts (D).
  • Page 12 Step 8 Screw Cam Bolts (B) into the Drawer Front Panel (11). Then attach the Drawer Pull (E) using 12mm Screws (F).
  • Page 13 Step 9 Attach the Left Drawer Panel (6) and Right Drawer Panel (7) to the Back Drawer Panel (8) using four 32mm Screws (K). Note: Ensure that the grooves are lined up across the three pieces.
  • Page 14 Step 10 Slide the Bottom Drawer Panel (9) into place using the grooves. Then attach the two Cross Bars (10) under the panel. Secure using 32mm Screws (K).
  • Page 15 Step 11 Attach the Front Drawer Panel (11) to the rest of the drawer box. Secure using Cam Locks (J).
  • Page 16 Step 12 Cover any visible Cam Locks with Stickers (H).
  • Page 17 Step 13 Lastly, insert the drawer back into the Desk Box (1). Line up the Drawer member with the Cabinet Member, give it a push, that’s it! Reinserting your Cabinet Glides together Line up the Drawer Member so it is inside the guides of the Cabinet Member.
  • Page 18 Step 14 Use the adjustable feet to create a level writing surface and you’re set! Enjoy your new desk!

  • Page 19: Final Assembly

    Final Assembly Congratulations on your new piece of furniture! We would love to hear about it and see it. Please leave us a review or post a picture with #mywalkeredisonhome...
  • Page 20 Assembling furniture can be tricky sometimes. Our customer service team, located in Utah, is here for product information, help assembling a product, or for any other customer support issue Call us at 801-433-3008 Email us at service@walkeredison.com Visit our Customer Service website at walkeredison.com/pages/customer-service We are available to help Monday -Thursday 8am-5pm, Friday 8am-3pm MST...

This manual is also suitable for:

Holmes wehol42os1co0
