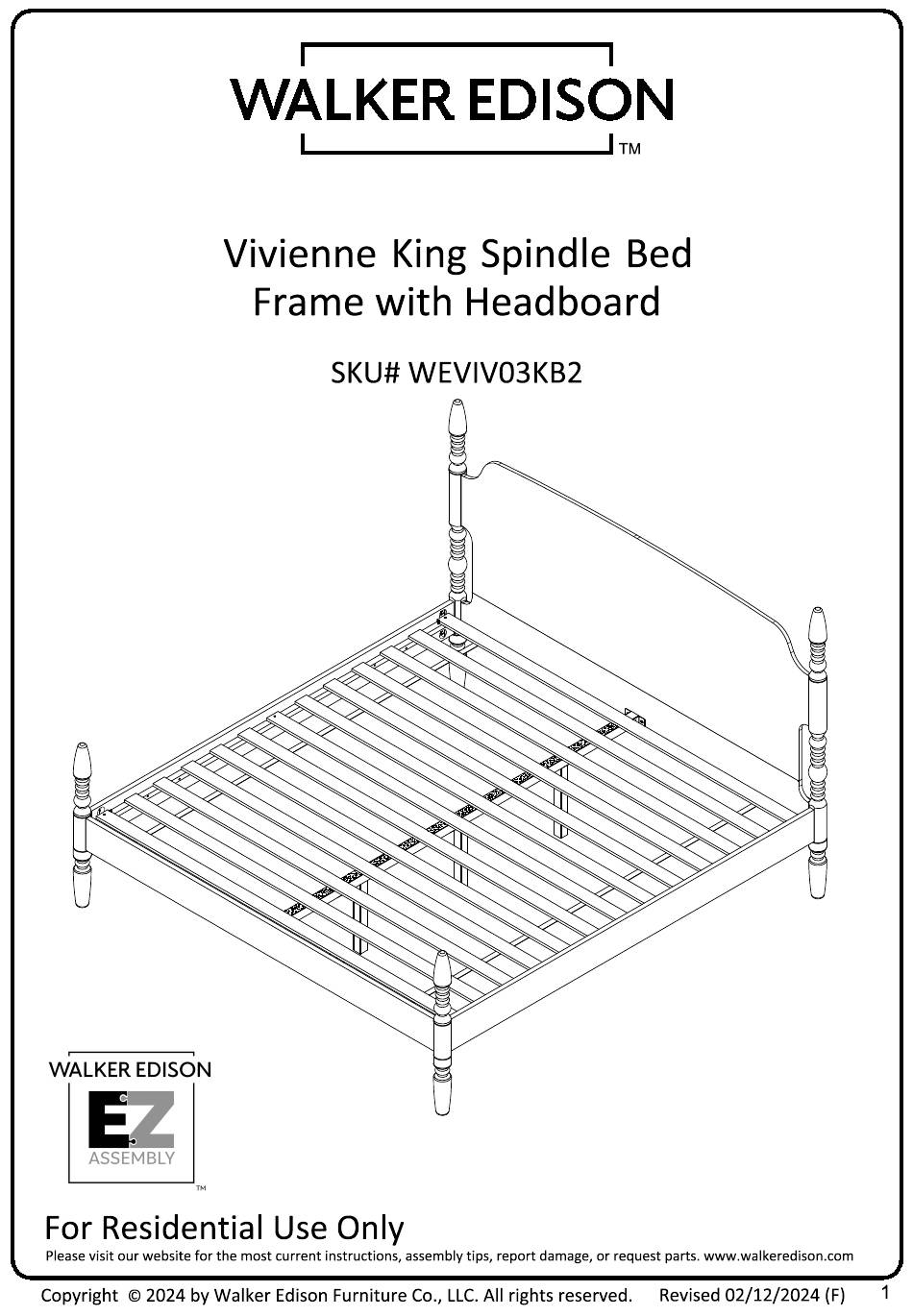

Revised 02/12/2024 (F)
SKU# WEVIV03KB2
For Residential Use Only
Please visit our website for the most current instructions, assembly tips, report damage, or request parts. www.walkeredison.com
Copyright
©
2024 by Walker Edison Furniture Co., LLC. All rights reserved.
1
TM
Vivienne King Spindle Bed
Frame with Headboard
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Walker Edison Vivienne WEVIV03KB2
Summary of Contents for Walker Edison Vivienne WEVIV03KB2
- Page 2 Say Goodbye to Frustration! 60 Minutes or Less to Build No Stress Required...
-
Page 3: Parts List
Parts List Part Description Quantity Number Headboard Headboard Support Rail Left Headboard Post Right Headboard Post Post Top Legs Side Rails Bottom Rail Center Support Rail Middle Support Legs Bed Slats... -
Page 4: Hardware List
Hardware List Part Size Name Quantity 8x40mm Wooden dowel 8x30mm Wooden dowel 5/16"x20mm Bolt 5/16"x16x1.2mm Washer Hex Key 5/16"x83mm Bolt 5/16" Half - moon washer 5/16" 12x90 Wrench 105x40x32mm U Bracket 3x15mm Screw 4x25mm Screw The hardware quantities listed above are required for proper assembly. Extra hardware pieces may be included. - Page 5 Step 1 Let’s get started! Lay the Headboard (1) on its front and insert wood dowels (A) into the holes on the bottom. Wood Dowels Dowels are essential in furniture assembly for creating strong, precise connections. They ensure structural integrity, prevent shifting, and simplify alignment, resulting in sturdier, longer-lasting furniture.
- Page 6 Step 2 Next, attach the Headboard Support Rail (2) to the Headboard (1) by the dowels. To keep your product looking its best and scratch-free, try assembling it on a soft surface like carpet or a blanket. This helps prevent any accidental scratches and keeps your furniture in top shape!
- Page 7 Step 3 Twist the Legs (6) and Post Tops (5) into the Left and Right Headboard Posts (3 & 4) making sure the tops are on the end with the longer solid piece.
- Page 8 Step 4 Next, twist in the Bolts (F) to the Left and Right Headboard Posts (3 & 4). For now, leave the four holes in the image without bolts empty.
- Page 9 Step 5 Now let’s finish the headboard! Insert the bolts in the Headboard Posts (3 & 4) into the Headboard (1) and Headboard Rail (2). To secure, put the Half Moon Washer (G) over bolt in the circle openings on the Headboard (1) and then tighten the Nut (H) on top with the Wrench (J).
- Page 10 Step 6 Turn the assembled headboard over and twist in Bolts (F) to the front side of the Left and Right Headboard Posts (3 & 4). Also attach the U Bracket (K) to the Headboard Rail (2) with a Washer(D) and Bolt (C).
- Page 11 Step 7 Next, twist the Legs (6) and Post Tops (5) into the Bottom Rail (8). Tip: The Bottom Rail is not directional so add the Legs to either side.
- Page 12 Step 8 Twist in Bolts (F) and attach the U Bracket (K) with a Washer (D) and Bolt (C).
- Page 13 Find some yoga blocks, books, or anything you have near you to prop up the Side Rails (7) while attaching them to the Headboard posts (3 & 4). To secure, put the Half Moon Washer (G) over bolt in the circle openings of the Side Rails (7) and then tighten the Nut (H) on top with the Wrench (J).
- Page 14 Step 10 Attach the Bottom Rail (8) to the Side Rails (7) the same way with the Half Moon Washers (G) and Nuts (H).
- Page 15 Step 11 Twist off the caps on the Middle Support Legs (10) and then twist the legs into the Center Support Rail (9).
- Page 16 Step 12 Place the Center Support Rail (9) in the U brackets and secure through the sides with screws (L).
- Page 17 Step 13 If needed, adjust the levelers on the Middle Support Legs (10).
- Page 18 Step 14 Place the dowels (B) into the holes on each end of the Side Rails (7), this will help when aligning the slats.
- Page 19 Step 15 Last Step! Roll out the Slats (11) and secure with screws (M).
-
Page 20: Final Assembly
Final Assembly Congratulations on your new piece of furniture! We would love to hear about it and see it. Please leave us a review or post a picture with #mywalkeredisonhome... - Page 21 Assembling furniture can be tricky sometimes. Our customer service team, located in Utah, is here for product information, help assembling a product, or for any other customer support issue Call us at 801-433-3008 Email us at service@walkeredison.com Visit our Customer Service website at walkeredison.com/pages/customer-service We are available to help Monday -Thursday 8am-5pm, Friday 8am-3pm MST...
