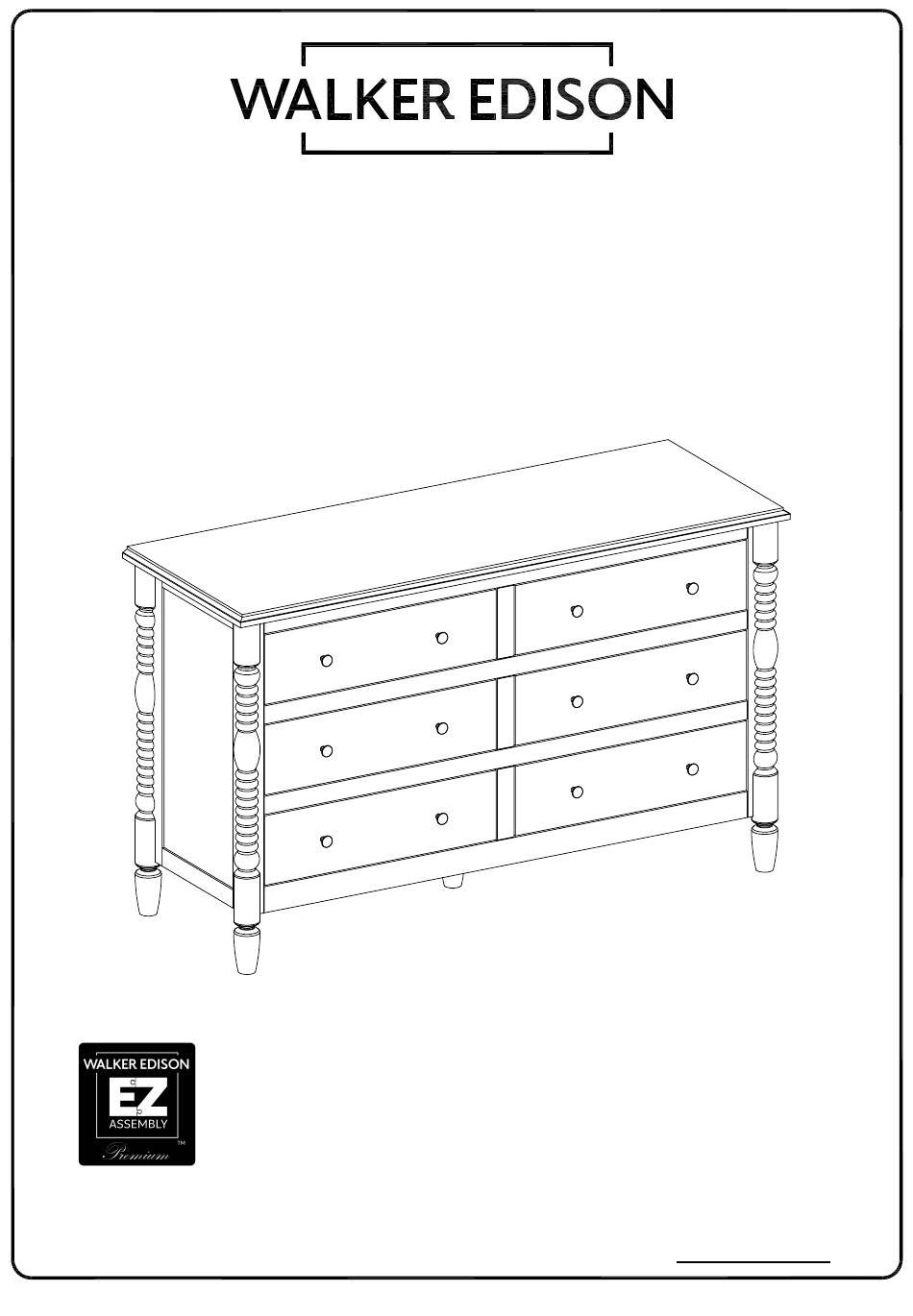

Walker Edison EZ Assembly™
Vivienne 6-drawer Spindle Dresser
SKU# WEVIV026D2
For Residential Use Only
Please visit our website for the most current instructions, assembly tips, report damage,or request parts. www.walkeredison.com
2024 by Walker Edison Furniture Co., LLC. All rights reserved. Revised 30/12/2024 (F)
Copyright
©
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the EZ Assembly Vivienne WEVIV026D2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Walker Edison EZ Assembly Vivienne WEVIV026D2

Summary of Contents for Walker Edison EZ Assembly Vivienne WEVIV026D2

  • Page 1 Vivienne 6-drawer Spindle Dresser SKU# WEVIV026D2 For Residential Use Only Please visit our website for the most current instructions, assembly tips, report damage,or request parts. www.walkeredison.com 2024 by Walker Edison Furniture Co., LLC. All rights reserved. Revised 30/12/2024 (F) Copyright ©...
  • Page 2 You can cause cracking or damage to the material and easily strip the hardware. If you choose to use a power tool, your product will no longer be covered under Walker Edison’s warranty. Glue is provided to secure wood dowels in place When inserting dowels, locate the appropriate hole, place a small amount of glue in the hole, and then insert the dowel.

  • Page 3: Parts List

    Parts List Part Description Quantity Number Top Panel Bottom Panel Front Frame Back frame panel Left Panel Right Panel Dividing Panel Legs Center Foot Drawer Front Panel Drawer Back Panel Drawer Left Panel Drawer Right Panel Drawer Bottom Panel...

  • Page 4: Hardware List

    Hardware List Part Size Name Quantity 1/4"x30mm Thumb Screw 8x30mm Wooden dowel 6x30mm Wooden dowel 5/32"x25mm Bolt Ø26x22mm Handle 4x25mm Screw 4x12mm Screw Plastic strap Wall Anchor Glue Tube The hardware quantities listed above are required for proper assembly. Extra hardware pieces may be included.
  • Page 5 Introducing Walker Edison EZ Assembly™ Hardware At Walker Edison, we understand that furniture assembly can be a daunting task, especially when you’re excited to get your new furniture set up and in use. That's why we’re introducing our innovative Walker Edison EZ Assembly™ hardware system. Our goal is to make the assembly process as smooth and straightforward as possible, so you can spend less time building and more time enjoying your new furniture.
  • Page 6 Step 1 Time to get started! Insert Wooden Dowels (B) into the holes on the top and bottom of the Dividing Panel (7). The provided glue is to secure wood dowels in place. When first inserting dowels, locate the appropriate hole for the dowel, place a small amount of glue in the hole and insert the dowel.
  • Page 7 Step 2 Add those same dowels to the top of the Left and Right Panels (5 & 6).
  • Page 8 Step 3 Lay the Back Panel (4) flat on the ground. Now grab the Left Panel (5) and slide it into the matching hardware until they lock together. Secure it in place with the thumb screws – easy, right?
  • Page 9 Step 4 Repeat on the right! Take the Right Panel (6) and do the same thing you just did with the left side. Slide, lock, and secure with those trusty thumb screws.
  • Page 10 Step 5 Grab the Bottom Panel (2) and slide it in between the side panels. Make sure everything lines up, then secure it underneath with— you guessed it—thumb screws (A).
  • Page 11 Step 6 Take the Divider Panel (7) and slide it into the hardware in the center of the Bottom Panel (2). Lock it into place and secure it with thumb screws (A).
  • Page 12 Step 7 Now it’s time to add the Front Frame (3). Slide it into the side panels (5 & 6) and the Divider Panel (7), making sure everything locks together. Secure with thumb screws.
  • Page 13 Step 8 Fasten the rest of the Bottom Frame (2) into place with the same trusty thumb screws (A).
  • Page 14 Step 9 Twist on the Legs (8) and Center Foot (9) . Give them a little wiggle to make sure they are nice and tight.
  • Page 15 Step 10 Carefully lift the dresser frame onto its legs. Look at that—it’s starting to come together! Pop in the wood dowels (B) on the top. Then, grab the Top Panel (1) and place it on top of the frame. Use the dowels to line everything up perfectly, then secure it with thumb screws (A).
  • Page 16 Step 11 Grab the smaller wood dowels (C) and insert them into the sides of the drawer pieces (11, 12, & 13).
  • Page 17 Step 12 Line up the dowels and pin holes on the Drawer Right Panel (13) and Drawer Back Panel (11) then flip the tabs on the back of the Drawer Back Panel (11) to lock them in place. Do this for all 6 drawers. Quick Assembly Drawers 1.
  • Page 18 Step 13 Repeat the previous step with the Drawer Left Panel (12) for all six drawers.
  • Page 19 Step 14 Slide the drawer bottom panels (14) into the grooves of the drawer frame.
  • Page 20 Step 15 Attach the Front Drawer Panels (10) to the drawer slides by aligning the dowels and pins. Repeat for all six drawers.
  • Page 21 Step 16 Twist on the drawer knobs (E) using the bolts (D) to finish all the drawers. Now they are looking sharp!
  • Page 22 Step 17 Slide all the drawers into your brand-new dresser. Step back and admire your handiwork—you are so close! Reinserting your Cabinet Glides together Line up the Drawer Member so it is inside the guides of the Cabinet Member. Once the connection is made, push the drawer into place entirely. It may not be a smooth glide on your first try, but will improve after it' fully inserted.
  • Page 23 Step 18 Adjust the leveler on the center foot if needed.
  • Page 24 Step 19 Let’s install the anti-tip kit! Use the screws (G) to attach the plastic strap (H) to the back of the Top Panel (1).
  • Page 25 Step 20 Secure the other end of the plastic strap (H) to your wall using the anchor (J) and screws (F). Now it’s sturdy and safe. Warning Serious or fatal injuries can occur from furniture tipping over. To prevent the furniture from tipping over we recommend that it is permanently fixed to the wall.

  • Page 26: Final Assembly

    Final Assembly Congratulations on your new piece of furniture! We would love to hear about it and see it. Please leave us a review or post a picture with #mywalkeredisonhome...
  • Page 27 Assembling furniture can be tricky sometimes. Our customer service team, located in Utah, is here for product information, help assembling a product, or for any other customer support issue Call us at 801-433-3008 Email us at service@walkeredison.com Visit our Customer Service website at walkeredison.com/pages/customer-service We are available to help Monday -Thursday 8am-5pm, Friday 8am-3pm MST...
