Sasha 70" Sideboard
SKU# WESAS11704
For Residential Use Only
Please visit our website for the most current instructions, assembly tips, report damage,or request parts. www.walkeredison.com
©
Copyright
2024 by Walker Edison Furniture Co., LLC. All rights reserved. Revised 15/05/2024 (I)
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Sasha WESAS11704 and is the answer not in the manual?

Questions and answers

Related Manuals for Walker Edison Sasha WESAS11704

Summary of Contents for Walker Edison Sasha WESAS11704

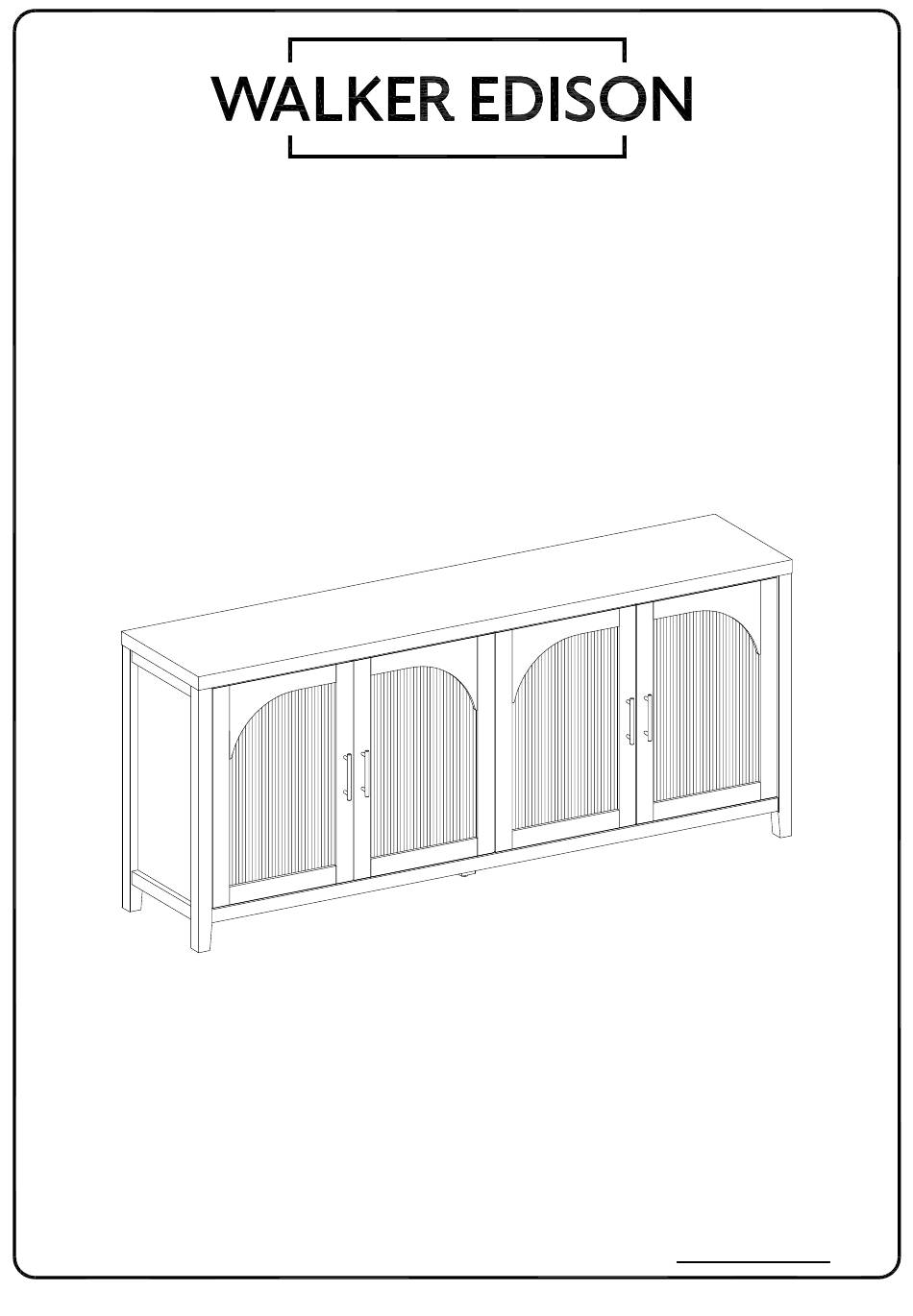

  • Page 1 Sasha 70” Sideboard SKU# WESAS11704 For Residential Use Only Please visit our website for the most current instructions, assembly tips, report damage,or request parts. www.walkeredison.com © Copyright 2024 by Walker Edison Furniture Co., LLC. All rights reserved. Revised 15/05/2024 (I)
  • Page 2 You can cause cracking or damage to the material and easily strip the hardware. If you choose to use a power tool, your product will no longer be covered under Walker Edison’ warranty. Glue is provided to secure wood dowels in place When inserting dowels, locate the appropriate hole, place a small amount of glue in the hole, and then insert the dowel.

  • Page 3: Parts List

    Parts List Description Quantity Part Number Top Panel Bottom Panel Front Apron Left Side Panel Right Side Panel Middle Divider Panel Back Panel Adjustable Shelf Left Back Leg Left Front Leg Right Back Leg Right Front Leg Middle Foot Left Door Left Center Door Right Center Door Right Door...

  • Page 4: Hardware List

    Hardware List Part Size Name Quantity 8x30mm Wooden dowel 6x35mm Cam bolt 15x11mm Cam lock 30mm Sticker Screw 6x50mm Hex key M 4mm Door stopper Screw 4x14mm L shape bracket Screw 4x15mm Plastic wedge 3x17mm Screw Shelf support pin 8x5x16mm Handle 4x25mm Handle Bolt...
  • Page 5 Hardware List Part Size Name Quantity 35mm Europe hinge 35mm Europe hinge 4x13mm Screw 4x12mm Screw 4x25mm Screw Plastic strap Glue tube The hardware quantities listed above are required for proper assembly. Extra hardware pieces may be included.
  • Page 6 Step 1 Let’s get started, shall we? Using a screwdriver, insert Cam Bolts (B) into the Top Panel (1) and the Front Apron (3). Then, attach the two Door Stoppers (G) to the Top Panel using 14mm Screws (H).
  • Page 7 Step 2 Insert Wooden Dowels (A) into the Bottom Panel (2) and the Middle Divider Panel (6). The provided glue is to secure wood dowels in place. When first inserting dowels, locate the appropriate hole for the dowel, place a small amount of glue in the hole and insert the dowel.
  • Page 8 Step 3 Screw Cam Bolts (B) and insert Wooden Dowels (A) into the Left Side Panel (4), Left Back Leg (9), & Left Front Leg (10).
  • Page 9 Step 4 Now, repeat for the other side. Screw Cam Bolts (B) and insert Wooden Dowels (A) into the Right Side Panel (5), Right Back Leg (11), & Right Front Leg (12).
  • Page 10 Step 5 Now, connect the Left Back Leg (9) & Left Front Leg (10) to the Left Side Panel (4). Secure with Cam Locks (C). Cam Locks Cam Locks help securely join two pieces together. Follow these easy steps. 1: Insert Cam Bolt 2: Fit the proper holes on the 3: On the back of the Cam Lock into bolt holes on...
  • Page 11 Step 6 Repeat the same process for the right side. Connect the Right Back Leg (11) & Right Front Leg (12) to the Right Side Panel (5). Secure with Cam Locks (C).
  • Page 12 Step 7 Attach the Front Apron (3) to the Bottom Panel (2) and secure with Cam Locks (C).
  • Page 13 Step 8 Attach the Middle Foot (13) to the Bottom Panel (2) using a 50mm screw (E). Secure with your Hex Key (F).
  • Page 14 Step 9 Now, you will attach the Middle Divider Panel (6) to the top of the Bottom Panel (2) using 50mm Screws (E).
  • Page 15 Step 10 Connect the Right Side Panel (5) to the Bottom Panel (2) and secure with Cam Locks (C)
  • Page 16 Step 11 Connect the Left Side Panel (4) to the Bottom Panel (2) and secure with Cam Locks (C).
  • Page 17 Step 12 Secure the corners of the Bottom Panel (2) with 15mm Screws (K).
  • Page 18 Step 13 Slide the two Back Panels (7) into place using the grooves.
  • Page 19 Step 14 Attach the Top Panel (1) to the sideboard frame using Cam Locks (C) to secure.
  • Page 20 Step 15 Evenly space Plastic Wedges (L) in between the Back Panel and the frame. Secure with 17mm Screws (M).
  • Page 21 Step 16 Cover any visible Cam Locks (C) with Stickers (D).
  • Page 22 Step 17 Insert Shelf Support Pins (N) into the pre-drilled holes at your desired height, then slide the Adjustable Shelves (8) into place.
  • Page 23 Step 18 Please note that there are two different types of hinges. Attach Europe Hinges (R) to the Left Door (14) & the Right Door (17) using 13mm Screws (T). Secure the Handles (P) to each door using Handle Bolts (Q).
  • Page 24 Step 19 Now, repeat for the other two doors. Attach the Europe Hinge (S) to the Left Center Door (15) and the Right Center Door (16) using 13mm Screws (T). Secure the Handles (P) to each door using the Handle Bolts (Q).
  • Page 25 Step 20 Next, we’ll attach the doors. Attach the hinges on the Left Door (14) and the Right Center Door (16) to the sideboard and secure with 13mm Screws (T). Pay careful attention to ensure that each door and hinge is attached to the correct area. Adjusting The Cabinet Doors Adjust horizontal width Adjust depth position...
  • Page 26 Step 21 Now, attach the hinges on the Left Center Door (15) and Right Door (17). Use the 13mm Screws (T) to secure.
  • Page 27 Step 22 Use the adjustable feet to ensure a level surface.
  • Page 28 Step 23 You’re so close now. Let’s secure your sideboard to the wall. Using the 12mm Screws (U), attach the Plastic Straps (W) to the back of the sideboard.
  • Page 29 Step 24 Now, pre-drill a hole into the wall and insert the Nut (X). Secure the Plastic Straps (W) to the wall using 25mm Screws (V). Warning Serious or fatal injuries can occur from furniture tipping over. To prevent the furniture from tipping over we recommend that it is permanently fixed to the wall.

  • Page 30: Final Assembly

    Final Assembly Final assembly: Great work, you did it! Congratulations on your new piece of furniture! We would love to hear about it and see it. Please leave us a review or post a picture with #mywalkeredisonhome...
  • Page 31 Assembling furniture can be tricky sometimes. Our customer service team, located in Utah, is here for product information, help assembling a product, or for any other customer support issue Call us at 801-433-3008 Email us at service@walkeredison.com Visit our Customer Service website at walkeredison.com/pages/customer-service We are available to help Monday -Thursday 8am-5pm, Friday 8am-3pm MST...
