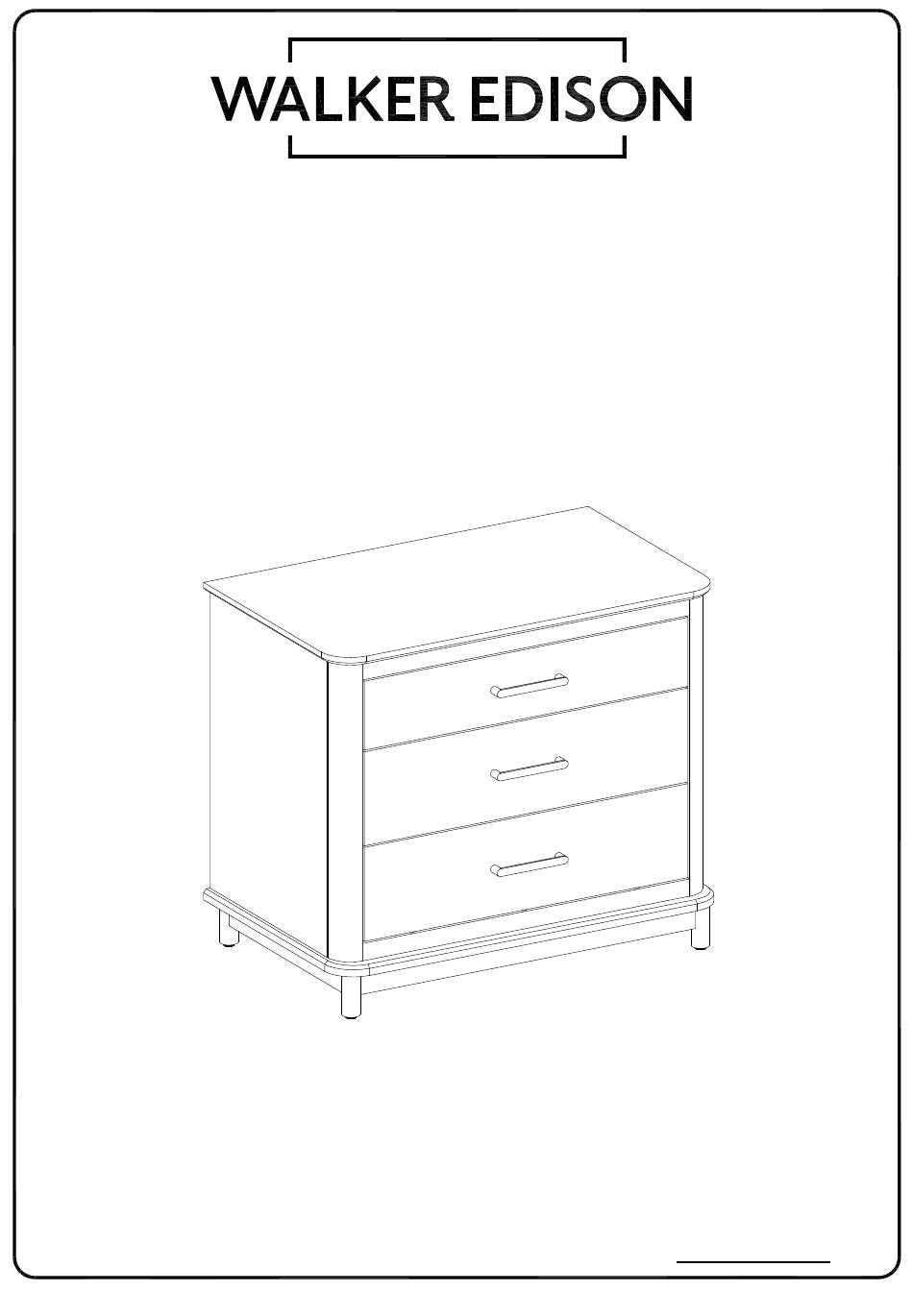

Annette Contemporary
3-Drawer Wood Nightstand
SKU# WEANN013D1
For Residential Use Only
Please visit our website for the most current instructions, assembly tips, report damage,or request parts. www.walkeredison.com
2024 by Walker Edison Furniture Co., LLC. All rights reserved. Revised 08/10/2024 (I)
©
Copyright
1
Advertisement
Related Manuals for Walker Edison Annette WEANN013D1
Summary of Contents for Walker Edison Annette WEANN013D1
- Page 1 3-Drawer Wood Nightstand SKU# WEANN013D1 For Residential Use Only Please visit our website for the most current instructions, assembly tips, report damage,or request parts. www.walkeredison.com 2024 by Walker Edison Furniture Co., LLC. All rights reserved. Revised 08/10/2024 (I) © Copyright...
- Page 2 You can cause cracking or damage to the material and easily strip the hardware. If you choose to use a power tool, your product will no longer be covered under Walker Edison’s warranty. Glue is provided to secure wood dowels in place When inserting dowels, locate the appropriate hole, place a small amount of glue in the hole, and then insert the dowel.
-
Page 3: Parts List
Parts List Part Number Description Quantity Top Panel Bottom Panel Left Side Panel Right Side Panel Front Rail Back Panel Top Drawer Left Side Panel Top Drawer Right Side Panel Top Drawer Back Panel Drawer Bottom Panel Top Drawer Front Panel Lower Drawers Left Side Panel Lower Drawers Right Side Panel Lower Drawers Back Panel... -
Page 4: Hardware List
Hardware List Part Size Name Quantity 8x30mm Wooden dowel 6x35mm Cam bolt 15x11mm Cam lock 30mm Sticker Bolt 1/4''x50mm 1/4''mm Lock washer 1/4'x16mm Washer Hex key M 4mm Screw 4x38mm Plastic wedge 3x17mm Screw Handle 5/32"x19mm Handle screw 6x30mm Wooden dowel Glue tube The hardware quantities listed above are required for proper assembly. - Page 5 Step 1 Let’s get started! Screw four Cam bolts (B) into the Top Panel (1).
- Page 6 Step 2 Next, attach the Legs (16) to the Bottom Panel (2) using the Bolts (E) with a Lock washer (F) and washer (G).
- Page 7 Step 3 Turn the Bottom Panel (2) over and screw in the Cam bolts (B).
- Page 8 Step 4 Insert Wooden dowels (A) into the top and bottom of the Left and Right Side Panels (3 & 4) then screw in Cam Bolts (B) to the front corners of the panels. The provided glue is to secure wood dowels in place. When first inserting dowels, locate the appropriate hole for the dowel, place a small amount of glue in the hole and insert the dowel.
- Page 9 Step 5 Insert Wooden dowels (A) into the two Front Rails (5).
- Page 10 Step 6 Secure the Front Side Rails (5) to the Right Side Panel (4) with Cam locks (C) then repeat on the Left Side Panel (3). Cam Locks Cam Locks help securely join two pieces together. Follow these easy steps. 1: Insert Cam Bolt 2: Fit the proper holes on the 3: On the back of the Cam Lock...
- Page 11 Step 7 Attach the Bottom Panel (2) to the Side Panels (3 & 4) using Cam locks (C).
- Page 12 Step 8 Secure the Front Rail (5) to the Bottom Panel (2) with Screws (K).
- Page 13 Step 9 Slide the Back Panel (6) into the grooves of the Side Panels (3 & 4) down to the Bottom Panel (2).
- Page 14 Step 10 Attach the Top Panel (1) to the Side Panels (3 & 4). Secure with Cam locks (C).
- Page 15 Step 11 Secure the Front Rail (5) to the Top Panel (1) with Screws (K).
- Page 16 Step 12 Just a few cosmetic touches now, place the Stickers (D) over the visible Cam locks (C).
- Page 17 Step 13 Secure the Plastic Wedges (L) with the Screws (M) against the Back Panel (6). This will eliminate racking and make the Nightstand extra strong!
- Page 18 Step 14 Attach the Handles (N) to the Drawer Front Panels (11 & 15) with the Handle Screws (O).
- Page 19 Step 15 Insert the Wooden Dowels (P) into the Top Drawer pieces (7, 8, & 9).
- Page 20 Step 16 Line up the dowel and pin holes then flip the tabs on the backside of the Drawer Back Panels (9) to secure. Quick Assembly Drawers 1. Make sure the quick assembly 2. Once the pin is inserted correctly, flip the drawer pin is aligned with the metal lever in the opposite direction to ensure corresponding hole.
- Page 21 Step 17 Slide the Bottom Drawer Panels (10) into the grooves of the top drawer.
- Page 22 Step 18 Attach the Top Drawer Front Panel (11) to the Drawer Sides (7 & 8) by aligning the dowels and flipping the pin.
- Page 23 Step 19 Insert the Wooden dowels (P) into the Lower Drawer pieces (12, 13, & 14).
- Page 24 Step 20 Line up the dowel and pin holes then flip the tabs on the backside of the Drawer Back Panels (14) to secure.
- Page 25 Step 21 Slide the Lower Drawer Panels (10) into the grooves of the bottom drawers.
- Page 26 Step 22 Attach the Lower Drawer Front Panels (15) to the drawer sides (12 & 13) by aligning the dowels and flipping the pin.
- Page 27 Step 23 Line up the drawer member with the cabinet member and slide in the drawers to complete your new nightstand! Reinserting your Cabinet Glides together Line up the Drawer Member so it is inside the guides of the Cabinet Member. Once the connection is made, push the drawer into place entirely.
- Page 28 Step 24 Adjust the levelers on the legs to make sure the dresser is sturdy.
-
Page 29: Final Assembly
Final Assembly Congratulations on your new piece of furniture! We would love to hear about it and see it. Please leave us a review or post a picture with #mywalkeredisonhome... - Page 30 Assembling furniture can be tricky sometimes. Our customer service team, located in Utah, is here for product information, help assembling a product, or for any other customer support issue Call us at 801-433-3008 Email us at service@walkeredison.com Visit our Customer Service website at walkeredison.com/pages/customer-service We are available to help Monday -Thursday 8am-5pm, Friday 8am-3pm MST...
