Walker Edison Holmes WEHOL41OS2 Manual

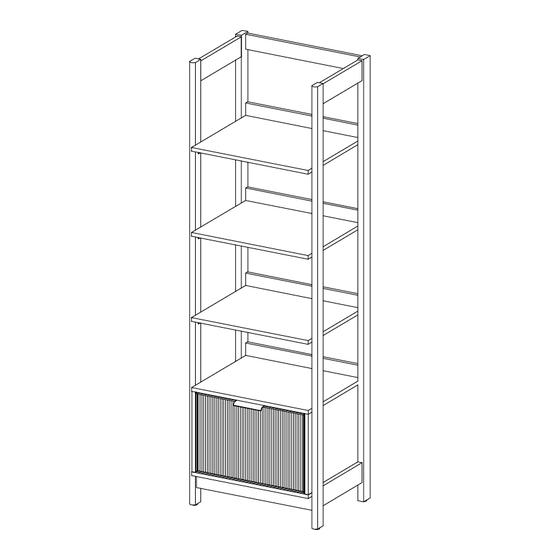

Narrow bookcase
Hide thumbs

Advertisement

Quick Links

Download this manual

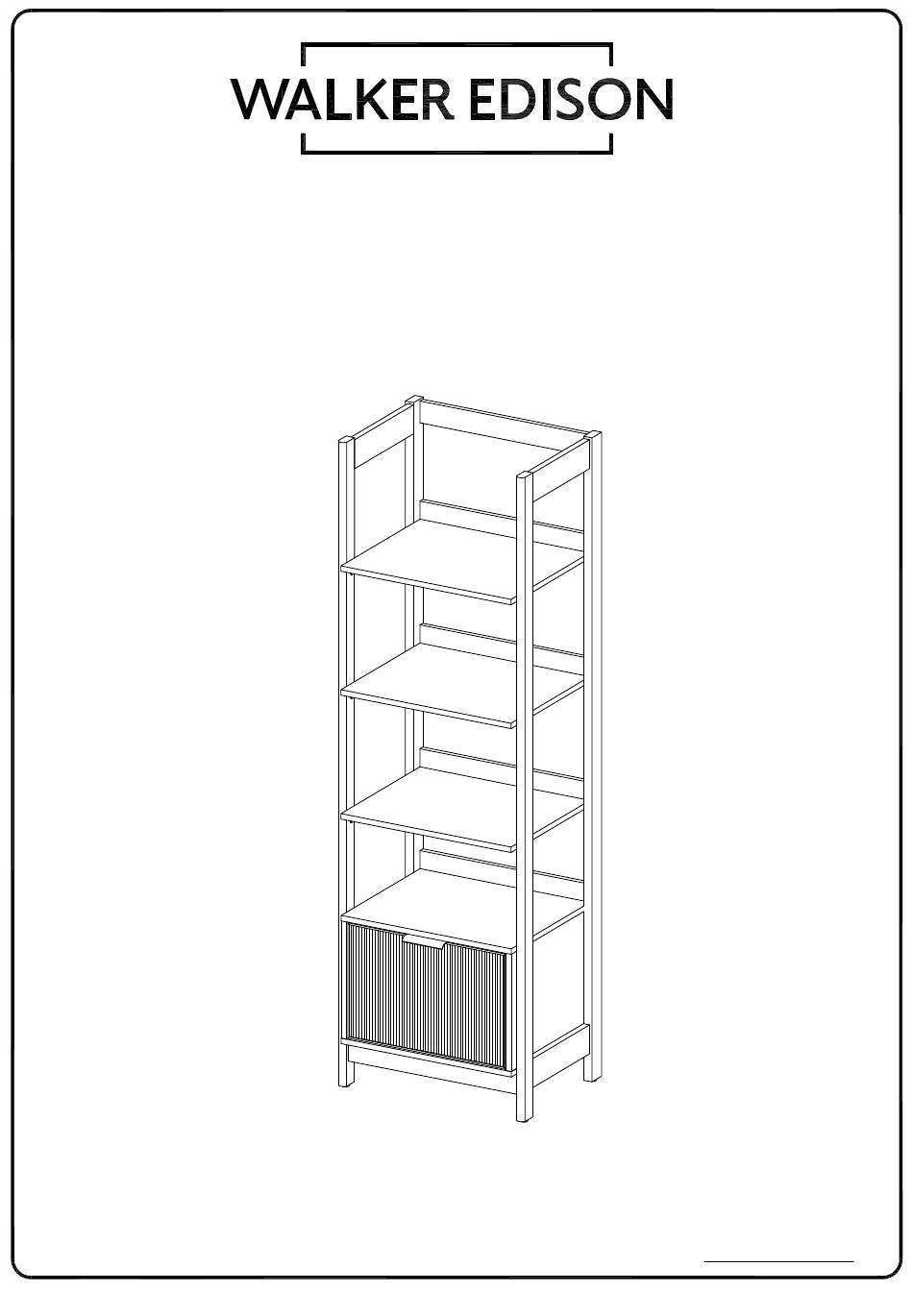

TM
Holmes Narrow Bookcase
SKU# WEHOL41OS2
For Residential Use Only
Please visit our website for the most current instructions, assembly tips, report damage, or request parts. www.walkeredison.com
Copyright
2024 by Walker Edison Furniture Co., LLC. All rights reserved.
Revised 21/03/2024 (F)
©
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Holmes WEHOL41OS2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Walker Edison Holmes WEHOL41OS2

Summary of Contents for Walker Edison Holmes WEHOL41OS2

  • Page 1 Holmes Narrow Bookcase SKU# WEHOL41OS2 For Residential Use Only Please visit our website for the most current instructions, assembly tips, report damage, or request parts. www.walkeredison.com Copyright 2024 by Walker Edison Furniture Co., LLC. All rights reserved. Revised 21/03/2024 (F) ©...
  • Page 2 You can cause cracking or damage to the material and easily strip the hardware. If you choose to use a power tool, your product will no longer be covered under Walker Edison’s warranty. Glue is provided to secure wood dowels in place When inserting dowels, locate the appropriate hole, place a small amount of glue in the hole, and then insert the dowel.

  • Page 3: Parts List

    Parts List Part Number Description Quantity Left Panel Right Panel Support Panels Upper Shelf Panel Front Shelf Trim Lower Shelf Panel Bottom Cabinet Panel Left Cabinet Panel Right Cabinet Panel Back Cabinet Panel Left Drawer Panel Right Drawer Panel Back Drawer Panel Bottom Drawer Panel Front Drawer Panel...

  • Page 4: Hardware List

    Hardware List Quantity Part Size Name 8x30mm Wooden dowel 6x30mm Wooden dowel 6x35mm Cam Bolt 15x11mm Cam Lock 15x9mm Cam Lock 6x50mm Bolt 6x30mm Bolt 6x15mm Bolt L-shape Bracket M4x57mm Hex Key 4x38mm Screw Drawer Pull 3x12mm Screw...
  • Page 5 Hardware List Quantity Part Size Name Plastic Wedge 3x17mm Screw 10" Drawer Glide* * Note: This piece comes preassembled for shipping purposes and must be disassembled to complete the desk assembly. 4x25mm Screw 4x12mm Screw Wall Anchor Plastic Strap 30mm Sticker Glue Tube The hardware quantities listed above are required for proper assembly.
  • Page 6 Step 1 Let’s get this ball rolling. Attach Cam Bolts (C) to the Left Panel (1) and Right Panel (2).
  • Page 7 Step 2 Insert Cam Bolts (C) into the Lower Shelf Panel (6). Then insert Wooden Dowels (A) into the dowel holes on the four pieces of Front Shelf Trim (5) and three pieces of Support Panels (3).
  • Page 8 Step 3 Attach the L Shape Brackets ( J) to the Upper Shelf Panels x3 (4) using 15mm Bolts (H).
  • Page 9 Step 4 From your Drawer Glides, you will detach the Drawer Members from the Cabinet Members. You can do so by pushing up on the plastic lever. Cabinet member Drawer member Cabinet member Drawer member...
  • Page 10 Step 5 Attach Drawer Glides (S) to the Left Cabinet Panel (8) and Right Cabinet Panel (9) using 12mm Screws (N). Insert Wooden Dowels (A) into side dowel holes.
  • Page 11 Step 6 Attach Front Shelf Trim x4 (5) to Upper Shelf Panels x3 (4) and Lower Shelf Panel (6) using 38mm Screws (L).
  • Page 12 Step 7 Attach the Left Cabinet Panel (8) and the Right Cabinet Panel (9) to the Bottom Cabinet Panel (7) using 50mm Bolt (F).
  • Page 13 Step 8 Slide Back Cabinet Panel (10) into place using guides.
  • Page 14 Step 9 Attach Bottom Shelf (6) to Left Cabinet Panel (8) and Right Cabinet Panel (9). Lock into place with Cam Locks (D). Cam Locks Cam Locks help securely join two pieces together. Follow these easy steps. 1: Insert Cam Bolt 2: Fit the proper holes on the 3: On the back of the Cam Lock into bolt holes on...
  • Page 15 Step 10 Now, we’ll attach shelves and the cabinet unit to the Right Side Panel (2). See graphic for proper order of shelves. Attach Front Shelf Trim x4 (5), & Support Panels x3 (3) with Cam Locks (D). Secure with screwdriver. Next, attach L Shape Brackets ( J) on Upper Shelf Panels (4) to the Right Side Panel (2) using 15mm Bolts (H).
  • Page 16 Step 11 Repeat these steps for the other side. Attach Front Shelf Trim x4 (5) & Support Panels x3 (3) with Cam Locks (D). Secure with screwdriver. Next, attach L Shape Brackets ( J) on Upper Shelf Panels (4) to the Left Side Panel (1) using 15mm Bolts (H).
  • Page 17 Step 12 Attach the front of the Left Drawer Panel (8) and the Right Drawer Panel (9) using 30mm Bolts (G).
  • Page 18 Step 13 Evenly place Plastic Wedges (P) into the gaps between the Back Cabinet Panel (10) and the frame. Attach the Plastic Wedges with the 17mm Screws (Q).
  • Page 19 Step 14 Attach Cam Bolts (C) to the Front Drawer Panel (15) and insert Wooden Dowels (B) into the Back Drawer Panel (13). Attach the Drawer Pull (M) to the Front Drawer Panel (15) using 12mm Screws (N).
  • Page 20 Step 15 Attach the Drawer Members from your Drawer Glides (S) to the Left Drawer Panel (11) and Right Drawer Panel (12) using 12mm Screws (N).
  • Page 21 Step 16 Connect the Left Drawer Panel (11) and Right Drawer Panel (12) to the Back Drawer Panel (13). Secure with 38mm Screws (L).
  • Page 22 Step 17 Slide in the Bottom Drawer Panel (10) using the guides. Attach Front Drawer Panel to the Left Drawer Panel (11) and Right Drawer Panel (12) using Cam Locks (E).
  • Page 23 Step 18 Cover any visible Cam Locks (E) with Stickers (X).
  • Page 24 Step 19 Insert drawers into place by lining up the cabinet member and drawer member pieces of your Drawer Glides (S). Reinserting your Cabinet Glides together Line up the Drawer Member so it is inside the guides of the Cabinet Member.
  • Page 25 Step 20 Use the adjustable feet to create a level writing surface.
  • Page 26 Step 21 Great work, you’re in the home stretch. Let’s secure your bookcase to the wall. Attach the Plastic Strip (W) to your bookcase using the 12mm Screw (U).
  • Page 27 Step 22 Insert the Wall Anchor (V) into the wall. Next, secure the Plastic Strip (W) to the wall using the 25mm Screw (T). Warning Serious or fatal injuries can occur from furniture tipping over. To prevent the furniture from tipping over we recommend that it is permanently fixed to the wall.

  • Page 28: Final Assembly

    Final Assembly Congratulations on your new piece of furniture! We would love to hear about it and see it. Please leave us a review or post a picture with #mywalkeredisonhome...
  • Page 29 Assembling furniture can be tricky sometimes. Our customer service team, located in Utah, is here for product information, help assembling a product, or for any other customer support issue Call us at 801-433-3008 Email us at service@walkeredison.com Visit our Customer Service website at walkeredison.com/pages/customer-service We are available to help Monday -Thursday 8am-5pm, Friday 8am-3pm MST...
