25.2 pH – Flow switch/inductive sensor alarm
Gas
17.1 FLOW
FLOW
°C
OK
12:15
Flow Switch
Inductive sensor
71538 CConnect-PH/ORP_Pro
71539 CConnect-PH/ppm_Pro
When the contact connected to this input is open (inductive
sensor) and [FS] is activated in the equipment, dosing switches off
due to the flow alarm.

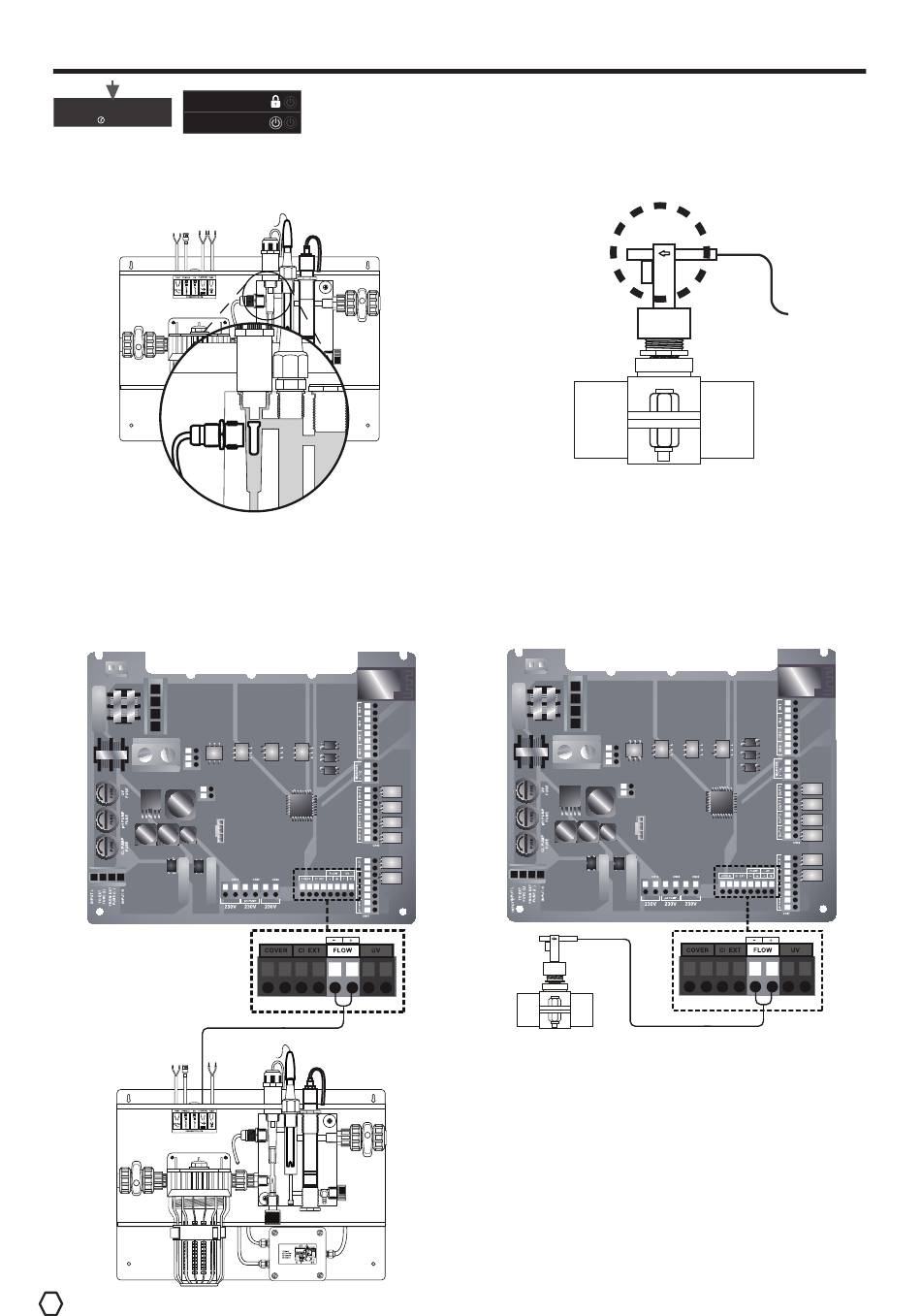

Connecting the inductive sen-
sor to the main board
AUX 1
- The flow alarm will appear if there is no water flow (inductive or flow switch sensor).
(F.E)
(F.S)
AUX 2
Flow switch sensor
71537 CConnect-PH/ORP_line
When the contact connected to this input is open (external flow
detector idle) and [FS] is activated in the equipment, dosing
switches off due to the flow alarm.
Connecting the flow switch
sensor to the main board
54
AUX 1 AUX 2
