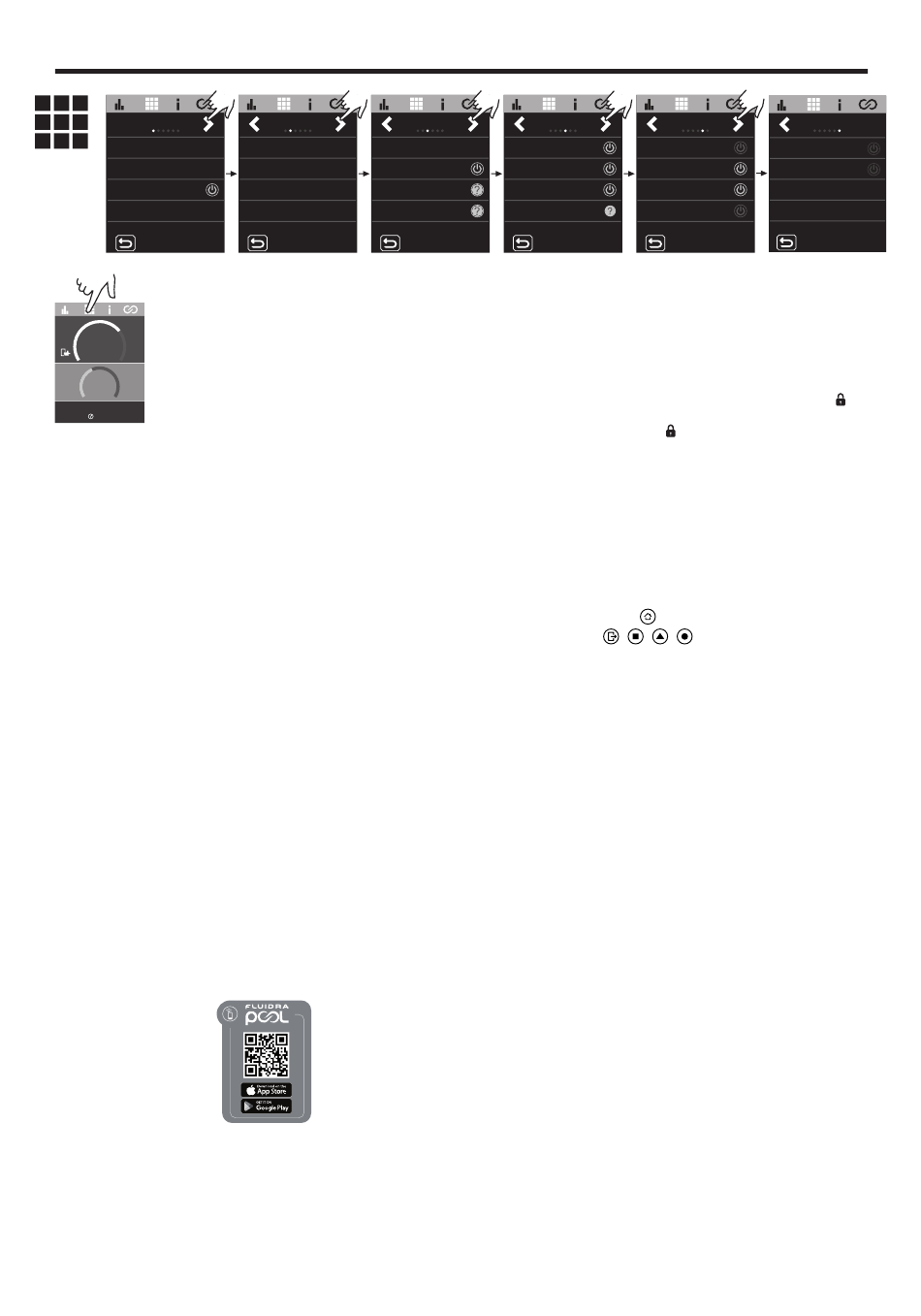

18 Configuration Menu

/Config
Screen 100
Language ENG
Sound
Touch
Screen: Sets the screen brightness.
Language: Language selection. Available languages: ESP, FRA, NED, ITA, POR, DEU, POL, ENG.
pH
Sound: Enable/Disable device's sound.
7.35
7.30
123
Touch: Touchscreen calibration.
ClmV
720
720
Date: Set day/month/year (equipment date). Not configurable if the device is connected to Fluidra Pool.
25.2
FLOW
°C 12:15 OK
Time: Set time. Not configurable if the device is connected to Fluidra Pool.
ModBus Bauds: Sets the MODBUS speed to 9600 or 19200.
ModBus Parity: Sets between 8E1, 8N1, 8N2.
ModBus Addr: Configurable MODBUS address (default 2).
Capacitive: Enable/disable capacitive buttons.
Reset Configuration: Restores default values:
Electrolysis: Enabled by default in electrolysis devices. This function switches the electrolysis function on/off.
LOW SALT CONFIG: Enabled by default on low salinity devices, disabled on devices with standard salinity. This
function resets the g/L by indicating on the main display that the device is a low salt (LS) system. Do not activa-
te this function if the device is not a low salt system. Otherwise, the g/L measurement will not be correct.
UV Config: Enabled by default in the Neolysis system. Displays lamp hours and ballast status.
Pairing configuration: to connect to the Fluidra Pool app.
/Config /Config
Date 31/08/22 MODBUS ADDR
Time 12:17 CAPACITIVE
MODBUS BAUDS 9600 FACTORY PROGRAMS
MODBUS PARITY 8E1 Reset Config
- 8E1: 8 bits, PAR parity, 1 stop bit.
- 8N1: 8 bits, no parity, 1 stop bit.
- 8N2: 8 bits, no parity, 2 stop bits.
- Screen: 90
- Language: English
- Sound: Enabled
- Reset to tactile calibration factory values.
- Date and Time: 01/01/2024 00:00
- Modbus: Baud: 9600 Parity: 8E1 Addr: 2.
Connection with Fluidra Pool
1. Download and install the FLUIDRA POOL app.
2. Create a user account and set up the pool parameters.
3. Activate pairing mode on the equipment.
4. Press Add Equipment and follow the FLUIDRA POOL instructions.
/Config
2 Electrolysis
LOW SALT CONFIG
UV CONFIG
PAIRING CONFIG
39
/Config
/Config
Biopool Timer1 (Aux1)
Filtering Timer2 (Aux2)
Backwashing
Boost Mode
