Astralpool Control Connect-PH/ORP line Instruction Manual page 50

Standard ClmV Calibration (ORP)
The controller's calibration frequency must be individually determined in each application. However, we recommend this be done at least
once a month while the swimming pool is in use. The ClmV has an automatic calibration system for ORP sensors based on the use of a
470 mV reference solution.
PROCEDURE:
IMPORTANT: Before closing the bypass valves, stop production by the equipment.
1. Remove the ORP sensor from the holder and rinse it with tap water.

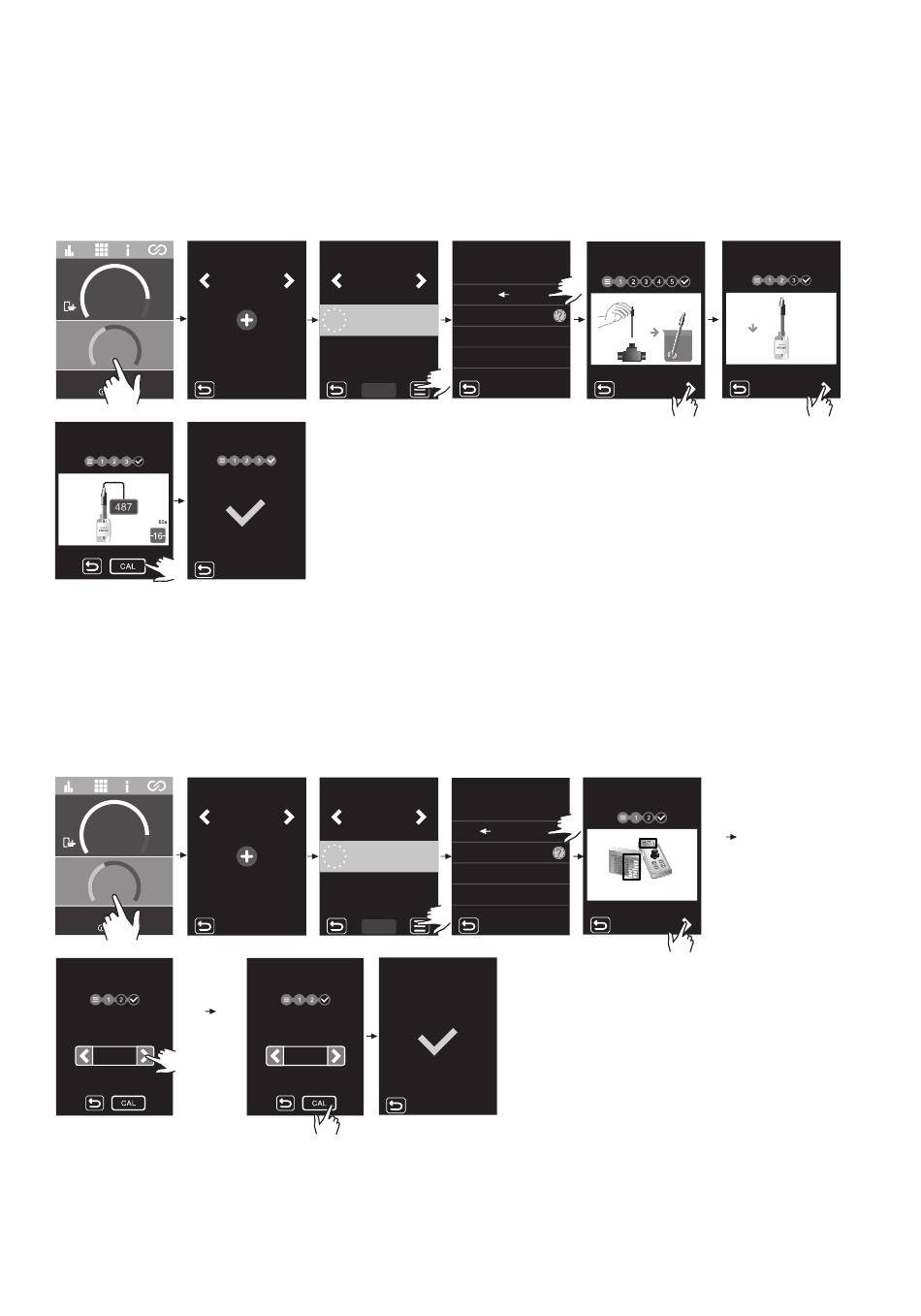

2. Follow the procedure shown in the pictures below:
