Ph/Orp/Ppm Sensor Installation; Cover And Functions - Astralpool Control Connect-PH/ORP line Instruction Manual

11 pH/ORP/PPM Sensor Installation

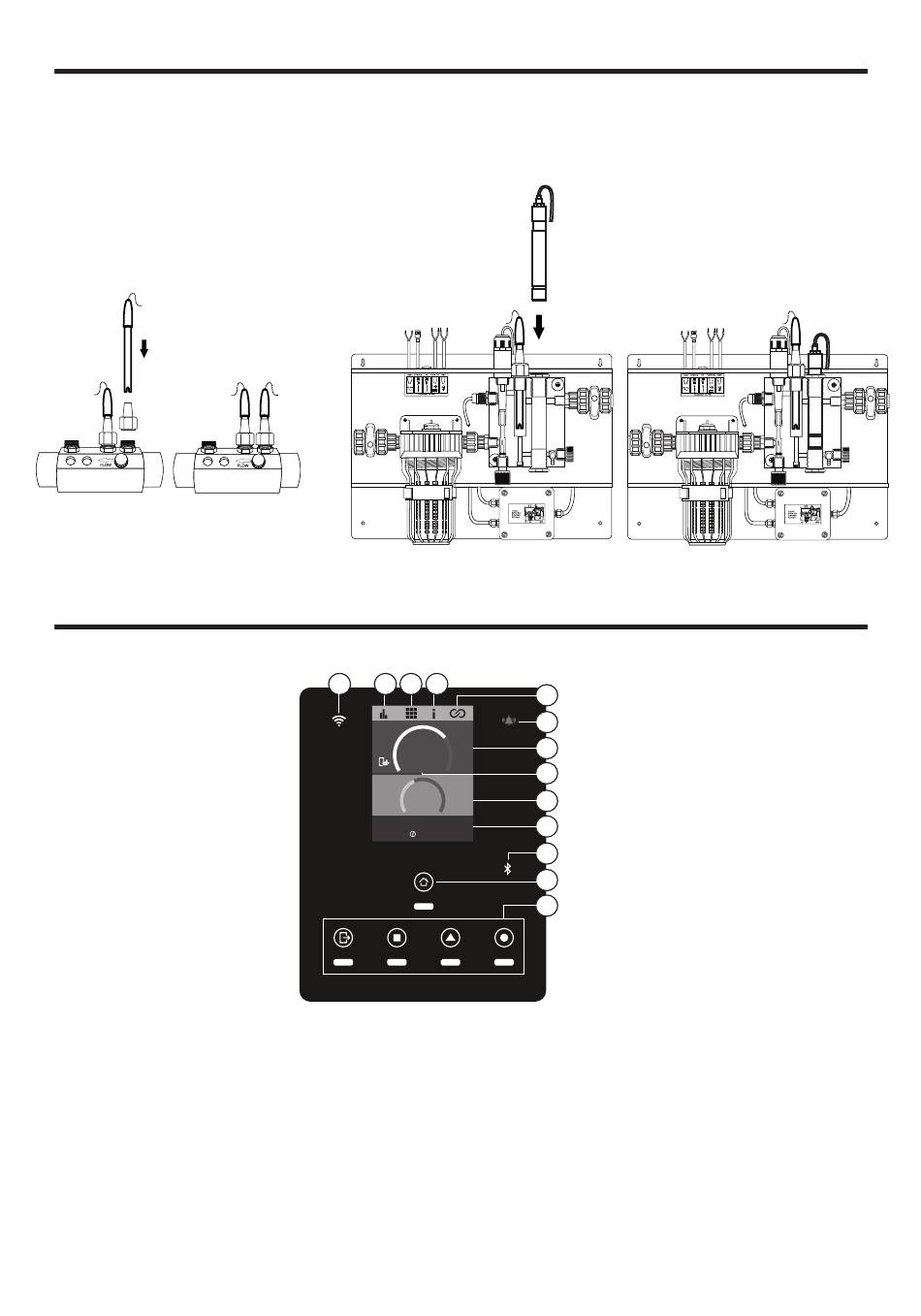

1. Insert the pH/ORP/PPM sensor supplied with the equipment in the appropriate housing in the probe holder.
2. To do this, loosen the nut on the probe socket and insert the sensor.
3. The sensor should be inserted far enough to guarantee that the probe at its tip will always be submerged in the water flowing through
the probe holder.
4. Always install the pH/ORP/PPM sensor vertically.

12 Cover and Functions

1) Wi-Fi status LED
2) Statistics menu
3) Configuration menu
4) Information menu
5) Relay menu
6) Alarm LED
7) Electrolysis production
1 2 4
3
pH
7.35
7.30
123
ClmV
720
720
25.2
FLOW
°C 12:15
OK
Control
Connect
8) pH
9) ORP / Clppm
10) Sensors (temperature / salinity)
11) Bluetooth connectivity
12) Home menu
13) Relay status
33
5
6
7
8
9
10
11
12
13
