Reese 20k 5th Airborne Installation Instructions Manual

!
WARNING: Under no circumstances should the towing vehicle manufacturer's recommended vehicle towing capacity be
exceeded. Failure to follow instructions for installation and use may cause property damage, injury or death.
READ ALL INSTRUCTIONS BEFORE STARTING THE INSTALLATION OR USE
Tools and Equipment Required to Install:
• Fastener kit 94621F (Included)
• 15/16" socket
• 15/16" wrench
• Torque wrench capable of going to 250 ft-lbs
• Lithium grease
• Air Compressor
SAFETY
INSTRUCTIONS
• Equipment for lifting approximately 160 lbs
What's Included:
• 20k 5
th
Airborne
• Fastener Kit (94621F):
• Hex Bolt – GR8 - 5/8"-11x2.00" – QTY 8
• Conical Washer – 5/8" – QTY 8
• Flat Washer – 5/8" – QTY 8
• Hex Nut – GR8 - 5/8"-11 – QTY 8
Fit Guide........................................p 2
Product Warnings..........................p 4
Install Guide.................................p 7
©
2021 Horizon Global America Inc.
Installation Instructions
th
5 Airborne

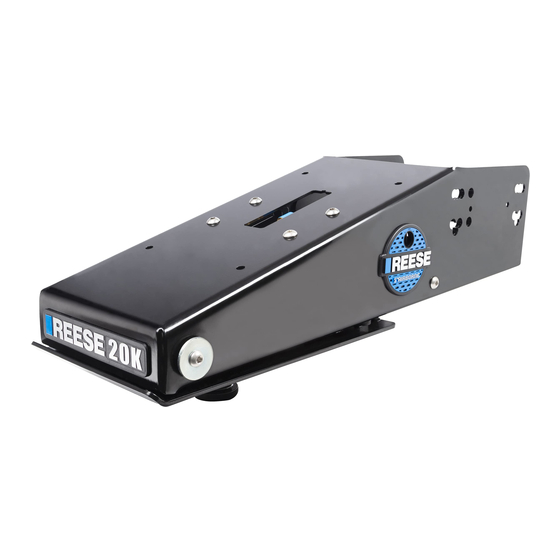

94420 – 20k 5th Airborne
20,000lbs Rating
5,000 lbs. Max Pin Weight
Table of Contents
Page 1 of 15
Figure 1
NOTE: For any questions, please
- Scan QR code
- Visit https://qr.towingproducts.net
- Or call Technical Service at: 1-800-632-3290
Air Fill / Adjustment........................p 12
Maintenance..................................p 14
Warranty.........................................p 15
94420N
Part Number(s):
94420
11/8/21 Rev. D
