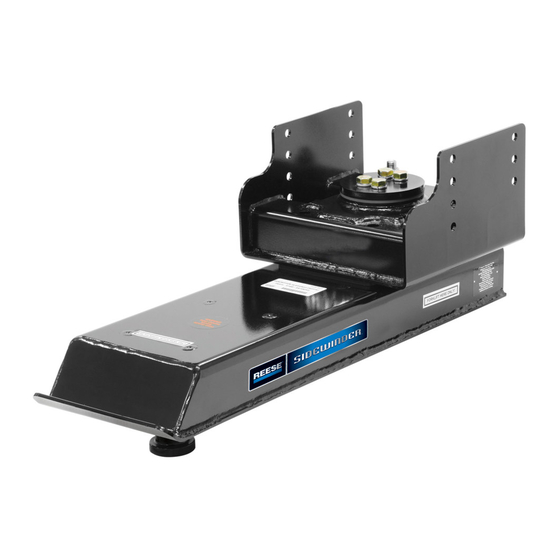

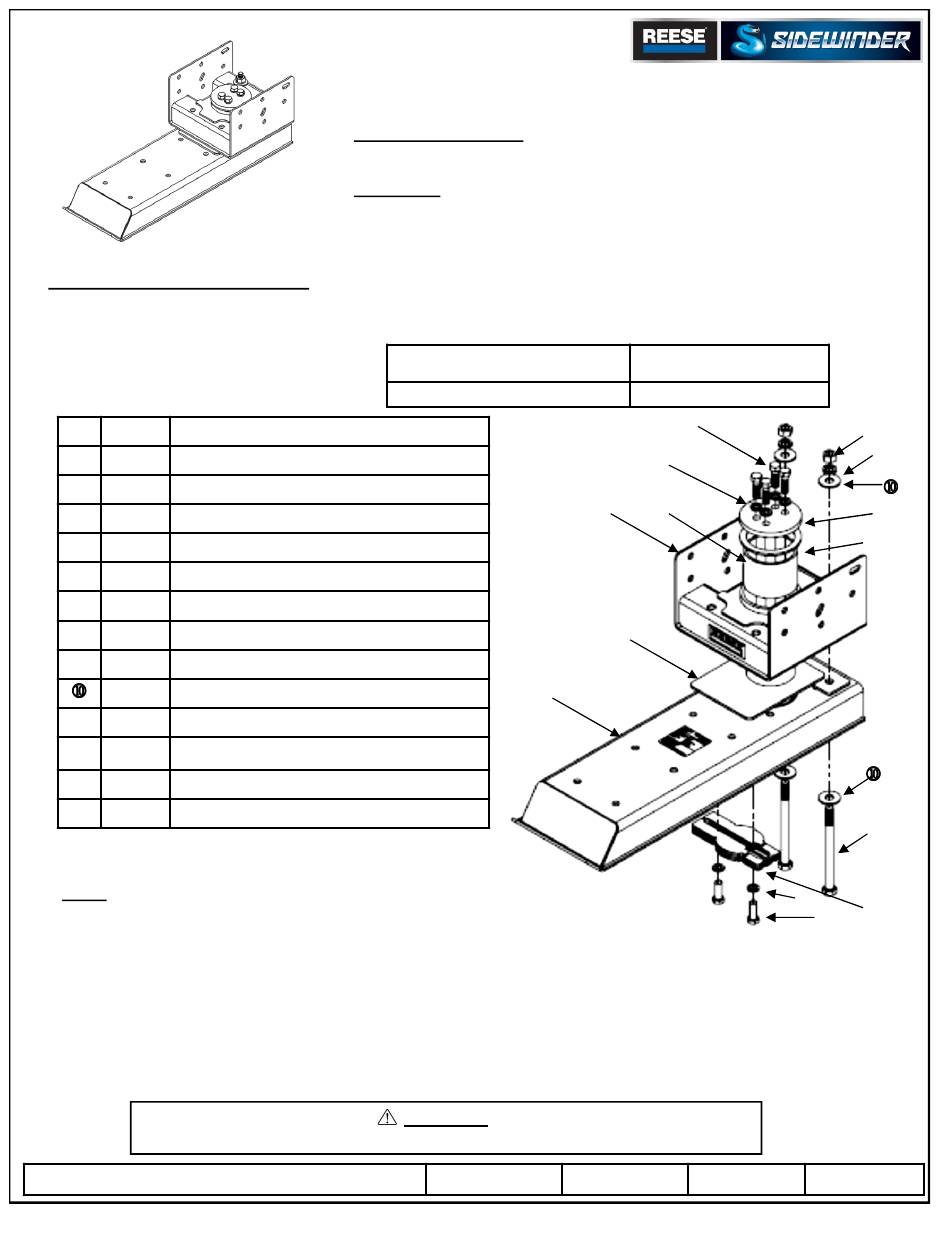

PIN BOX SHOWN ASSEMBLED
Equipment Required:
Fastener Kit: ST100F
Wrenches: 15/16", 1 1/8"
Drill Bits: Not Required
White Lithium Grease, Torque Wrench
1 1 1 1
Qty. (1)
Turret
2 2 2 2
Qty. (1)
Wear Plate
3 3 3 3
Qty. (1)
19K Sidewinder
4 4 4 4
Qty. (1)
Universal Wedge*
5 5 5 5
Qty. (6)
5/8" Conical Washer
6 6 6 6
Wedge Bolt, 5/8"-11 X 1 3/4" Grade 5 Hex Bolt w/ Nylon
Qty. (2)
7 7 7 7
Cap Bolt, 5/8" – 11 X 2" Grade 8 Hex Bolt w/ Adhesive
Qty. (4)
8 8 8 8
3/4" – 10 Hex Nut**
Qty. (2)
9 9 9 9
3/4" Lock Washer**
Qty. (2)
Qty. (4)
3/4" Flat Washer**
⑪ ⑪ ⑪ ⑪
Qty. (1)
Outer Cap
⑫ ⑫ ⑫ ⑫
Qty. (1)
Upper Wear Disc
⑬ ⑬ ⑬ ⑬
Qty. (1)
Pivot Bushing
⑭ ⑭ ⑭ ⑭
Qty. (2)
Convertible Bolts, 3/4" – 10 X 9" **
*Custom Wedges are available for most fifth wheel hitch applications, to order a custom
wedge kit, see your RV Dealer or contact CPP Technical Service: 1-800-632-3290.
**Included on OEM installed units only.
INDEX
1. GUIDELINES FOR MATCHING TOW VEHICLE AND TRAILER
2. ASSEMBLY INSTRUCTIONS
3. OPERATION INSTRUCTIONS
4. WEDGE ADJUSTMENT/SELECTION
5. HITCHING PROCEDURE,
PULL TEST, UNHITCHING PROCEDURE
6. BEFORE EACH TRIP
7. MAINTENANCE
8. NOTES
9. LIMITED LIFETIME WARRANTY
Failure to follow all of these instructions may result in death or serious injury!
2009, 2016 Cequent Performance Products - Printed in Mexico
©
Installation Instructions
19K Sidewinder
DEALER/INSTALLER:
(1) Provide this Manual to end user
END USER:
(1) Read and follow this Manual every time you use Sidewinder.
(2) Save this Manual for Future Reference.
(3) Pass on copies of Manual to any other users or owner.
Do Not Exceed Lower of Towing Vehicle Manufacturer's Rating,
TM
WARNING:
TM
Trailer Manufacturer's Rating or
Max Gross
Trailer WT (LB)
19,000 LB
1 1 1 1
2 2 2 2
3 3 3 3
P. 2-3
P. 4-6
P. 6-10
P. 7-8
P. 9-11
P. 11
P. 11
P. 12
P. 12
Sheet 1 of 12
SW19KIN
Part Number:
SW19K
Max Pin
WT (LB)
3,800 LB
7 7 7 7
5 5 5 5
⑬ ⑬ ⑬ ⑬
5 5 5 5
6 6 6 6
Figure 1
10/25/16
Form: F205 Rev A 5-6-05
8 8 8 8 ** ** ** **
9 9 9 9 ** ** ** **
** ** ** **
⑪ ⑪ ⑪ ⑪
⑫ ⑫ ⑫ ⑫
** ** ** **
⑭ ⑭ ⑭ ⑭ ** ** ** **
4 4 4 4 * * * *
Rev. K
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Reese 19K Sidewinder SW19K
Summary of Contents for Reese 19K Sidewinder SW19K
- Page 1 Installation Instructions 19K Sidewinder Part Number: SW19K DEALER/INSTALLER: (1) Provide this Manual to end user END USER: (1) Read and follow this Manual every time you use Sidewinder. (2) Save this Manual for Future Reference. (3) Pass on copies of Manual to any other users or owner. PIN BOX SHOWN ASSEMBLED Equipment Required: Do Not Exceed Lower of Towing Vehicle Manufacturer’s Rating,...
- Page 2 Installation Instructions 19K Sidewinder GUIDELINES FOR MATCHING TOW VEHICLE AND TRAILER WARNING: Failure to check and follow tow ratings could result in tow vehicle damage or truck and trailer separation while towing. •Trailer and its contents together must not exceed truck, hitch and/or trailer tow ratings. •Towing vehicle must have a manufacturer’s rated towing capacity equal to or greater than the gross trailer weight (dry weight of the trailer plus payload of the trailer).
- Page 3 WARNING: Check Compatibility of Your 5 Wheel Hitch With The Sidewinder or 5 Airborne Sidewinder For Reese Compatibility Information Visit our Website at: www.reeseprod.com Refer to the specific product page for Sidewinder or 5 Airborne Sidewinder for up to date 5 Wheel Hitch Compatibility.
- Page 4 Installation Instructions 19K Sidewinder ASSEMBLY INSTRUCTIONS – For Pre-Assembled OEM Models use this section as a point of reference. 1. Before removing the original pin box, take note of the number of bolts used attaching the existing pin box to the mounting wing set.
- Page 5 Installation Instructions 19K Sidewinder ASSEMBLY INSTRUCTIONS – CON’T 8. Before attempting to fully tighten the (4) 5/8-11 cap bolts, it is necessary to check that the upper wear disc is properly positioned. Refer to the figures below (figure 13). Note: Pivot tube is only expected to exceed height of tube in turret Upper Wear Disc Must Seat Around the...
- Page 6 Installation Instructions 19K Sidewinder ASSEMBLY INSTRUCTIONS – CON’T 10. Install the Sidewinder inside the mounting wings (Figure 15). Cequent Performance Products recommends replacing the mounting bolts, nuts, and lock washers with the same size & grade as the bolts removed from the original pin box. Torque all bolts to the proper value listed in table 1.
- Page 7 Hitch Select Series, Pro Series, Husky & Hitch Signature Series, Elite Series, & similar style fifth wheel heads. Select Plus, Reese Titan 16K & 20K, B&W and similar style fifth wheels. Relief Must Face Down for these applications in order to clear the jaw.
- Page 8 Installation Instructions 19K Sidewinder Activating the Sidewinder Feature Cont.: 3. Install the universal wedge into the position for Sidewinder feature activation (figure 19) , in the proper orientation for your fifth wheel. The bolts will not be fully tightened at this time. Only tighten the (2) 5/8-11 X 1 3/4”...
- Page 9 Installation Instructions 19K Sidewinder HITCHING PROCEDURE: IMPORTANT: YOU ARE RESPONSIBLE FOR SAFE HITCHING AND UNHITCHING OPERATIONS. DO NOT RELY ON OTHERS TO PERFORM THESE DUTIES. YOU MUST PERSONALLY MAKE SURE THE FOLLOWING STEPS ARE PERFORMED IN THE FOLLOWING ORDER! WARNING: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN DEATH OR SERIOUS INJURY.
- Page 10 Installation Instructions 19K Sidewinder 6. With: •All trailer wheels still firmly blocked in front and behind each tire, and •Truck stationary with the emergency brake on, and •Trailer landing gear still resting on firm ground and supporting trailer weight; and •Truck stationary and with emergency brake on: Connect electrical cable between truck and trailer, connect breakaway switch cable from pin box to a permanent part of truck, and raise tailgate of truck.
-
Page 11: Installation Instructions
Installation Instructions 19K Sidewinder BEFORE EACH TRIP: 1. CHECK YOUR EQUIPMENT: Check the condition of all of your towing equipment and keep it in top condition. 2. Check that the torque of the (4) cap bolts is 45 ft-lbs, refer to figure 14 in this manual. 3. -
Page 12: Limited Lifetime Warranty
Installation Instructions Part Number Purchased: 19K Sidewinder Place of Purchase: Date of Purchase: Part Manufactured Date (located on driver-side sticker): NOTES: LIMITED LIFETIME WARRANTY 1. Limited Lifetime Warranty (“Warranty”). Cequent Performance Products, Inc. (“We” or “Us”) warrants to the original consumer purchaser only (“You”) that the product will be free from material defects in both material and workmanship for a period of lifetime of ownership, ordinary wear and tear excepted;...
