• Mounts to TransRACK truck rack cross bars
• Stainless Steel hardware
• Light-weight Aluminum extrusion
• Extends support over the cab
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
TransRACK
Top Rail Kit
Cequent Consumer Products, Inc.,
29000-2 Aurora Road, Solon, OH 44139
HELP HOTLINE: 1-800-234-6992
www.cequentconsumerproducts.com
Date of Purchase
• Wear-resistant natural finish
• Aerodynamic design
• Increases stability of truck rack.
• No-drill installation
Product No.
70552
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Reese TransRACK 70552
Summary of Contents for Reese TransRACK 70552

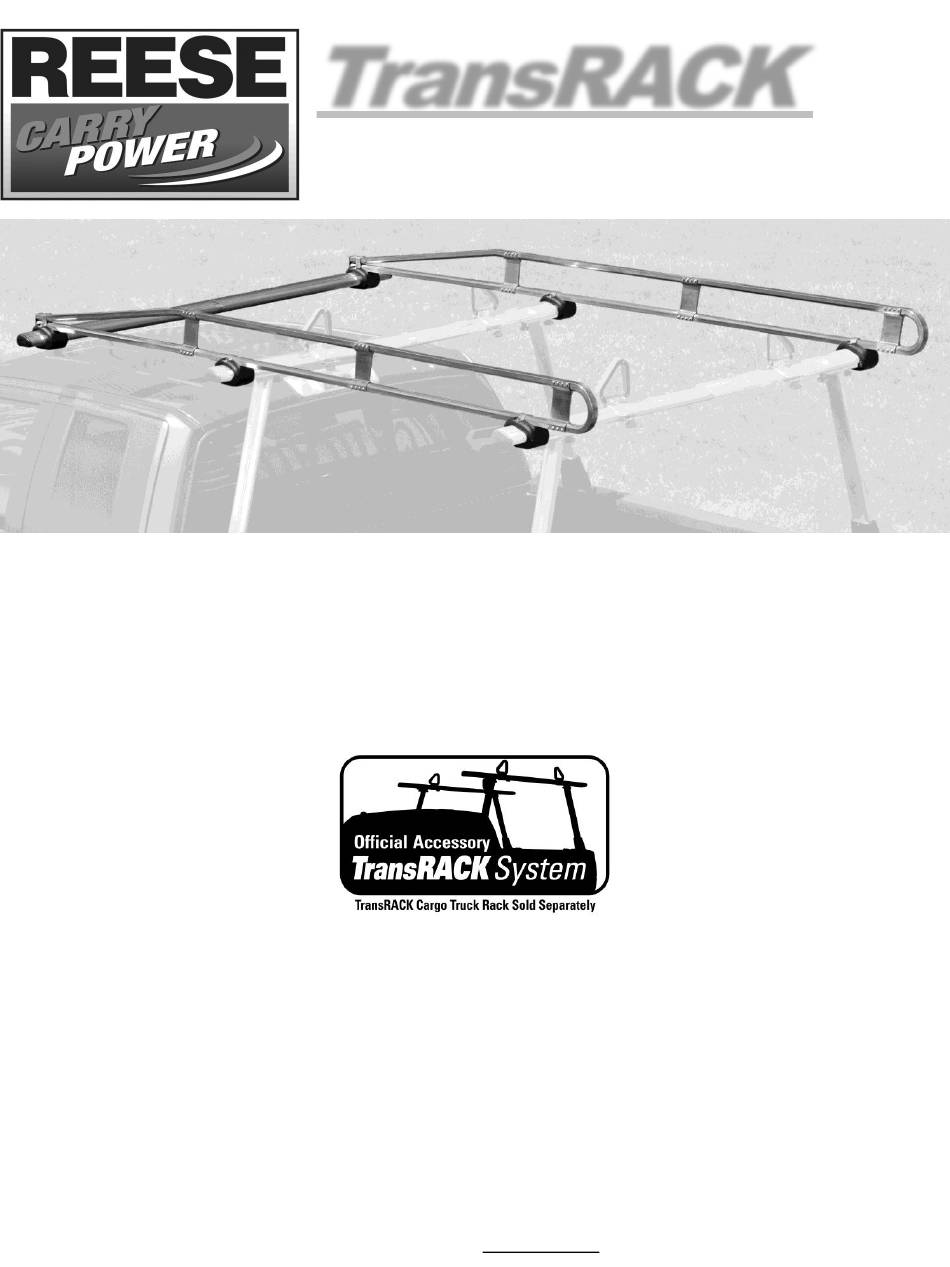

- Page 1 TransRACK Product No. 70552 Top Rail Kit • Wear-resistant natural finish • Mounts to TransRACK truck rack cross bars • Aerodynamic design • Stainless Steel hardware • Increases stability of truck rack. • Light-weight Aluminum extrusion • No-drill installation • Extends support over the cab THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
- Page 2 Cequent Consumer Products is not responsible for any property damage, personal injury, or death occurred while using any Reese Carry Power products. Retain these instructions for future reference. WARNING! •...
-
Page 3: Tools Required
TOOLS REQUIRED 3/16” Hex Key Phillips Screwdriver 5/16” & 7/16” Sockets PARTS INCLUDED (12) ¼-20 X ¾” HEX (48) 10-24 BOLT LOCK NUT (12) ¼-20 X ¾” (12) ¼” LOCK SOCKET HEAD CAP WASHER SCREW (48) 10-24 X 1-1/2” (12) ¼-20 X ½“ MACHINE SCREW SET SCREW (2) ANGLED RAILS... - Page 4 • Snap top cover onto top clamp. • Loosely thread two ¼-20 socket head cap screws through the bottom cover and clamp bottom into the clamp top as shown. Repeat this step 5 more times. Set these aside. • Assemble the two side rails starting at the rear. •...
- Page 5 • Slide (4) previously assembled clamps over the ends of your truck rack cross bars . • Do not tighten clamps. You may need to move them slightly in the next several steps.
- Page 6 • Place the previously assembled side rails into the channels of the previously installed clamps. • Attach the side rails to each of the four clamps with (1) short strap, (2) ¼-20 x ¾” long hex bolts and (2) ¼” lock washers on each clamp. •...
- Page 7 • Slide the assembled cross bar all the way through one of the clamps into the clamp on the other side rail. • Center the cross bar and tighten the ¼-20 X ¾” long socket head cap screw on the clamps..
- Page 8 This warranty applies solely to Carry Power TransRACK products manufactured by Cequent Consumer Products, Inc. and sold under the "Reese" brand (the "Product"). 1. Warranty. Cequent Consumer Products, Inc. warrants to the original consumer purchaser ("You") that the Product will be free from defects in material or workmanship for two years from the date of your retail purchase.
