IMPORTANT:
1.
SWAY CONTROL CANNOT BE USED ON TRAILERS WITH SURGE BRAKES.
2
2.
Trailer loading Proper trailer loading is o r first line defense against dangero s instabilit and s a
Trailer loading: Proper trailer loading is your first-line defense against dangerous instability and sway. Heavy items should be placed on
the floor in front of the axle. The load should be balanced side-to-side and secured to prevent shifting. Tongue weight should be about
10-15 percent of gross trailer weight for most trailers. Too low a percentage of tongue weight can cause sway. Load the trailer heavier in
front.
3.
The handle (5) is an on/off device. The bolt (7) below is for adjustment only.
4.
When towing during slippery conditions such as wet, icy, or snow-covered roads or on loose gravel, turn on/off handle (5)
counterclockwise until all tension is removed from unit. Failure to do so could prevent tow vehicle and trailer from turning properly.
5. `
Do not speed up if sway occurs. Sway increases with speed. Do not continue to operate a swaying vehicle. Check trailer loading, sway
control adjustment, and all other equipment, until the cause of sway has been determined and corrected.
6.
Never paint or lubricate slide bar (6).
For Installation Assistance or Technical Help, Call 1-800-758-0869

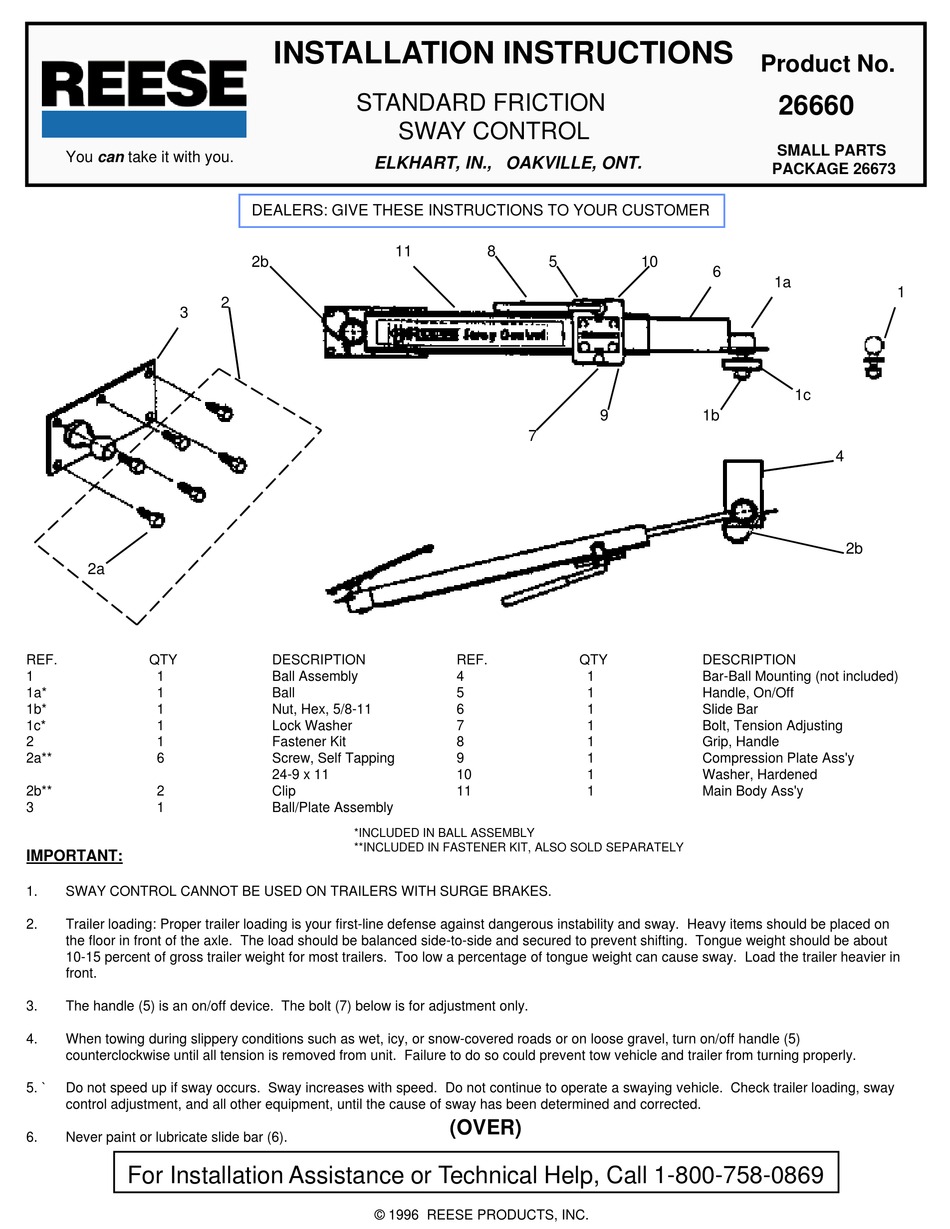

INSTALLATION INSTRUCTIONS

STANDARD FRICTION
SWAY CONTROL
ELKHART, IN., OAKVILLE, ONT.
DEALERS: GIVE THESE INSTRUCTIONS TO YOUR CUSTOMER
11
2b
2
2
DESCRIPTION
Ball Assembly
Ball
Nut, Hex, 5/8-11
Lock Washer
Fastener Kit
Screw, Self Tapping
24-9 x 11
Clip
Ball/Plate Assembly
*INCLUDED IN BALL ASSEMBLY
**INCLUDED IN FASTENER KIT, ALSO SOLD SEPARATELY
© 1996 REESE PRODUCTS, INC.
8
5
9
7
REF.
QTY
4
1
5
1
6
1
7
1
8
1
9
1
10
1
11
1
(OVER)
Product No.
26660
SMALL PARTS
SMALL PARTS
PACKAGE 26673
10
6
1a
1c
1b
DESCRIPTION
Bar-Ball Mounting (not included)
Handle, On/Off
Slide Bar
Bolt, Tension Adjusting
Grip, Handle
Compression Plate Ass'y
Washer, Hardened
Main Body Ass'y
Hea
items sho ld be placed on
1
4
4
2b
