Equipment Required:
Wrenches: 15/16", 1 1/8", Torque Wrench, Rubber Mallet
Included Service Kit Items:
1
Qty. (1)
Wear Plate
2
Pivot Bushing
Qty. (1)
3
Qty. (1)
Bearing Cup
4
Qty. (1)
Bearing
Bolt, 5/8"-11 X 1 3/4" Grade 5 Hex Bolt w/ Nylon
5
Qty. (2)
5/8" Conical Washer
6
Qty. (2)
7
Qty. (1)
Teflon Lube
8
Qty. (1)
Instructions
2016 Cequent Performance Products, Inc. - Printed in Mexico
16K Revolution Service Kit
Instructions
86016
Sheet 1 of 5
1
2

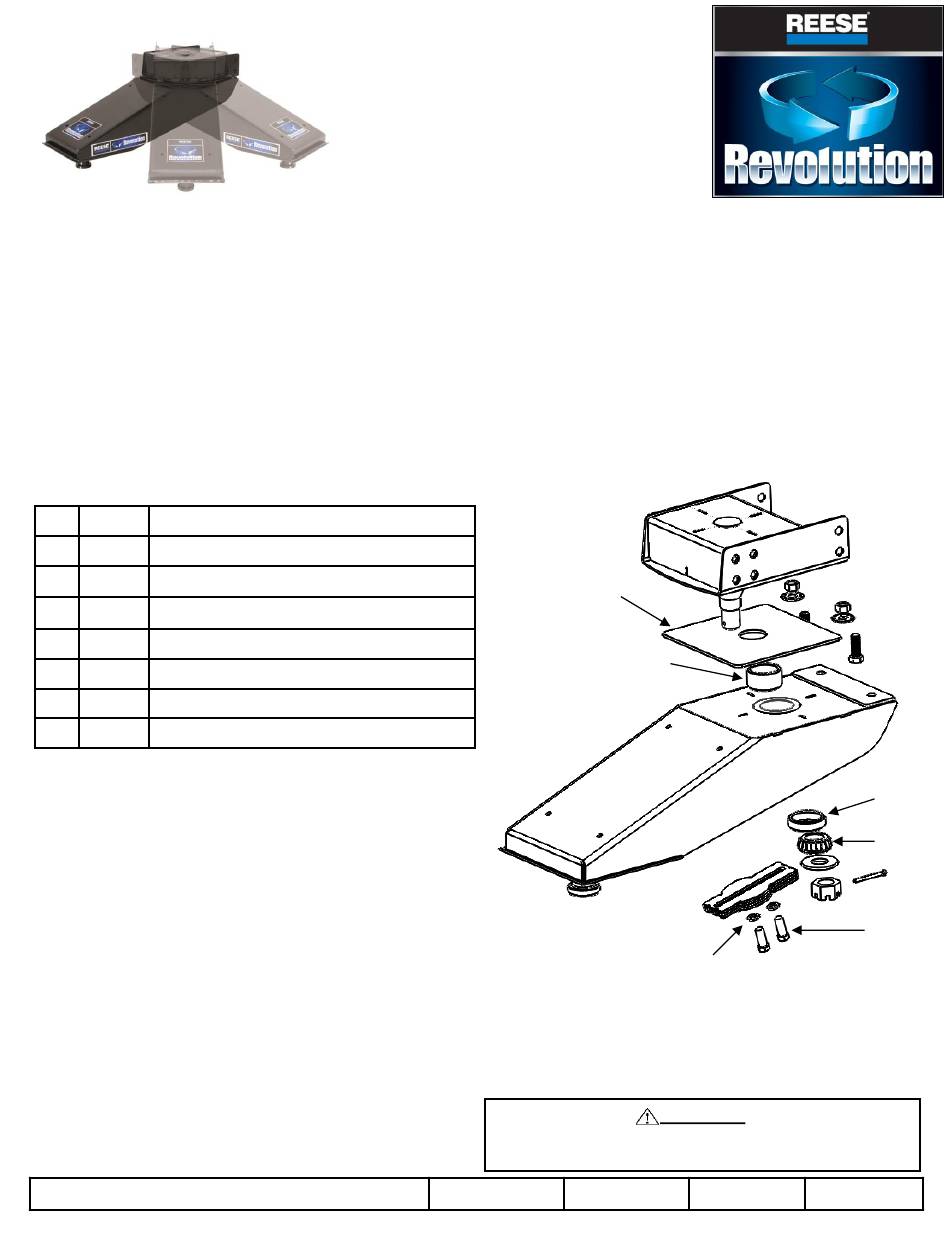

Figure 1
WARNING:
Failure to follow all of these instructions may result
in death or serious injury!
86016IN
5
6
8/30/16
Rev. A
Form: F205 Rev A 5-6-05
3
4
Advertisement
Table of Contents
Related Manuals for Reese Revolution 86016
Summary of Contents for Reese Revolution 86016
- Page 1 16K Revolution Service Kit Instructions 86016 Equipment Required: Wrenches: 15/16”, 1 1/8”, Torque Wrench, Rubber Mallet Included Service Kit Items: Qty. (1) Wear Plate Pivot Bushing Qty. (1) Qty. (1) Bearing Cup Qty. (1) Bearing Bolt, 5/8”-11 X 1 3/4” Grade 5 Hex Bolt w/ Nylon Qty.
- Page 2 16K Revolution Service Kit Instructions 1. Remove the Revolution and Turret from the trailer. Make note of the bolt locations onto the trailer wings. 2. Place the unit on a bench and remove the Turret and all the hardware that is going to be replaced. A rubber mallet and a screwdriver may be needed to remove the old pivot bushing from the Revolution arm.
- Page 3 Orientation for Reese/Draw-Tite/Hidden Hitch Select Series, Pro Series, Husky & Hitch Signature Series & Select Plus, similar style fifth wheel heads. Reese Titan 16K & 20K, B&W and similar style fifth wheels. Relief Must Face Down for these applications in order to clear the jaw.
- Page 4 16K Revolution Service Kit Instructions Activating the Revolution Feature Con’t: 3. Install the universal wedge into the position for the Revolution feature activation (figure 7) , in the proper orientation for your fifth wheel. The bolts will not be fully tightened at this time. (figure 7) Only tighten the (2) 5/8-11 X 1 3/4”...
- Page 5 Part Number Purchased: Place of Purchase: Date of Purchase: BEFORE EACH TRIP: 1. CHECK YOUR EQUIPMENT: Check the condition of all of your towing equipment and keep it in top condition.. 2. Check to see that all bolts are properly tightened. 3.
