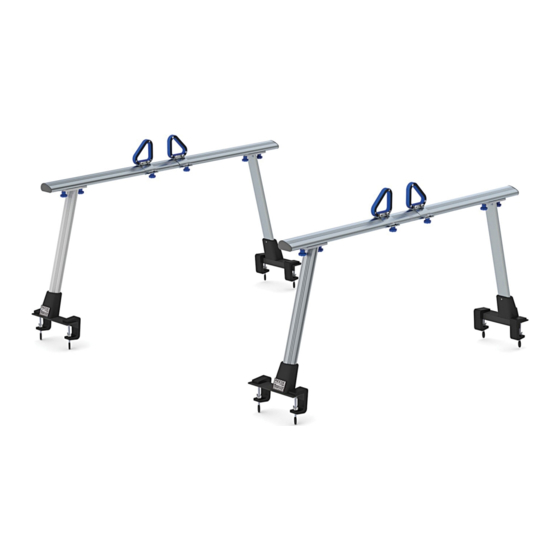

Fully adjustable, fits all pick-up trucks
•
Stainless Steel hardware
•
Light-weight Aluminum extrusion
Read, understand and follow all warnings and instructions before using this product. Failure to follow these
directions may result in property damage, serious bodily injury, and/or death.
Cequent Consumer Products is not responsible for any property damage, personal injury, or death occurred
while using any Reese Carry Power products.
Retain these instructions for future reference.
800 LB Capacity
•
Wear-resistant natural finish
•
Aerodynamic design
•
Double Lock anchor points
CAUTION!
Product No. 70547
•
Easy-on bar clamps
•
No-drill installation
Advertisement
Table of Contents
Related Manuals for Reese Carry Power TransRACK
Summary of Contents for Reese Carry Power TransRACK

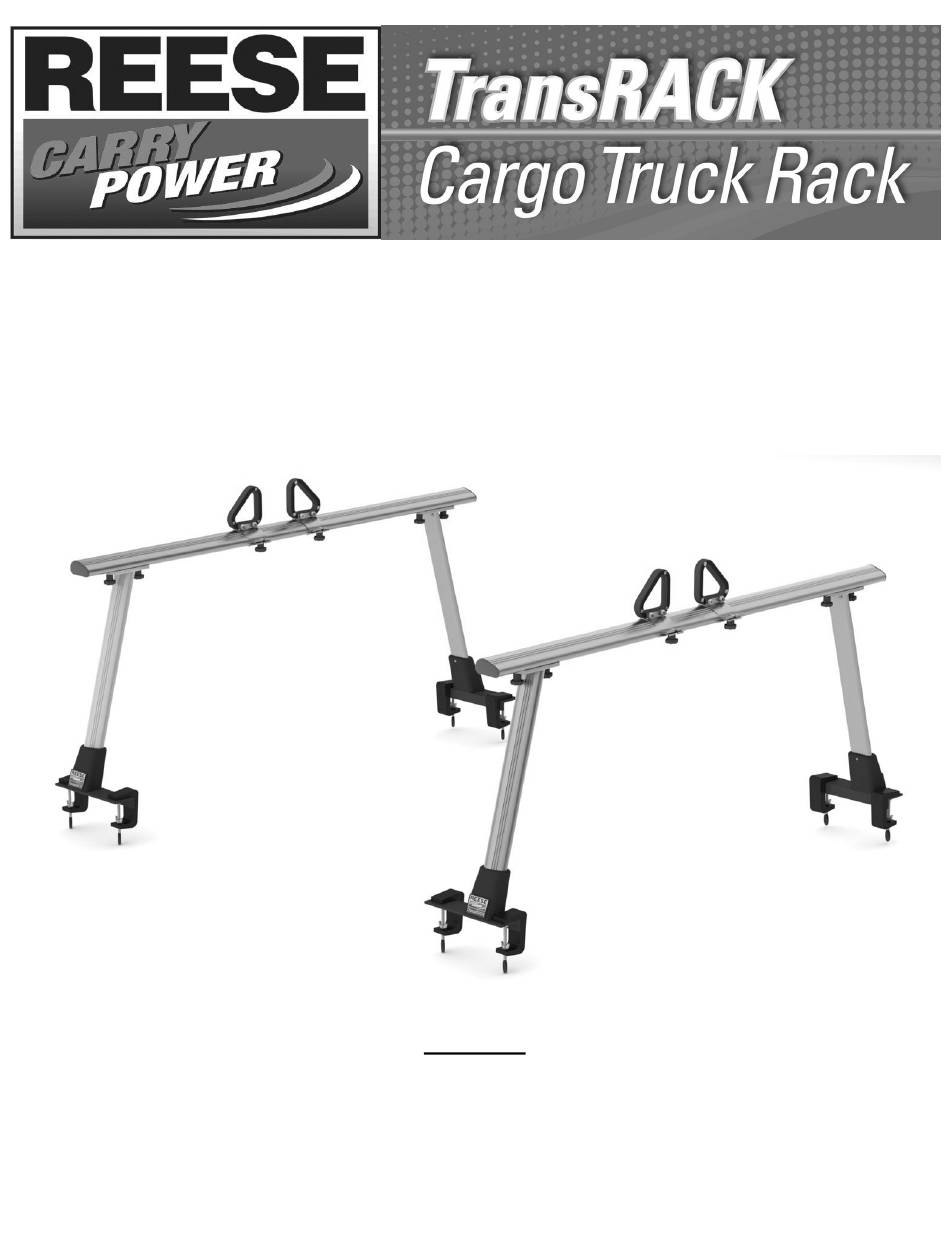

- Page 1 Read, understand and follow all warnings and instructions before using this product. Failure to follow these directions may result in property damage, serious bodily injury, and/or death. Cequent Consumer Products is not responsible for any property damage, personal injury, or death occurred while using any Reese Carry Power products. Retain these instructions for future reference.
- Page 2 WARNING! Do not exceed the lesser of the maximum load capacity of 800 lbs. (evenly distributed) or the vehicle manufacturer’s specified load capacity for rail mounted accessories. “Distributed load” is defined as a load that is not concentrated in a small area. ...
- Page 3 Parts Included Assembly of Vertical Supports STEP 3: Insert two 3/8-16 x 2” long square neck STEP 1: Slide plastic cover over vertical support. bolts through the two square holes in the back of the base and through the vertical support. STEP 2: Slide vertical support into base.
- Page 4 STEP 4: Place a 3/8” lock washer on each bolt. STEP 5: Slide plastic cover down over base. Then, place a 3/8-16 hex nut on each bolt and tighten with a 9/16” wrench. STEP 6: Tighten ¼-20 set screw using a 1/8” hex key just enough to keep cover from moving.
- Page 5 Vehicle Installation Step 15: Tighten wing nut against bottom of Step 14: Attach clamp and tighten. clamp. Step 13: Choose a location for an assembled vertical support. The long leg of the base should point towards the inside of the truck bed. Repeat 4 times.
- Page 6 Use of load stops Load stops can be positioned anywhere along cross bar. Use flat sides towards each for securing rectangular loads and angled sides towards each other to secure semi-circular loads. Place your cargo on the load bars. Place a load stop on either side of the cargo. Slide load stops in toward cargo until they contact the cargo.
- Page 7 REESE TwoYear Limited Warranty This warranty applies solely to Carry Power TransRACK manufactured by Cequent Consumer Products, Inc. and sold under the "Reese" brand (the "Product"). 1. Warranty. Cequent Consumer Products, Inc. warrants to the original consumer purchaser ("You") that the Product will be free from defects in material or workmanship for two years from the date of your retail purchase.
