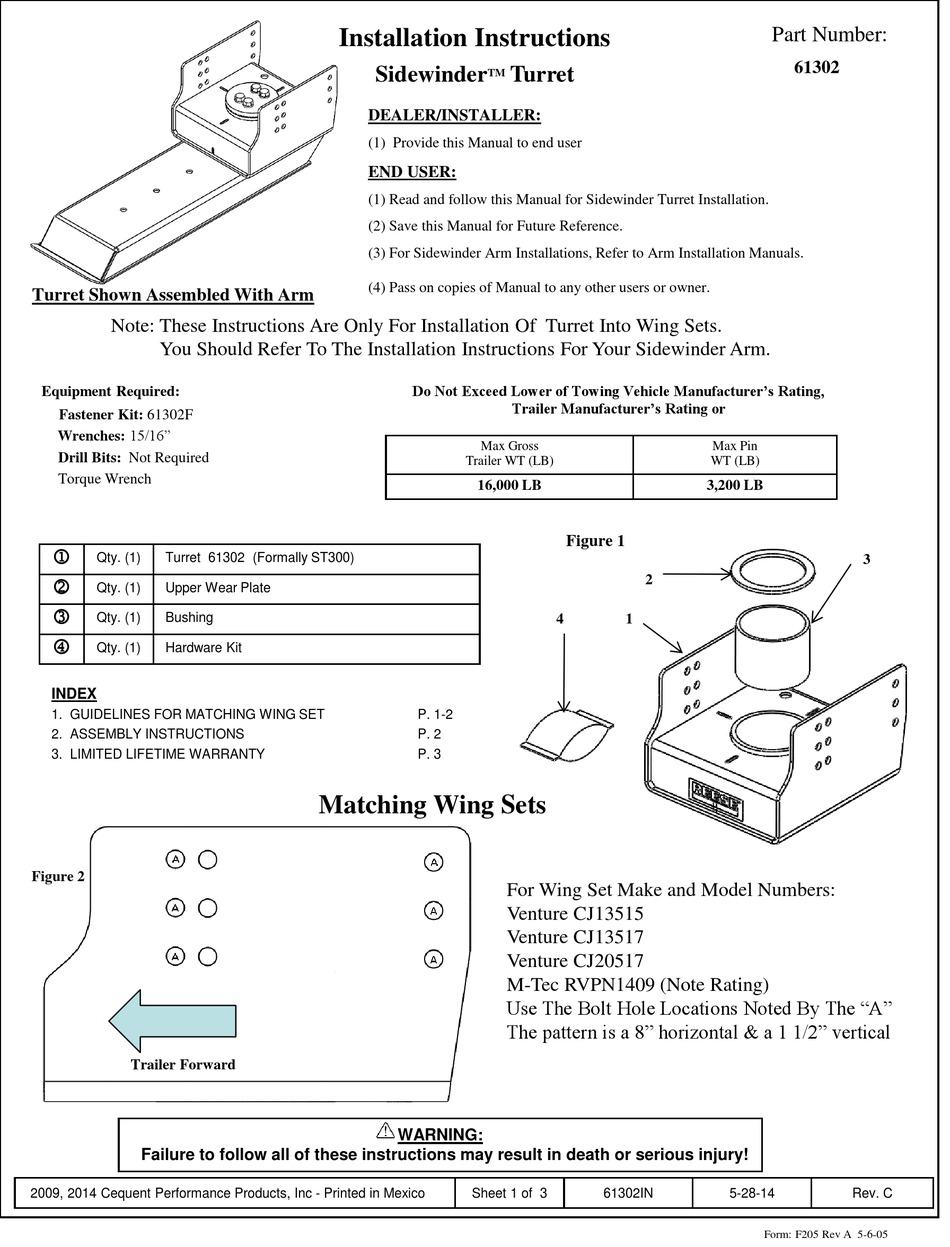

Reese Sidewinder 61302 Installation Instructions Manual

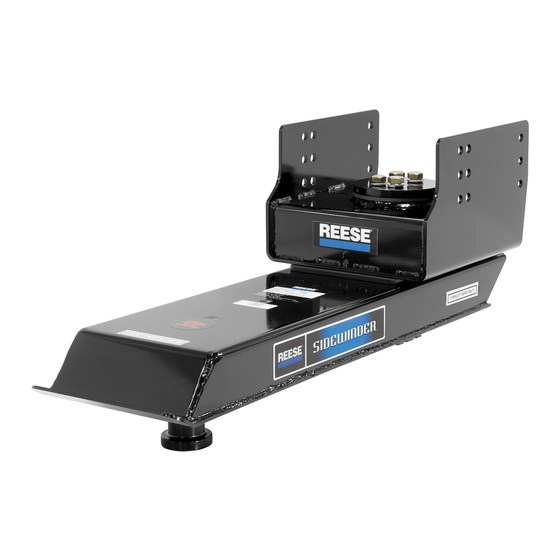

Turret Shown Assembled With Arm
Note: These Instructions Are Only For Installation Of Turret Into Wing Sets.
You Should Refer To The Installation Instructions For Your Sidewinder Arm.
Equipment Required:
Fastener Kit: 61302F
Wrenches: 15/16"
Drill Bits: Not Required
Torque Wrench
j
Qty. (1) Turret 61302 (Formally ST300)
k
Qty. (1) Upper Wear Plate
l
Qty. (1) Bushing
m
Qty. (1) Hardware Kit
INDEX
1. GUIDELINES FOR MATCHING WING SET
2. ASSEMBLY INSTRUCTIONS
3. LIMITED LIFETIME WARRANTY
Figure 2
Trailer Forward
Failure to follow all of these instructions may result in death or serious injury!
2009, 2014 Cequent Performance Products, Inc - Printed in Mexico
Installation Instructions
Sidewinder
TM
DEALER/INSTALLER:
(1) Provide this Manual to end user
END USER:
(1) Read and follow this Manual for Sidewinder Turret Installation.
(2) Save this Manual for Future Reference.
(3) For Sidewinder Arm Installations, Refer to Arm Installation Manuals.
(4) Pass on copies of Manual to any other users or owner.
Do Not Exceed Lower of Towing Vehicle Manufacturer's Rating,
Max Gross
Trailer WT (LB)
16,000 LB
P. 1-2
P. 2
P. 3
Matching Wing Sets
WARNING:
Sheet 1 of 3
Turret
Trailer Manufacturer's Rating or
Figure 1
2
4 1
For Wing Set Make and Model Numbers:
Venture CJ13515
Venture CJ13517
Venture CJ20517
M-Tec RVPN1409 (Note Rating)
Use The Bolt Hole Locations Noted By The "A"
The pattern is a 8" horizontal & a 1 1/2" vertical
61302IN
Part Number:
61302
Max Pin
WT (LB)
3,200 LB
3
5-28-14 Rev. C
Form: F205 Rev A 5-6-05
