WARNING:
Under no circumstances do we recommend exceeding the towing vehicle manufacturers recommended vehicle towing capacity.
READ ALL INSTRUCTIONS BEFORE STARTING THE INSTALLATION
®

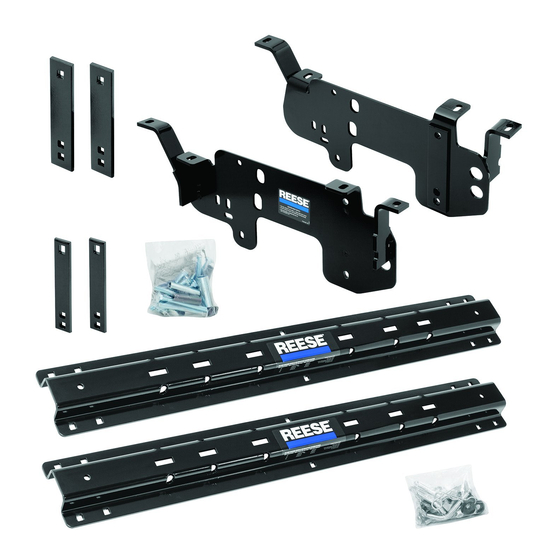

REESE
Custom Quick Install mounting brackets only include the hardware to attach the custom brackets to the frame.
10 BOLT INSTALLATION
All Fasteners
Typical Both Sides
Vehicle Forward
Ground wire holes
6
4
ITEM
DESCRIPTION
1
STRAP FRONT (1.500" WIDE)
2
DRIVER SIDE BRACKET
3
PASSAGER SIDE BRACKET
4
LOCKWASHER 1/2" PLATED
5
BOLT, CARRIAGE 1/2"-13X4.500" GR8
6
NUT, HEX 1/2"-13 GRADE 8
©
2013 Cequent Performance Products, Inc.
Installation Instructions
®
REESE
CUSTOM QUICK INSTALL MOUNTING KIT
FOR 30153 REESE
2003 - 2013 Dodge Ram 2500
5
11
1
8
QUANTITY ITEM
2
1
1
8
10
8
®
RAILS ONLY
10
2
DESCRIPTION
7
CABLE TIE 8.500"
8
BUSHING 2.937"
9
BUSHING REAR 2.60" BLACK
10
STRAP REAR (2.000" WIDE)
11
BUSHING 2.773"
Rev. B
Equipment Required:
Fastener Kit: 56011F
Wrenches: 3/4", 10mm
Drill Bits: 1/8", 9/16" & 1 1/4" Hole saw
Other Tools: Center Punch, Measuring Tape
& Reciprocating Saw (for 6' bed)
7
3
5

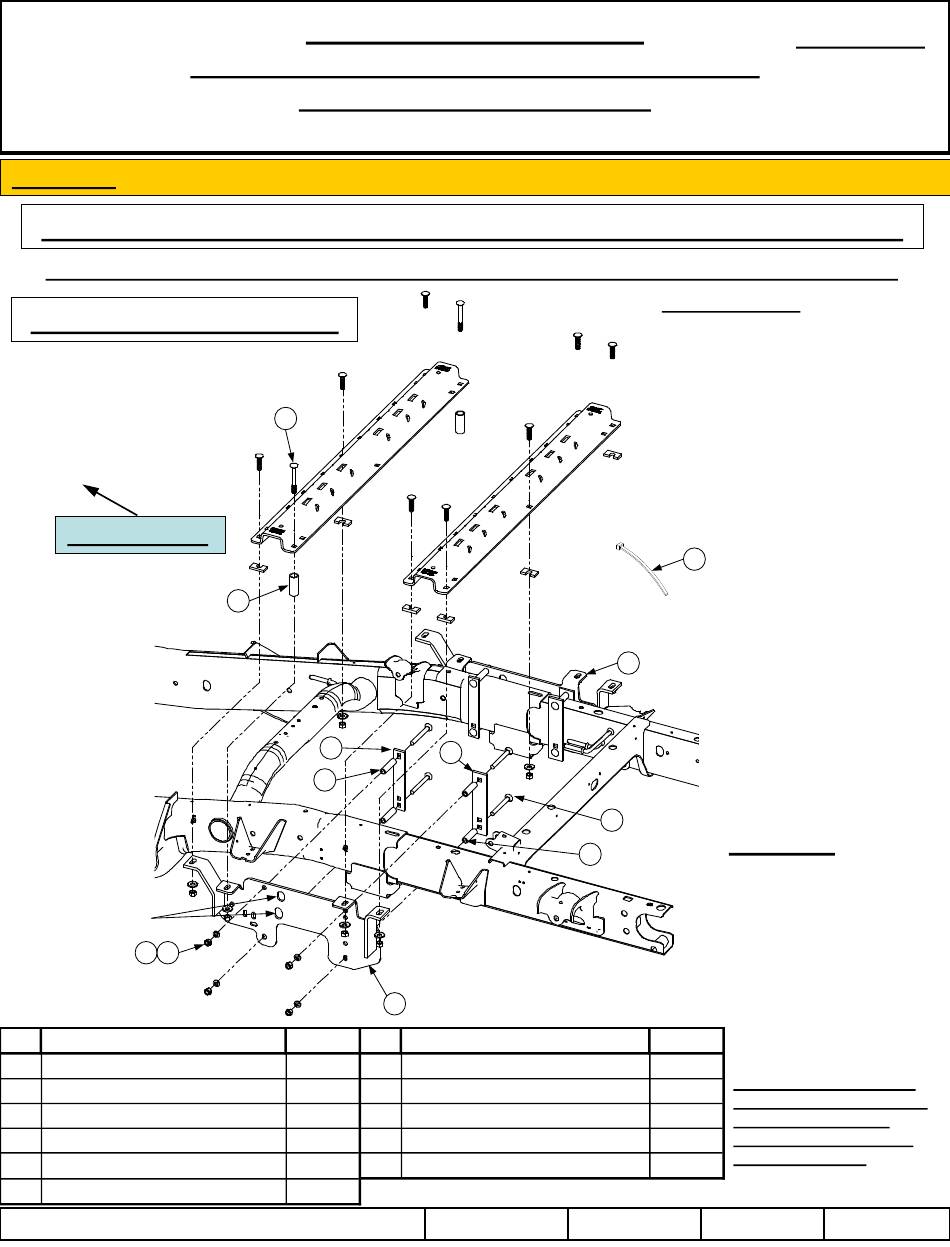

Figure 1
9
QUANTITY
1
All of the fasteners listed to
4
the left are supplied with this
4
kit, all other mentioned
fasteners are supplied with
2
part number 30153.
2
56011N
7/10/13
Part Number:
56011
1
Advertisement
Table of Contents
Related Manuals for Reese 56011
Summary of Contents for Reese 56011
- Page 1 56011 ® REESE CUSTOM QUICK INSTALL MOUNTING KIT ® FOR 30153 REESE RAILS ONLY 2003 - 2013 Dodge Ram 2500 WARNING: Under no circumstances do we recommend exceeding the towing vehicle manufacturers recommended vehicle towing capacity. READ ALL INSTRUCTIONS BEFORE STARTING THE INSTALLATION ®...
-
Page 2: Installation Instructions
Do not install mounting rails over plastic bed liners. Plastic bed liners must be cut out of the way to provide metal to metal contact. Mounting rails may be installed on spray in liners. Use only bolts, nuts, and washers supplied to install this kit. All bolts and nuts are Grade 8 unless otherwise specified. -
Page 3: Front Of Vehicle
6.5’ truck boxes only - cut off the extension attached to the truck box support beams. Figure 2 DIMENSIONS SPECIFIC FOR RAIL KIT 30153 30 1/8" LONG BED 28 1/8" SHORT BED CENTER BOLT CENTER BOLT C L OF HITCH FRONT OF VEHICLE HITCH SUPPORT / SLIDER / MOUNTING RAIL... -
Page 4: For Installers
® REESE Custom quick install mounting kit for 30153 REESE rails kit only. Do not install mounting rails over plastic bed liners. Plastic bed liners must be cut out of the way. Base rails may be installed on spray in liner. Note: Consult installer for recommended curing time. -
Page 5: Instrucciones De Instalación
LEA TODAS LAS INSTRUCCIONES ANTES DE EMPEZAR LA INSTALACIÓN ® Los soportes de montaje de instalación rápida a la medida REESE sólo incluyen las piezas para instalar los soportes a la medida al bastidor. Equipo necesario: INSTALACIÓN DE 10... - Page 6 No instale largueros de montaje sobre los forros plásticos de la base. Los forros plásticos de la base deben cortarse para permitir contacto de metal a metal. Los largueros de montaje se pueden instalar en forros aplicados con spray. ...
- Page 7 Cajas de camión de 6.5’ únicamente - corte la extensión unida a las vigas de apoyo de la caja Figura 2 del vehículo. DIMENSIONES ESPECÍFICAS PARA EL KIT DE LARGUEROS 30153 BASE LARGA BASE LARGA 30 1/8” LONGBED 30 1/8" LONG BED 28 1/8”...
-
Page 8: Responsabilidades Del Propietario
Para los instaladores ® Para el número de parte correspondiente del kit de montaje de instalación rápida a la medida REESE así como para la última revisión de las instrucciones de instalación, consulte (www.REESEPROD.COM). ® ® 1.Kit de instalación rápida a la medida REESE 30153 para kit de largueros Reese únicamente. -
Page 9: Instructions D'installation
LIRE TOUTES LES INSTRUCTIONS AVANT L'INSTALLATION ® Les supports du nécessaire de montage rapide sur mesure REESE ne comprennent que la visserie nécessaire à la fixation des supports sur mesure sur le cadre. - Page 10 N'installez pas les traverses sur la doublure de caisse en plastique. La doublure de caisse en plastique doit être découpée pour permettre le contact métal à métal. Les traverses peuvent être installées sur une doublure pulvérisée en place. Utilisez seulement les boulons, les écrous et les rondelles fournis pour installer ce produit.
- Page 11 Caisse de 6,5 pi seulement : couper le prolongement fixé aux poutres de soutien de la caisse. Figure 2 DIMENSIONS SPÉCIFIQUES POUR ENSEMBLE DE TRAVERSES DE MONTAGE 30153 Platef. long. 30 1/8 30 1/8" LONG BED Platef. Long. 30-1/8 28 1/8" SHORT BED Platef.
-
Page 12: Responsabilités Du Propriétaire
1. Nécessaire de montage rapide sur mesure REESE® pour traverses 30153 REESE ® seulement. N'installez pas les traverses de montage sur la doublure de caisse en plastique. La doublure de caisse en plastique doit être découpée pour libérer l'accès. Les traverses peuvent être installées sur une doublure pulvérisée en place.
