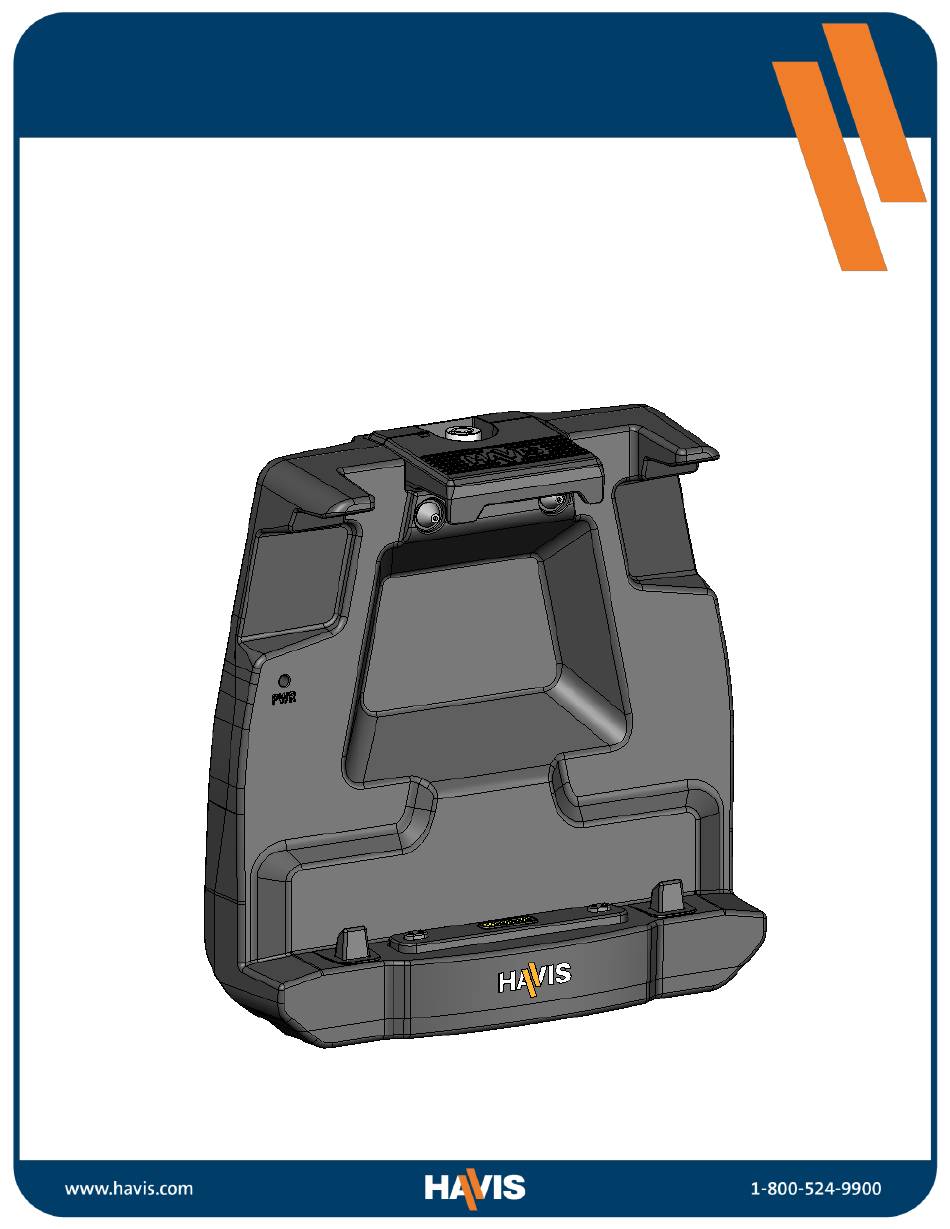

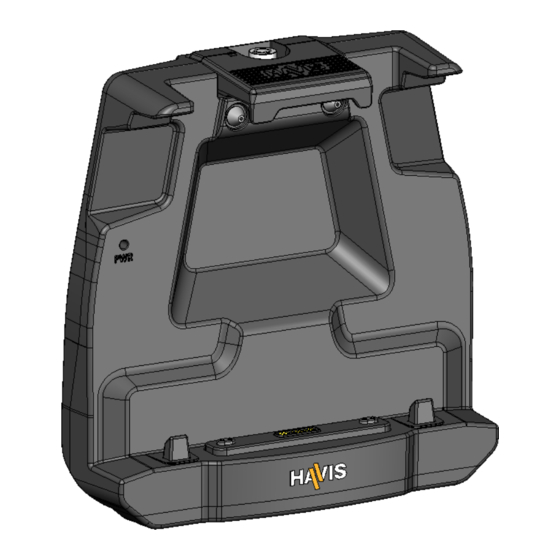

- Page 1 Owner’s Manual Havis Docking Station For Dell Latitude 7230 Rugged Extreme Tablet DS-DELL-900 Series DS-DELL-901 DS-DELL-902 DS-DELL-903 DS-DELL-901-4 DS-DELL-902-4 DS-DELL-903-4 DS-DELL-900-SERIES-OMN_12-22...
- Page 2 Before Beginning Havis is pleased to provide this Owner’s Manual to aid in the proper installation and use of the DS-DELL-900 Series Docking Station for the 7230 Latitude Rugged Extreme Tablet For questions regarding the set-up of your DS-DELL-900 Series Docking Station, please contact Havis at 1-800-524-9900 or visit www.havis.com for additional product support and information.
-
Page 3: Table Of Contents
Table of Contents Specifications…………………………………………….............. Parts included………………………………………………………………………………………………………. Antenna Identification………………………………….…………………………………………………..Port Replication Capability………………………………………….………………………………..Installation and Cable Management………………………………………………………………..Operation – Docking………………………………………………………………………......Operation – Undocking………………………………………………………………………………………… Precautions • Do not place metal objects or containers of liquid on top of the Docking Station • If a malfunction occurs, immediately unplug the power cable and remove the tablet •... -
Page 4: Specifications
Specifications 3.5” 10” 89 mm 254 mm Unlatched Latched 10.7 ” 10.2 ” 272 mm 259 mm VESA 75 Mounting Pattern M4 x 0.7 Thread 2.95” 75 mm DOCK CENTERLINE... -
Page 5: Parts Included
Parts Included Barrel Lock Latch Handle Bumpers LED Power Indicator Docking Connector Alignment Posts Strain Relief VESA 75 Mounting Side USB Port Ports Strain Relief Antenna Ports Power Cable (For DS-DELL-901, DS-DELL-901-4, DS-DELL- 902, DS-DELL- 902-4... -
Page 6: Antenna Identification
Parts Included (continued) Hardware Kit (HWK-0031) This Hardware Kit includes: 1. Zip Ties (4) 2. Keys (2) 3. M4 x 0.7 x 20mm long Pan Head Screws (5) 4. Split Lock Washers (5) 5. Washers, M4 (5) Tools required for installation: •... -
Page 7: Port Replication Capability
Port Replication Capability Rearward Facing Ports – Advanced Electronics DS-DELL-902, DS-DELL-902-4 [SHOWN] Power USB 3.0 Display Ethernet Serial Input (12v) (2X) Output RJ45 TYPE-C Rearward Facing Ports – Standard Electronics DS-DELL-901, DS-DELL-901-4 [SHOWN] Power USB 3.0 Ethernet Serial Input (12v) (2X) RJ45 TYPE-C... - Page 8 Port Replication Capability Side Facing Ports DS-DELL-901, DS-DELL-901-4, DS-DELL-902, DS-DELL-902-4 USB 3.0...
- Page 9 Head screws with washers and lock washers from the hardware kit (HWK-0031) to fasten the docking station to the motion device (Hardware Kit Items 3, 4 & 5). Torque screws to 80 in-lbs (9.0 Nm) ± 10% A) HAVIS In-vehicle mounting system installation (Sold separately) Hardware Kit Item Numbers...
- Page 10 Cable Management 2. Install all of the cables that are necessary for your computing needs. Use zip ties (Hardware Kit Item 1) to strain relieve cables to strain relief points, routing all cables together so they can be attached to the mounting system Use as many zip ties as necessary...
-
Page 11: Operation - Docking
Operation - Docking ⚠ CAUTION ⚠ CAUTION DO NOT FORCE TABLET ONTO DOCKING STATION. IF THERE IS RESISTANCE, CHECK THE ALIGNMENT OF THE TABLET ON DOCKING STATION Ensure docking station is unlatched by pressing the lock button on the top of the docking station. Hold the tablet in the landscape orientation, with the bottom side angled towards the docking station. - Page 12 Operation – Docking (Continued) Pivot the top of the tablet into the docking station and apply light rearward pressure to the top center of tablet or handle. Apply pressure until the tablet is fully seated. Secure tablet by closing the latch, push downward until you hear the click of the latch which indicates the latch is securely closed.
-
Page 13: Operation - Undocking
Operation - Undocking If previously locked, unlock Docking Station using the supplied key. While securely holding the tablet, push the lock button on the top of the docking station until the latch hook releases. Once unlatched, remove the tablet by rocking the top of the tablet away from the docking station and carefully lift out of the docking station, top end first. - Page 14 DO NOT CONNECT ANY ADDITIONAL POWER SUPPLY TO THE TABLET WHEN IT IS DOCKED. MULTIPLE POWER SUPPLIES WILL CAUSE DAMAGE TO THE TABLET NOTE: THIS DOES NOT APPLY TO THE DS-DELL-903 & DS-DELL-903-4 CONFIGURATION (THESE DO NOT HAVE AN INTERNAL SUPPLY AND NEED TO BE POWERED WITH THE EXTERNAL PORT WHEN DOCKED).
- Page 15 * Accessory is standalone and is not meant to be attached to the device. Related Products Havis offers a wide variety of accessory products specifically for use with your Docking Station. For more information or to order, please visit www.havis.com.
