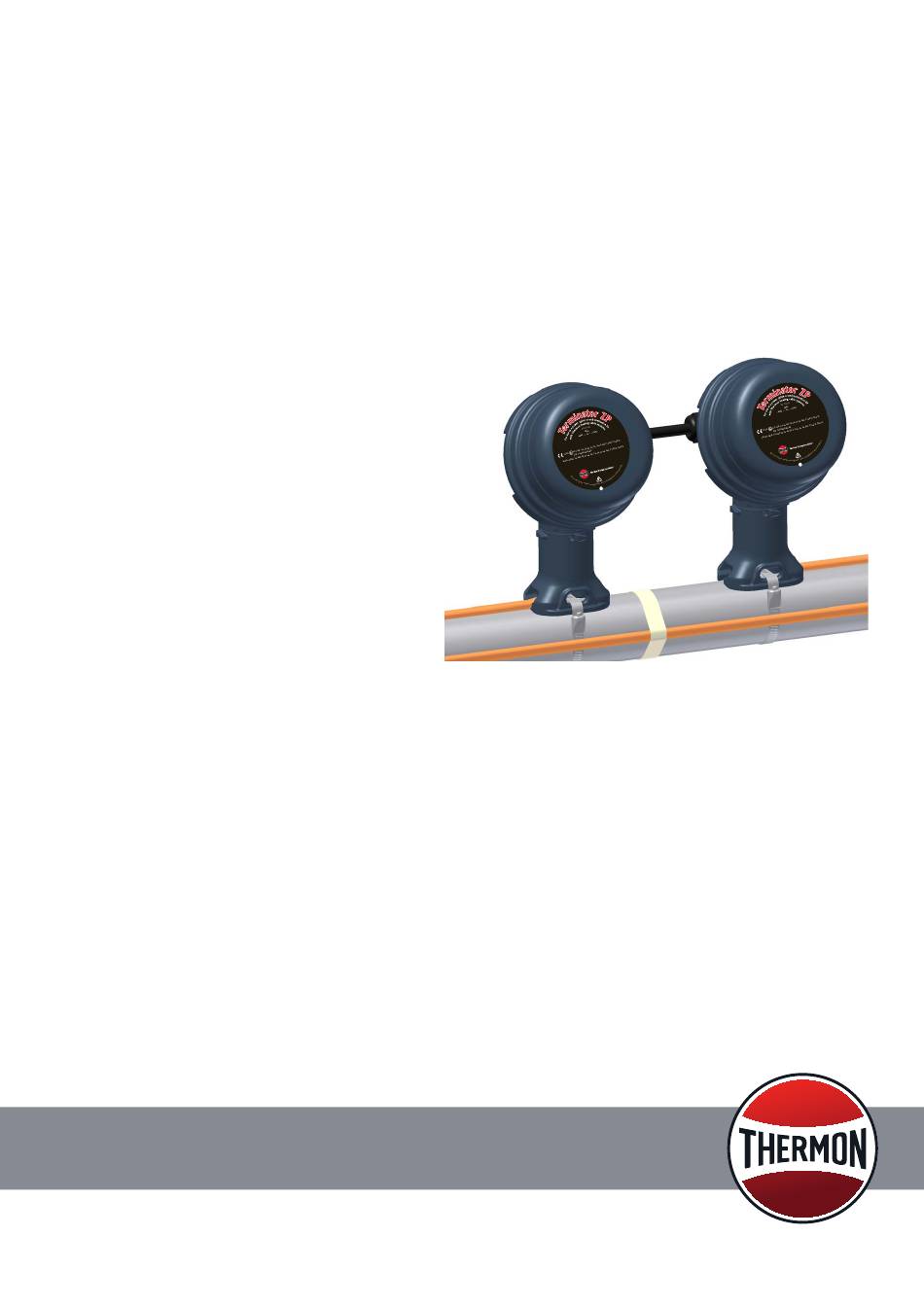

- Page 1 Terminator ZP-MS ™ Connection Kit INSTALLATION PROCEDURES For use with TEK and HTEK series constant watt heating cables for In-Line Splice Connection...
-
Page 2: Kit Contents
EN IEC 60079-14 for hazardous areas (where applicable), or any other applicable national and local codes. • Component approvals and performance ratings are based on the use of Thermon specified parts only. • De-energize all power sources before opening Item... -
Page 3: Installation Procedures
INSTALLATION PROCEDURES Cable Type Cable Type Cable Type HTEK 3C60 HTEK 3C40 HTEK 2C50 HTEK 3C50 HTEK 3C30 HTEK 2C40 TEK 3C70 HTEK 2C70 HTEK 2C30 HTEK 2C60 TEK 3C40 TEK 3C60 TEK 3C30 TEK 3C50 TEK 2C60 TEK 2C70 TEK 2C50 TEK 2C40 TEK 2C30... - Page 4 Terminator ZP-MS ™ Separate braid strands at edge of Cut and remove pairing jacket by Remove insulation and fiberglass overjacket and pull cable through scoring pairing jacket and bending braid (HTEK only) from ends of each opening in braid. Twist braid into a cable.
-
Page 5: Wiring Details
INSTALLATION PROCEDURES Wiring Details Cable #2 Cable #1 PN 27652 IP66 -60°C ≤ Ta ≤ + 55°C 1725 II 2 GD Ex eb IIC T4-T6, Ex tb IIIC T135°C-T85°C, FM 10ATEX0058X IECEx FMG 10.0022X Ex eb IIC T4-T6, Ex tb IIIC T135°C-T85°C Typical Wiring Details: 3 Conductor Use screwdriver to ratchet on junction Lid latch mechanism fully engaged. - Page 6 European Headquarters: Boezemweg 25 • PO Box 205 • 2640 AE Pijnacker • The Netherlands • Phone: +31 (0) 15-36 15 370 Corporate Headquarters: 100 Thermon Dr • PO Box 609 San Marcos, TX 78667-0609 • Phone: 512-396-5801 • 1-800-820-4328 For the Thermon office nearest you visit us at .
