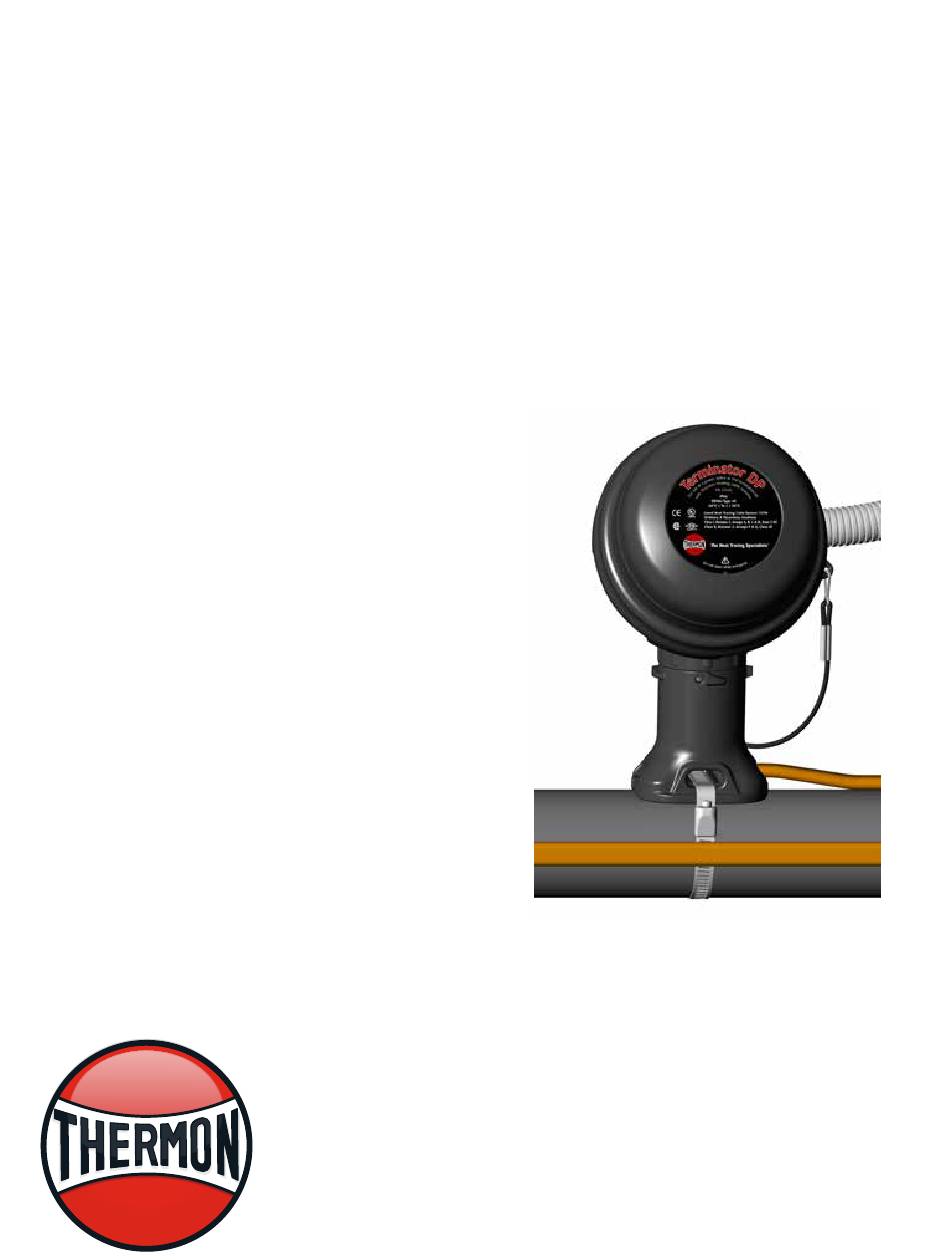

- Page 1 Terminator DP-M Power Connection Kit for Power Connection, In-Line Splice Connection, T-Splice Connection, or End Termination Applications INSTALLATION PROCEDURES...
- Page 2 Support Cap with O-Ring • Component approvals and performance ratings are based on Threaded Grommet Compressor the use of Thermon specified parts only. User supplied power Grommet connection fittings must be listed or certified for intended use. Support Base with O-Ring •...
-
Page 3: Installation Procedures
INSTALLATION PROCEDURES Cable Type Cable Type Cable Type HTEK 3C60 HTEK 3C40 HTEK 2C50 HTEK 3C50 HTEK 3C30 HTEK 2C40 TEK 3C70 HTEK 2C70 HTEK 2C30 HTEK 2C60 TEK 3C40 TEK 3C60 TEK 3C30 TEK 3C50 TEK 2C60 TEK 2C70 TEK 2C50 TEK 2C40 TEK 2C30... - Page 4 Terminator DP-M Separate braid strands at edge of overjacket and Cut and remove pairing jacket by scoring pairing Remove insulation and fiberglass braid (HTEK pull cable through opening in braid. Twist braid jacket and bending cable. Do not cut insulation only) from ends of each conductor.
- Page 5 INSTALLATION PROCEDURES Install junction box lid and twist hand tight. Use screwdriver to ratchet on junction box lid. Lid latch mechanism fully engaged. Insert screwdriver into ratchet slots located on Lid will rotate 30 degrees. side of junction box base. In-line Splice Layout Tips Cut end of cable at angle (or use screwdriver) to Insert two cables into expediter.
- Page 6 End Termination (1 Cable). Install jumper to terminal blocks. Thermon • 100 Thermon Dr • PO Box 609 San Marcos, TX 78667-0609 • Phone: 512-396-5801 • 1-800-820-4328 For the Thermon office nearest you visit us at . . . www.thermon.com Form No.
