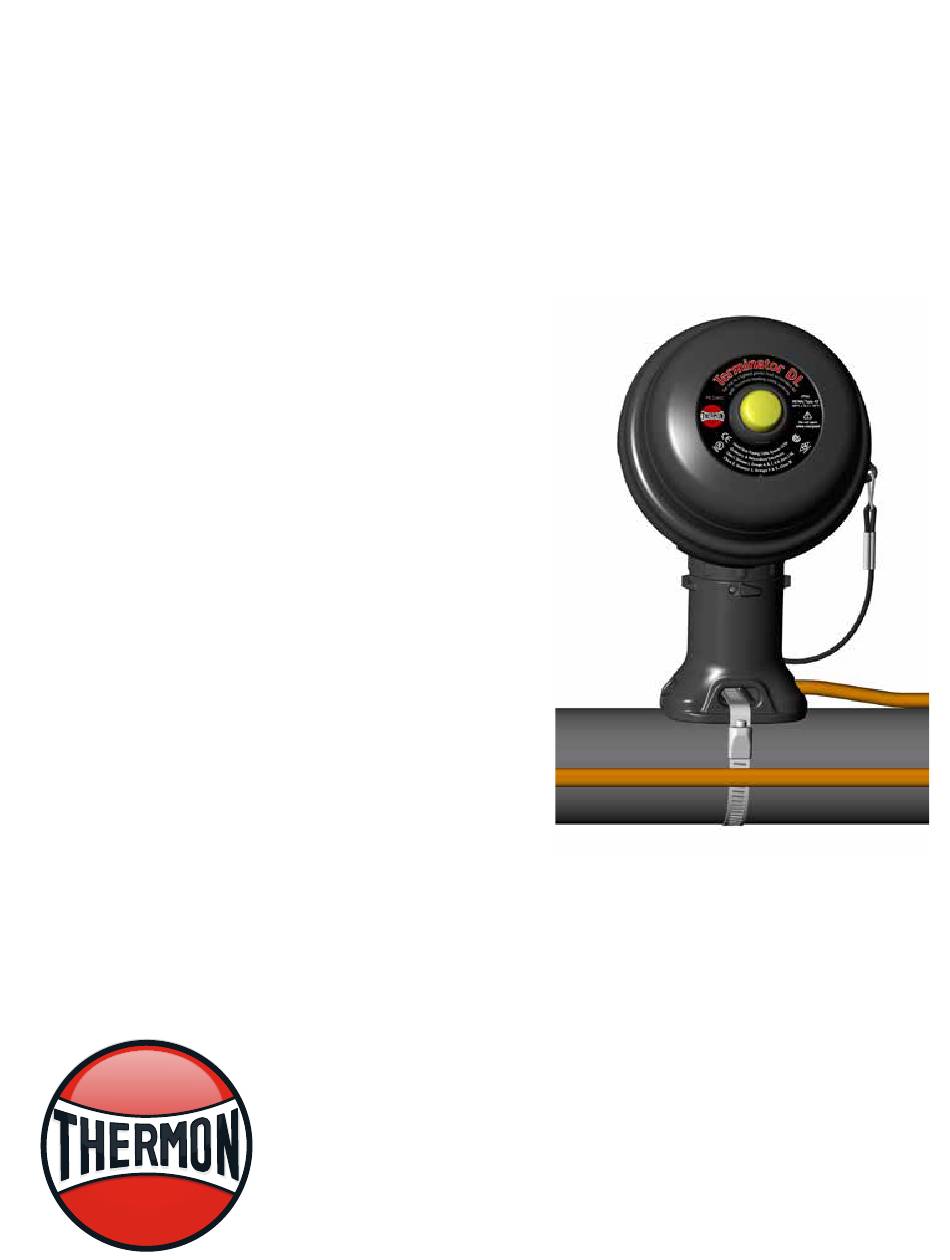

- Page 1 Terminator Lighted Power Connection/End Termination Kit for Power Connection or End Termination Applications INSTALLATION PROCEDURES...
- Page 2 Quantity Description • Component approvals and performance ratings are based on Expediter Assembly the use of Thermon specified parts only. User supplied power Support Cap with O-Ring connection fittings must be listed or certified for intended use. Threaded Grommet Compressor •...
-
Page 3: Installation Procedures
INSTALLATION PROCEDURES For one or two cables. Locate bus connection Two cables. (HPT and FP only) and cable as shown. Cut end of cable at angle to aid in piercing grommet. Leave additional cable for expansion loop. For one or two cables. Insert cable into Two cables. - Page 4 Terminator DL Cut off end of cable. Terminate cable with appropriate PETK Push excess cable back through expediter. termination kit. Refer to PETK installation Tighten cap securely. Tape cable expansion loop instructions. to pipe. For power connection applications: Use Mount junction box base on expediter. Make...
- Page 5 Thermon • 100 Thermon Dr • PO Box 609 San Marcos, TX 78667-0609 • Phone: 512-396-5801 • 1-800-820-4328 For the Thermon office nearest you visit us at . . . www.thermon.com Form No. PN50841-0519...
