Summary of Contents for Thermon Terminator ZP-XP

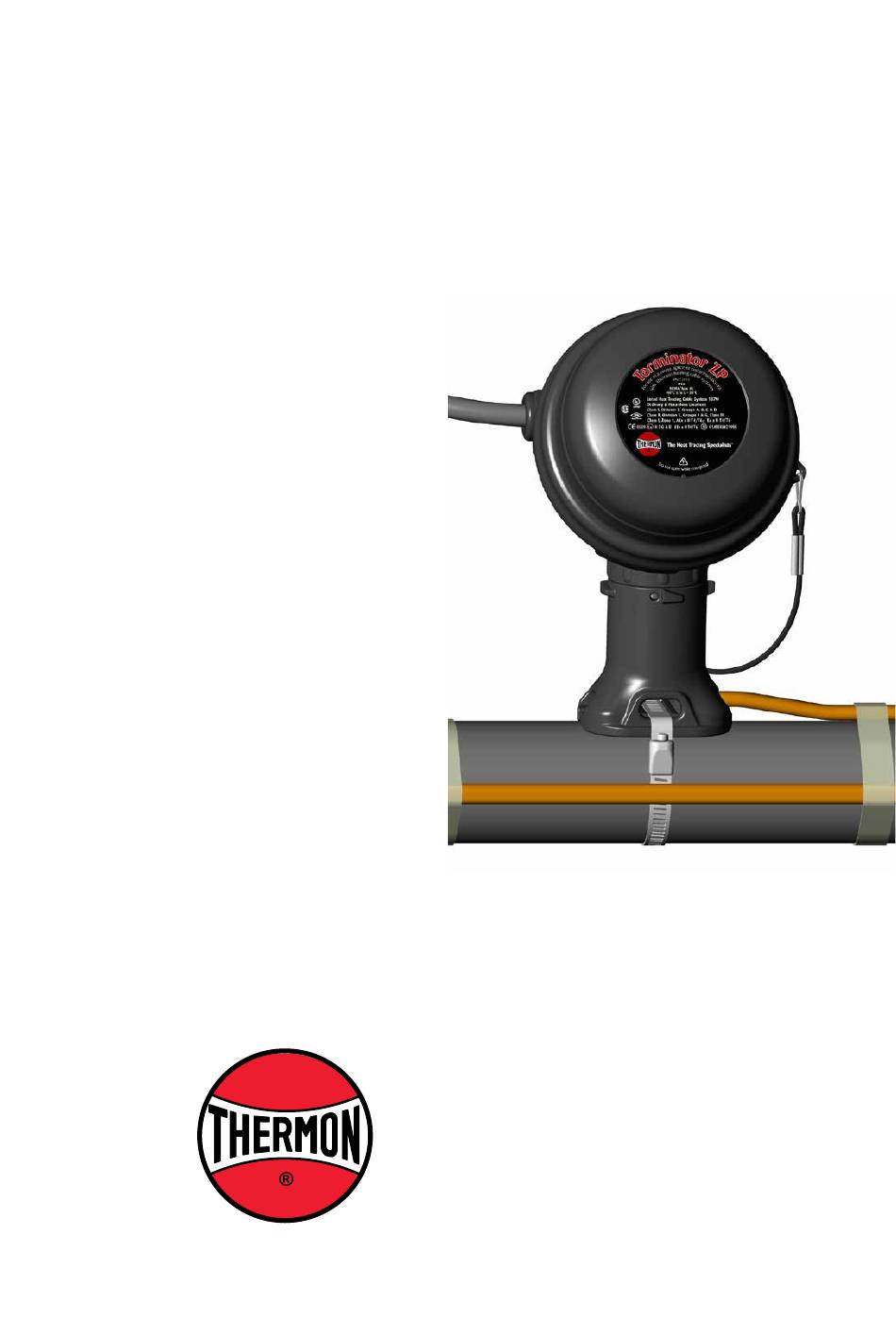

- Page 1 Terminator ZP-XP Power Connection Kit INSTALLATION PROCEDURES For Power Connection, In-Line Splice Connection, T-Splice Connection or End Termination Applications The Heat Tracing Specialists ®...
-
Page 2: Installation Procedures
INSTALLATION PROCEDURES Dimensions . . . The following installation procedures are suggested guidelines for the installation of the Terminator ZP-XP Kit. For translations other than English and local language translation provided here, please contact Thermon. The English language installation procedure shall govern. - Page 3 Terminator ZP-XP INSTALLATION PROCEDURES GRW-G Locate bus connection (HPT and FP only) For HPT and FP cable, exchange Insert cable into expediter. If mounted on bottom or side of pipe, punch out weep and cable as shown. Cut end of cable at grommet in Terminator with GRW-G angle to aid in piercing grommet.
- Page 4 Terminator ZP-XP INSTALLATION PROCEDURES Remove M25 dust cap. Install M25 power Install power cable (if necessary). Mount junction box base on expediter. gland (order separately) and M25 blind Make sure to align slots to properly plug. For in-line splice, T-splice, or end orient junction box base.
-
Page 5: Wiring Details
Terminator ZP-XP INSTALLATION PROCEDURES Two Cable Layout Tips GRW-G Locate bus connection (HPT and FP only) and Insert two cables into expediter. For HPT and FP cable, exchange cable as shown. Cut end of cable at angle to grommet in Terminator with GRW-G Note: For HPT and FP cable, exchange aid in piercing grommet. - Page 6 THERMON . . . The Heat Tracing Specialists ® www.thermon.com European Headquarters Corporate Headquarters • • For the Thermon office nearest you Boezemweg 25 PO Box 205 100 Thermon Dr. PO Box 609 • • visit us at . . .
