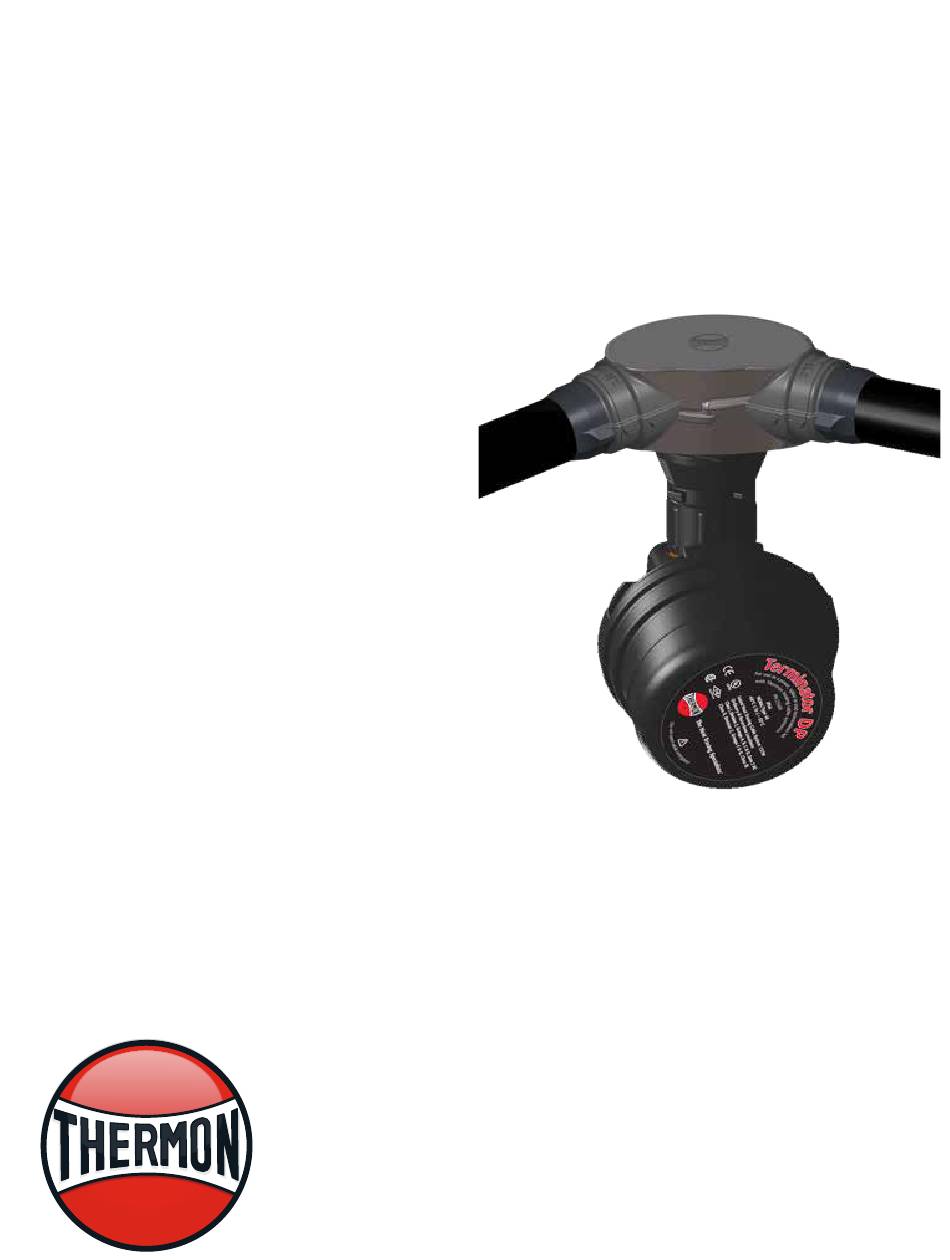

- Page 1 Terminator DP/FAK-2 and FAK-2L Elbow Splice Kit for Electrically Heated TubeTrace® Bundles INSTALLATION PROCEDURES...
- Page 2 Terminator DP/FAK-2 and FAK-2L The following installation procedures are suggested guidelines Dimensions for the installation of the Terminator DP/FAK-2 and FAK-2L Kit. Receiving, Storing and Handling 1. Inspect materials for damage incurred during shipping. 2. Report damages to the carrier for settlement.
-
Page 3: Installation Procedures
INSTALLATION PROCEDURES The Terminator DP/FAK-2 and FAK-2L In-Line Splice Kit is designed Installation Precautions to make a waterproof seal over the end of TubeTrace at the splice • To minimize the potential for arcing and ground-fault protection. connections. Review instructions prior to installation. Kit will make The National Electrical Code (NEC) and Canadian Electrical Code one splice connection (tube fittings not included). - Page 4 Terminator DP/FAK-2 and FAK-2L Splice Cover Top O-Ring RTV Silicone Gasket Expediter Base Splice Cover Bottom Field Drilled (By Others) Cut and Remove Ends to Fit Splice Cover Weep Sealant Bottom TubeTrace Hole Tubing Bundle Cut splice cover top and splice cover bottom to Mount expediter base with o-ring to splice Install the Silicone Gasket (cut off excess).
- Page 5 TubeTrace rotate 30°. bundle.) Thermon • 100 Thermon Dr • PO Box 609 San Marcos, TX 78667-0609 • Phone: 512-396-5801 • 1-800-820-4328 For the Thermon office nearest you visit us at . . . www.thermon.com Form PN50059-1218...
