ON/OFF
ON/OFF status of the HDMI Modulator device
KEY LOCK
Press the key lock and when the green led
lights up the keypad is locked. Press once
again to unlock
HDMI IN SIGNAL
Connect the HDMI cable to the HDMI IN port
and when the green light turns on, the signal
is active
HDMI OUT SIGNAL
Connect the HDMI cable to the HDMI OUT port and when the
green light turns on, the signal is active

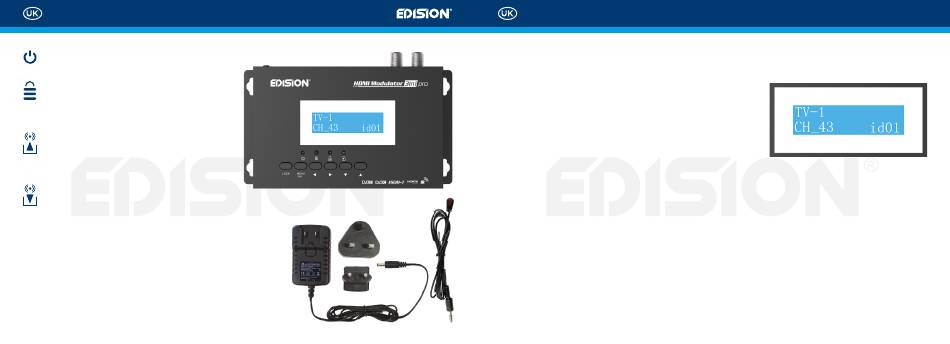

> PACKAGE INCLUDES*
• HDMI Modulator 3in1 pro
• Jack to IR Tx cable
• 5V/2.0A EU/UK universal Power Supply Unit
• User Manual
*The IR Control System EDI-Rx is available separately!
07-05-0102 Extension IR Receiver over Coax EDI-Rx
26
> MAIN MENU
To enter the main menu options, press once the Menu/OK key and use the Left/Right or Up/Down keys
to navigate within the main menu.
• To enter and close the editor menu please press the key UP.
• To save the selected configuration press once the MENU/
OK key and confirm with YES or NO by pressing the LEFT
and RIGHT keys and press MENU/OK key once again. The
configuration is being saved, please do not power off!
LCD DISPLAY - Standby Mode
In 5 minutes after the most recent function, the LCD DISPLAY goes into standby mode.
Pressing a button, reactivates it.
Freq DVB-T or ISDB-T
Shows the current RF channel output. Use the keys
Up & Down to select the desired RF channel output.
Freq DVB-C
Shows the selected RF output frequency on the
DVB-C signal. Use the Left/Right and Up/Down
keys to change the selection.
QAM (only on DVB-C Mode)
Shows the QAM on the DVB-C modulation mode.
Use the Up/Down keys to change the QAM.
HDMI MODULATOR 3in1 pro
Symbol Rate (only on DVB-C Mode)
Shows the Symbol rate on the DVB-C modulation
mode. Use the Left/Right and Up/Down keys to
change Symbol rate.
Pre-config
Shows the current ID. Use the keys Up & Down to
set the desired ID.
RF level
Shows the RF output level. Use the Left/Right and
Up/Down keys to adjust to the desired RF level.
