Instruction Manual for CONFIG
HDMI Modulator single DVB-T
CONFIG FILE DOWNLOAD TO USB STICK
►
Step 1
Ιnsert the USB-stick to the USB port on the HDMI MODULATOR
and press the MENU /OK button.
►

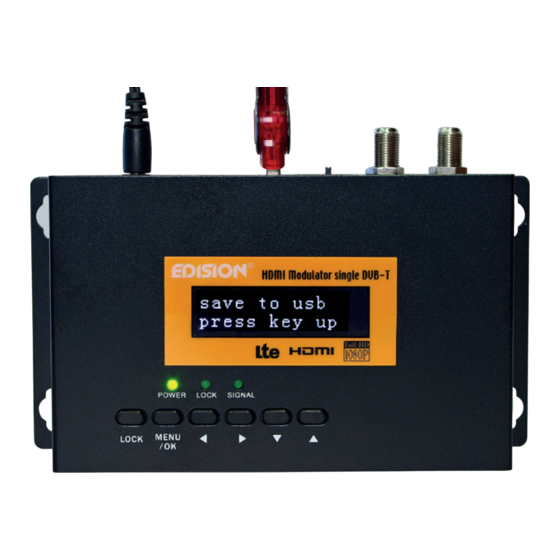

Step 2
3
Press button
twice (2 times), until
save to usb
press key up
appears on screen.
►
Step 3
5
Press button
and
save to usb
success!
appears on screen
►
Step 4
Screen returns to initial display mode and the «config» file is saved to the USB-stick
plugged in the USB port of the HDMI MODULATOR
1
Advertisement
Related Manuals for Edision HDMI Modulator
Summary of Contents for Edision HDMI Modulator
- Page 1 Instruction Manual for CONFIG HDMI Modulator single DVB-T CONFIG FILE DOWNLOAD TO USB STICK ► Step 1 Ιnsert the USB-stick to the USB port on the HDMI MODULATOR and press the MENU /OK button. ► Step 2 Press button twice (2 times), until...
- Page 2 HDMI MODULATORS in MODULATOR in line, the parameters <pmtpid>1003<\pmtpid> the same installation, each one should be confifured must have different programmed <serviceID>1000<\serviceID> according to this values. Example:Modulator No1: chart <video_bitrate>18<\video_bitrate> 1001, 1002...1005 etc, Modulator <Netname>EDISION<\Netname> No2: 1006, 1007...1009 etc.
- Page 3 Step 3 Display shows cfg from usb Yes (*) No ( ) Press button MENU/OK and cfg from usb Loading… appears on screen ► Step 4 HDMI MODULATOR re-boot starts, with the new config file, as set by the user www.edision.gr...
