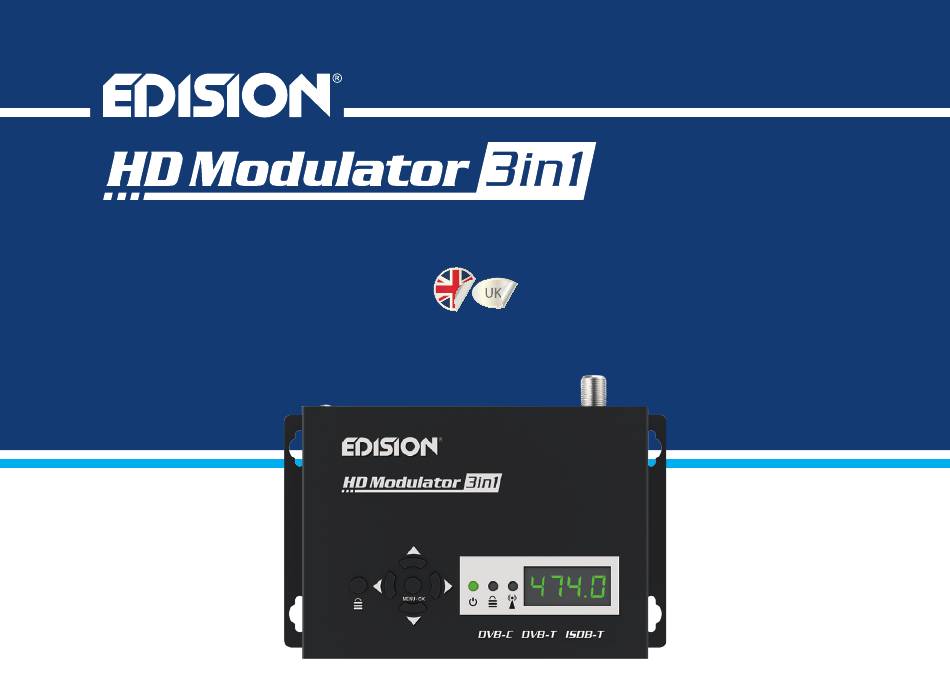

- Page 1 Digital single HD Modulator to DVB-C, DVB-T or ISDB-T MPEG4 User’s Guide...
-
Page 2: Table Of Contents
50 ID’S SELECTABLE ......... 11 ►CONNECTIΟΝ & OPERATION ....6 ►TROUBLESHOOTING ........ 12 ►PACKAGE INCLUDES ........7 ►INSTALLATION EXAMPLE ......13 ►DISPLAY ............7 The CE certificate of the product is available on our webpage, by visiting this link: https://www.edision.gr/en/support... -
Page 3: Introduction
Easy and fast PLUG & PLAY installation plus rapid adjustment with the Fast Pre-Config function among 50 selectable IDs for absolute flexibility of configuration, accord- ing to three installation signals (DVB-C, DVB-T & ISDB-T) and the number of modulators in the installation. HD Modulator 3in1... -
Page 4: Features
►FEATURES • INPUT signal: HD IN • Fast Pre-Config Function / • OUTPUT signal: Cable DVB-C, Digital Terrestrial 50 ID’s Selectable DVB-T MPEG4 or ISDB-T MPEG4 • Backup Config File via USB • High Video Resolution up to 1080p@30FPS • Software Upgrade via USB •... -
Page 5: Rf Specifications
►RF SPECIFICATIONS Frequency Range DVB-C, DVB-T or ISDB-T Output Frequency Range: DVB-C: 47-862 MHz Option 1: Change the frequency in steps of 10KHz from the screen Option 2: Change frequency in steps of 1KHz with USB Config DVB-T: VHF (CH.5-12) & UHF (CH.21-69) Option 1: Change preset Channels from the screen Option 2: Change preset Channels with USB Config ISDB-T: VHF (CH.7-13) &... -
Page 6: Connectiον & Operation
►CONNECTIΟΝ & OPERATION 1. Connect an HDMI cable from HDMI source device to the “HD in” of HD Modulator. 2. Connect an RF coaxial cable to the “RF OUT” output for signal distribution to the RF network. 3. Connect the power adapter to the HD Modulator. 4. -
Page 7: Package Includes
►PACKAGE INCLUDES & DISPLAY 1. HD Modulator 2. Power Adapter 3. Fastening screws 4. User Manual KEY LOCK Press the lock key once, and when the green led lights up, the keypad is locked. Press once again to unlock. HD SIGNAL Connect the HDMI cable to the HD IN and, when the green led lights up, the signal is active. -
Page 8: Main Menu
►MAIN MENU To enter the main menu options, press once the Menu/OK key and use the Left or Right keys to navigate within the main menu. FR: Shows the selected RF output fre- LCN: Shows the current LCN type. With the “Up”, “Down”... -
Page 9: Configuration Extraction (Cfg)
►CONFIGURATION EXTRACTION (CFG) For an advanced configuration of the HD modulator, you must extract the configuration file to a USB drive, modify it and import it again in the HD modulator. To extract the configuration file named jedi_config.txt*, you must connect a USB drive** to the USB slot, enter the Main Menu, select CFG and press key UP to extract the file to the USB drive. -
Page 10: Configuration Import (Cfg)
Service ID: 1 up to 9999 <serviceID>1000<\serviceID> <video _ bitrate>18000<\video _ bitrate> Video Bitrate: 0 up to 27000 <Netname>EDISION<\Netname> Signal Name, Max 10 characters allowed <TV _ Standard>2<\TV _ Standard> TV Standard: 0 DVB-T, 1 ISDB-T, 2 DVB-C ►CONFIGURATION IMPORT (CFG) To import the configuration file jedi_config.txt, you must save the file within... -
Page 11: Id's Selectable
►FAST PRE-CONFIG FUNCTION / 50 ID’S SELECTABLE This feature allows the user to configure easy and fast all the signal parameters of the unit, selecting from the 50 ready and installed IDs*. This function is necessary and important when we have more than one HD Modulator in the same installation. The user must select an ID to change the parameters, so that the final devices can be tuned to the signal from the HD Modulators. -
Page 12: Troubleshooting
• Make sure your Fast Pre-Config ID does not conflict with another unit The sound is not synchronized with the video • Please adjust the PCR gap each time until you get the perfect A/V sync For more queries or advanced troubleshooting, please contact our technical support at support@edision.gr... -
Page 13: Installation Example
4 WAY RF SPLITTER MENU MENU MENU MENU DVB-C DVB-T ISDB-T DVB-C DVB-T ISDB-T DVB-C DVB-T ISDB-T DVB-C DVB-T ISDB-T MODULATOR 1 MODULATOR 2 MODULATOR 3 MODULATOR 4 id01 id02 id03 id04... - Page 14 . e d i s i o n . g r EDISION HELLAS LTD • FARMAKEIKA - 57001 N. RISIO • THESSALONIKI - GREECE...
