Vari Executive Conference Table 4'x10' Manual

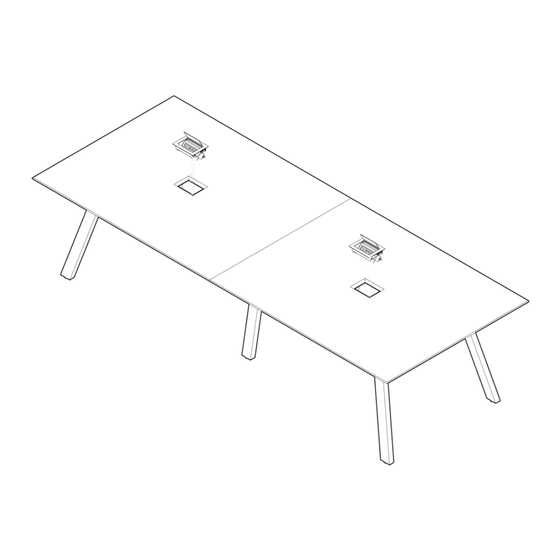

Executive Conference Table 4'x10'
INCLUDED PARTS FOR TABLE ASSEMBLY
#12x1 FLAT HEAD
PHILLIPS SCREW
x48
POWER BOX
x2
CLIP ALTERNATE
ZIPBOLT 100
CENTER LEG
x2
x3
(AIM-A)
x2
INCLUDED PARTS FOR CABLE MANAGEMENT
BRACKETS
1. SCREW THE BRACKET INTO THE UNDERSIDE OF THE TABLE, IN THE PATH OF THE CABLE
BRACKETS #10x5/8 PHILLIPS HEAD
x8 WOOD SCREW
Tools Needed (Not Included)
VELCRO STRAP
• #4 ALLEN WRENCH
• PHILLIPS SCREWDRIVER OR POWER DRILL WITH A PHILLIPS DRILLBIT
PHILLIPS HEAD WOOD SCREW
#10 X5/8"
TABLE ASSEMBLY
1
TABLES
x2
The table tops are face down when you open the box. Assemble the table tops adjacent, in both boxes, and as they are to
avoid damaging the tabletop surface.
BRACKETS
2
RIGHT LEG LEFT LEG
(AIM-RIGHT) (AIM-LEFT)
x2 x2
2. PUSH THE VELCRO STRAP INTO THE SLOTS OF THE BRACKET
VELCRO STRAP
VELCRO STRAPS
x8
x8
3. FASTEN THE CABLES WITH THE VELCRO STRAP
Insert a loosened zipbolt in the holes provided and using an Allen Key turn it clockwise to tighten the zipbolts little by little
until they are all secured. *Note: Make sure that the tops are as level as possible when tightening the zipbolts to ensure they
PHILLIPS HEAD WOOD SCREW
#10 X5/8"
are flushed once fully assembled.
5 or more
1. SCREW THE BRACKET INTO THE UNDERSIDE OF THE TABLE, IN THE PATH OF THE CABLE 2. PUSH THE VELCRO STRAP INTO THE SLOTS OF THE BRACKET
3. FASTEN THE CABLES WITH THE VELCRO STRAP
Holds up
No Tools
People
Included to 300lb
(136.07 kg)
