Vari Executive Conference Table 4'x8' Manual

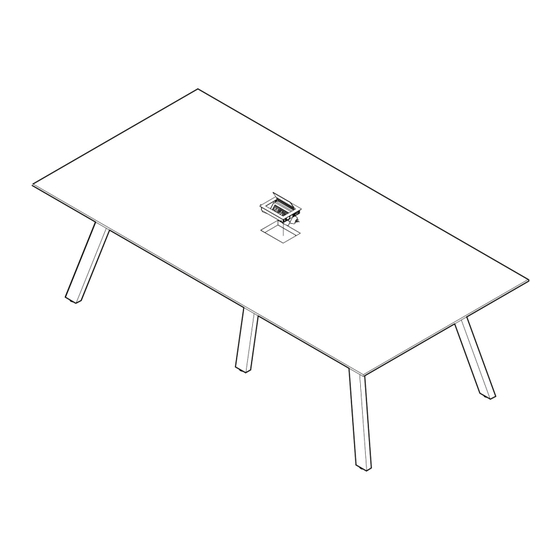

Executive Conference Table 4'x8'
INCLUDED PARTS FOR TABLE ASSEMBLY
#12x1 FLAT HEAD
PHILLIPS SCREW
TABLE
x48
x1
CLIP
x2
BRACKETS
POWER BOX ALTERNATE
x1 CENTER LEG (AIM-RIGHT)
(AIM-A)
x2
INCLUDED PARTS FOR CABLE MANAGEMENT
BRACKETS
1. SCREW THE BRACKET INTO THE UNDERSIDE OF THE TABLE, IN THE PATH OF THE CABLE
VELCRO STRAPS
BRACKETS
x4 x4
Tools Needed (Not Included)
VELCRO STRAP
PHILLIPS HEAD WOOD SCREW
• #4 ALLEN WRENCH
#10 X5/8"
• PHILLIPS SCREWDRIVER OR POWER DRILL WITH A PHILLIPS DRILLBIT
PHILLIPS HEAD WOOD SCREW
#10 X5/8"
TABLE ASSEMBLY
1
The table top is face down when you open the box. Assemble the table tops in its box as they are to avoid damaging the
tabletop surface.
2
RIGHT LEG LEFT LEG 1. SCREW THE BRACKET INTO THE UNDERSIDE OF THE TABLE, IN THE PATH OF THE CABLE
(AIM-LEFT)
x2 x2
2. PUSH THE VELCRO STRAP INTO THE SLOTS OF THE BRACKET
VELCRO STRAP
#10x5/8 PHILLIPS HEAD
WOOD SCREW
x4
3. FASTEN THE CABLES WITH THE VELCRO STRAP
The left, right, and alternate legs are labeled on the plate of each leg. (Center legs are labeled "AIM-A" and one should have a
cutout for cable management). Align the square plate at the top of each leg with the corresponding pre-drilled holes on the
underside of the tabletop. Use the provided screws and your Phillips Head screwdriver to secure them to the table, one by one.
*Note: It is only necessary to screw in the corners of each leg plate. There will be extra screws upon completion of this table.
3 People
2. PUSH THE VELCRO STRAP INTO THE SLOTS OF THE BRACKET
3. FASTEN THE CABLES WITH THE VELCRO STRAP
RIGHT LEG
Holds up
No Tools
Included to 300lb
(136.07 kg)
CENTER LEG
RIGHT LEG
(AIM-RIGHT) (AIM-A)
LEFT LEG
CENTER LEG
CENTER LEG
LEFT LEG
(AIM-LEFT)
RIGHT LEG
LEFT LEG
