Nauticam 26301 Instruction Manual

Instruction Manual for Flash Triggers
PN# 26301, 26303, 26304
F
OREWORD
Thank you for your purchase of a NAUTICAM product.
At NAUTICAM, we pride ourselves in the ability to recognize the requirements
of professional as well as amateur underwater photographers and fulfill them
through the innovative designs of our products. We strive to achieve a high
level of user-friendliness by allowing stress-free installation and easy
operation of all important functions of the camera.
Please read this manual carefully before using the product, this will maximize
its performance as well as its lifetime.
W
ARRANTY
All NAUTICAM Products are warranted against any material and
manufacturing defects for two years from the date of purchase for consumer
use. This warranty only applies to products purchased from authorized
NAUTICAM dealers and does not extend beyond the original retail purchaser.
To return your product for service, please contact your regional authorized
service center(s). Please note that this warranty only applies when the product
is purchased in the territory where the service center is located.
NAUTICAM does not hold responsibility for damage, of any nature, to any
equipment used with and/or placed within our products.
NAUTICAM accepts no liability for any loss of captured images or the inability
to capture images even if it is due to the malfunctioning of our products.
Unauthorized modifications and/or repairs of our products will automatically
invalidate the warranty.
P
RECAUTIONS
• Use only batteries approved for use in this product, do not mix old and new
batteries.
• Check the battery terminals before installing into the product.
• Remove batteries for storage, do not store the product in an environment
of high humidity.
• Do not leave the product in direct sunlight for prolonged periods.
• Keep out of reach of children, failure to do so could result in injury.
• Defective products should be shipped to our distributors for service,
unauthorized disassembling and/or modifications could result in mal-
function.
I P
DENTIFICATION OF ARTS
On/off switch
Hotshoe connector
Triggering LEDs

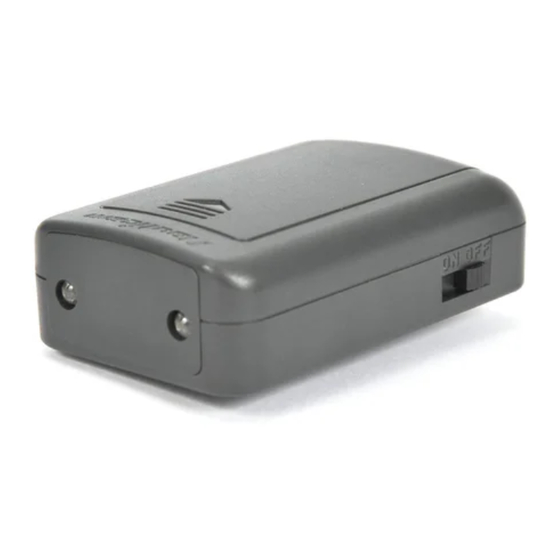

#26301 Flash trigger for Canon is used as an example in this instruction
manual, #26303, #26304 will be slightly different in term of appearance.
Battery compartment cover
Indicator
Lock/Release lever
B I
ATTERIES NSTALLATION
This product can only use with CR 3032 batteries. Never use other kinds of
batteries.
1
Press
Make sure the On/Off switch is in the OFF position. Remove the batteries
compartment cover by sliding it outwards.
Install the batteries as shown. Please note that the "+" and "-" sign on the
battery holders denotes the sides of the batteries facing down.
Close the battery cover and then switch the trigger unit on. The indicator will
turn green.
Indicator Status Identication:
Indicator
Green light Start up.
Flashing Green light
Ready to use, normal operation.
(1 flash/sec)
Flashing Red light
Low battery warning, replace batteries.
(1 flash/sec)
--- continue on next page ---
2 Slide
Status of flash trigger
