Draper FlexStyle Cassette ST30 DC Installation & Operation Instructions
  1. Manuals
  2. Brands
  3. Draper Manuals
  4. Window Blinds
  5. FSTYL CASS BA24
  6. Installation & operation instructions
Draper FlexStyle Cassette ST30 DC Installation & Operation Instructions

Draper FlexStyle Cassette ST30 DC Installation & Operation Instructions

Motorized window shade with cassette-style case
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
FlexStyle
Cassette ST30 DC
®
Motorized window shade with cassette-style case

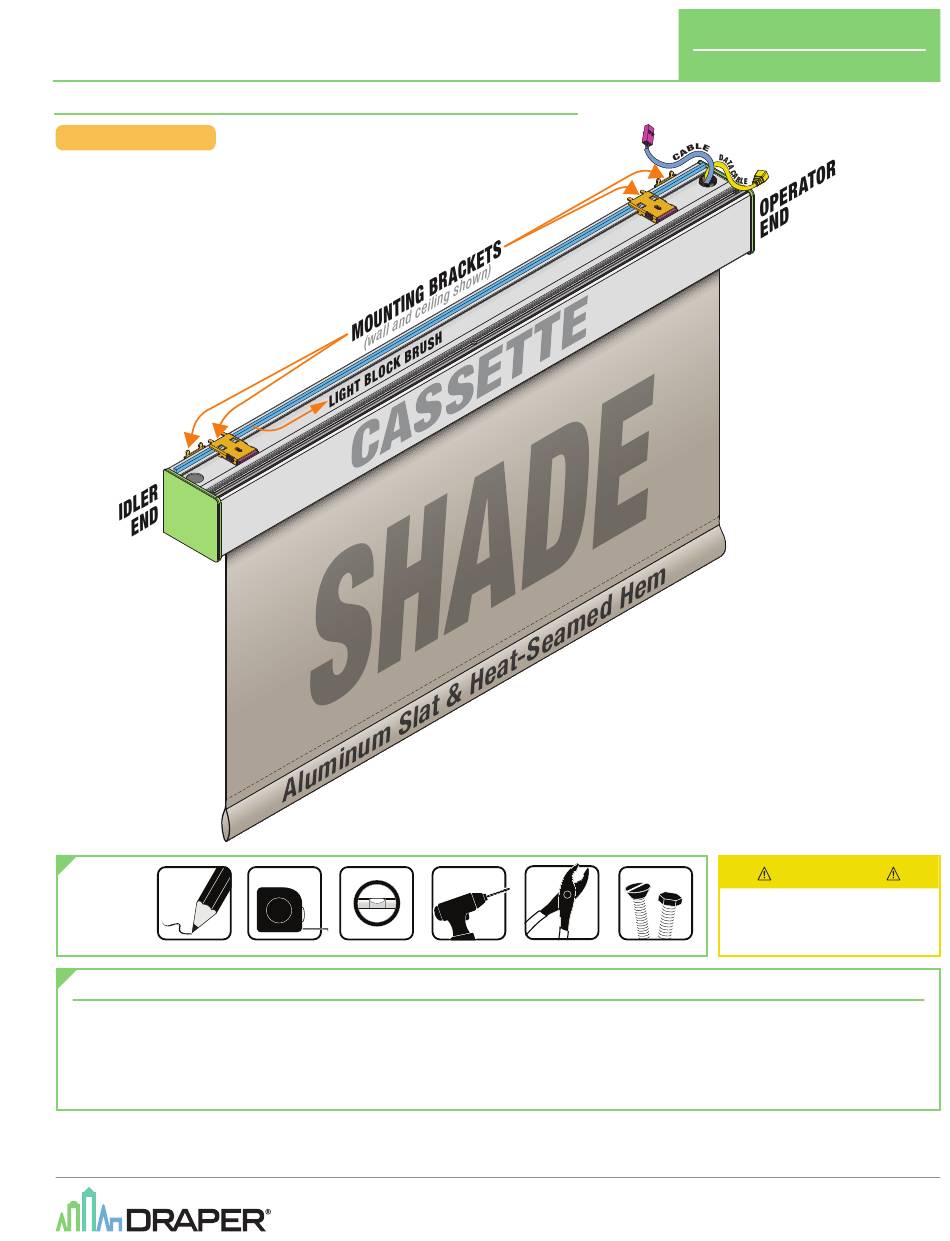

Overview - Components

FSTYL CASS BA24
TOOLS
REQUIRED
PENCIL
Contents
Overview - Components .......................................................................................1
Section 1 - Installing Mounting Brackets ..........................................................3
Section 2 - Wall Mounting Shade........................................................................4
Section 3 - Ceiling Mounting Shade ...................................................................4
24V ST30 DC
(Square Cassette, Elliptical Style Hem Bar shown)
TAPE MEASURE
LEVEL
POWER DRILL
PLIERS
Section 4 - Electrical Connections .....................................................................5
Section 5 - Cable Exit ...........................................................................................5
Section 6 - RF Remote Programming Instructions .........................................6
Section 7 - Component Dimensions ..................................................................7
Section 8 - Shade Dimensions ............................................................................7
Section 9 - Wiring Diagrams ................................................................................8
© 2024 All Rights Reserved
INSTRUCTIONS
INSTALLATION & OPERATION
*
*
CAUTION
Read and understand
all warnings before
beginning installation.
HARDWARE
(by others)
If you have any difficulties installing or servicing your
Motorized FlexStyle Cassette, call your dealer or Draper, Inc.
Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385
draperinc.com | 765.987.7999 | 800.238.7999
|
FORM: FlexStyle_Cassette_MO_ST30_24V_Inst24
Data cable only supplied
with the DC RS485 motor.
