Mechanical side arm S30 2019 1
Operator's Manual for Attachment
Mechanical side arm S30
Product number:
A431070
www.avanttecno.com
A436866 2019 1 EN 2018-

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AVANT S30

Summary of Contents for AVANT S30

  • Page 1 English Mechanical side arm S30 2019 1 Operator's Manual for Attachment Mechanical side arm S30 Product number: A431070 www.avanttecno.com A436866 2019 1 EN 2018-...
  • Page 2 Mechanical side arm S30 2019 1...

  • Page 3: Table Of Contents

    Mechanical side arm S30 2019 1 CONTENTS 1. FOREWORD ............................4 Warning symbols used in this manual ..........................5 2. DESIGNED PURPOSE OF USE ......................6 3. SAFETY INSTRUCTIONS FOR USING THE ATTACHMENT ............7 4. TECHNICAL SPECIFICATIONS ......................11 Outreach ................................. 12 Safety labels and main components of the attachment.................. 13 5.

  • Page 4: Foreword

    If you sell or transfer the equipment, be sure to hand over this manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant dealer or from the manufacturer.

  • Page 5: Warning Symbols Used In This Manual

    5 (34) Warning symbols used in this manual The following warning symbols are used throughout this manual. They indicate factors that must be taken into account to reduce the risk of personal injury or damage to property: WARNING SAFETY ALERT SYMBOL This symbol means: “Warning, be alert! Your safety is involved!”...

  • Page 6: Designed Purpose Of Use

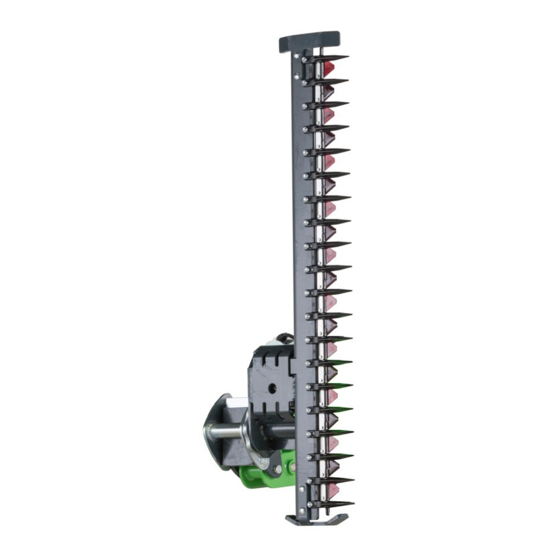

    The AVANT Mechanical side arm with S30 quick coupling system is an attachment that is intended for use with AVANT multi purpose loaders that are shown in Table 1. The side arm has a S30 type quick coupling for coupling attachments to the arm. The side arm is intended to be used with attachments that are specifically designed for use with a side arm, such as, for example, the S30 cutting bar A430938, and the S30 Multi- function drive unit A429926.

  • Page 7: Safety Instructions For Using The Attachment

    Never lift or move an unlocked attachment.  The Mechanical side arm S30 is designed to be used by one operator at a time. Do WARNING not let others near the danger area of the equipment when it is in use.
  • Page 8 8 (34)  Hazard of entanglement - Never wear or allow any assisting persons to wear loose clothes, such as loose shoelaces, or long scarves when working with or near the attachment. Always stop the attachment before anyone gets near it. Keep hands and feet away from moving components.
  • Page 9 9 (34) Wrong, improper, or careless use of the attachment causes serious risk of severe injuries or death. Familiarise yourself with the controls of the loader in a safe area. Pay particular attention to the safe stopping of the attachment and the loader; follow the safe stopping procedure shown in this manual before leaving the driver's seat.
  • Page 10 10 (34) Remember to wear proper personal protective equipment:  The noise level at the driver's seat may exceed 85 dB(A) depending on loader model and operating cycle. Extended exposure to loud noise can cause hearing impairment. Wear hearing protection while working with the loader. ...

  • Page 11: Technical Specifications

    11 (34) 4. Technical specifications Table 2 - Mechanical side arm S30 - Specifications Product number A431070 Width (boom retracted): 1 645 mm Max. telescoping: 1000 mm Jib arm movement: 135° (- 45°/+ 90°) Weight: 130 kg Max attachment weight:...

  • Page 12: Outreach

    12 (34) 4.1 Outreach The outreach diagram below is illustrated without an attachment. The actual outreach depends on the attachment in use, therefore the diagram should be used as an estimation. See additional instructions from the corresponding attachment manuals.

  • Page 13: Safety Labels And Main Components Of The Attachment

    13 (34) 4.2 Safety labels and main components of the attachment Listed below are the labels and markings on the attachment. They must be visible and readable on the equipment. Replace any unclear or missing label. New labels are available via your retailer or contact information provided on the cover.
  • Page 14 3 A36803 equipment running. Operate the attachment only from the driver’s seat. 4 A433442 Attachment identification plate Table 4 - Mechanical side arm S30 - Main components Avant quick coupling S30 quick coupling Hydraulic quick couplers for attachment Multiconnector Locking pin for telescopic arm...

  • Page 15: Assembling The Attachment

    WARNING Never move or lift an attachment that has not been locked. 5.1 Coupling the side arm to the loader Avant quick coupling system: Step 1:  Lift the quick attach plate locking pins up and turn them backwards into the slot so that they are locked in the upper position.
  • Page 16 If your loader is not listed in Table 1 on page 6, ask your Avant dealer before using this attachment.

  • Page 17: Connecting And Disconnecting Hydraulic Hoses

    5.2 Connecting and disconnecting hydraulic hoses On Avant loaders the hydraulic hoses are connected using the multi connector system. If you have an Avant 300-700 series loader with the conventional quick couplers and wish to change to the multi connector system, contact your Avant dealer or service point for instructions or installation services.
  • Page 18 18 (34) Disconnecting hydraulic hoses: Before disconnecting the fittings, lower the attachment to safe position on solid and level surface. Turn the control lever of the auxiliary hydraulics to its neutral position. When uncoupling the attachment, always disconnect the hydraulic couplings before unlocking the quick attach plate, to prevent hose damage and any oil spills.

  • Page 19: Coupling An Attachment To The Side Arm

    1. Make sure the side arm or the hydraulic boom is connected and locked to the loader. The hydraulic and electric connectors must also be coupled. 2. Open the S30 coupling of the side arm with the Allen key that is stored at the Avant quick coupling plate of the side arm.

  • Page 20: Electric Connection

    The loader must be equipped with the optional Attachment control switch pack. If it is not installed on the loader, it is not possible to fully operate the side arm and its attachments. Contact you Avant dealer or service point for more information about installation of the Attachment control switch pack, if necessary.

  • Page 21: Instructions For Use

    21 (34) 6. Instructions for use Check the attachment and the operating environment once more before starting to work, and that all obstacles have been removed from the operating area. Quick inspection of the equipment and the operating area before use are parts of ensuring safety and the best performance of the equipment.

  • Page 22: Checks Before Use

    Use only when all pins and hydraulic fittings are locked and secured in place. Make sure that the side  arm S30 quick coupling and attachment counterpart are in good condition. Ensure that bystanders are at a safe distance when operating the equipment. Do not let anyone to ...

  • Page 23: Operating Position

    23 (34) 6.2 Operating position Set the attachment to correct operating position. Correct position depends on the attachment that is fitted to the side arm. The picture below describes the use of the side arm with a carousel broom. Always operate the controls of the loader and its attachments in a careful and smooth manner, and avoid sharp turns and sudden changes in speed or direction whenever using the side arm and its attachment.

  • Page 24: Using The Mechanical Side Arm

    Tilting the attachment coupling bracket when an attachment is not fitted When an attachment is not connected fitted to the side arm: When an attachment is not connected to the side arm, to tilt the S30 quick coupling of the side arm: ...

  • Page 25: To Start And Tilt An Attachment That Is Coupled To The Side Arm

    25 (34) 6.3.2 To start and tilt an attachment that is coupled to the side arm To start an attachment that is coupled to the side arm: When an attachment is connected to the side arm: Keep the ON-OFF switch at OFF ...

  • Page 26: Vertical Adjustment

    Always remove the attachment from the S30 coupling before adjusting the side arm. Set and adjust the side arm to correct operating position as follows: Step 1 1.

  • Page 27: Working On Uneven Ground

    27 (34) 6.5 Working on uneven ground Extra caution is needed when using the equipment on inclined terrains and slopes. Drive slowly especially on inclined, uneven, or slippery surfaces, and avoid sudden changes in speed or direction. Operate the controls of the loader with careful and smooth movements.

  • Page 28: Uncoupling And Storage

    28 (34) 6.7 Uncoupling and storage The mechanical side arm can be uncoupled from the loader for short period storage with an attachment fitted. For long term storage the attachment should be disconnected from the side arm. Uncouple and store the attachment on level ground. The best way to store the attachment is a place where it is protected from direct sunlight, rain, and extreme temperatures.

  • Page 29: Storage With Attachment

    Two or three pallets may be necessary to ensure the stability of the assembly during storage. Carefully lower the attachment together with side arm to the ground on the pallets. Uncouple the multiconnector (1) and then unlock the locking pins of the Avant quick coupling.

  • Page 30: Maintenance And Service

    Finding any fault means that the hydraulic hose or component must be replaced and the equipment must not be used until it is repaired. Spare parts are available from your nearest AVANT retailer or authorised service point. Leave the repair work to professional service technicians, if you don’t have adequate knowledge and experience about hydraulic assemblies and how to perform the repairing safely.

  • Page 31: Cleaning The Attachment

    31 (34) 7.2 Cleaning the attachment Clean the attachment regularly to prevent accumulation of dirt which is more difficult to remove. A pressure washer and mild detergent can be used for cleaning. Do not use strong solvents, and do not spray directly at the hydraulic components, or at the labels on the attachment.

  • Page 32: Warranty Terms

    32 (34) 8. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) from the date of purchase for the attachment it manufactures. The warranty covers repair costs as follows:  Work costs are covered, if the repair is not performed at the factory.
  • Page 33 SFS-EN ISO 12100, SFS-EN ISO 4413 Mallit / Modeller / Models Avant S30 mekaaninen sivupuomi; Avant-kuormaajan työlaite Sidoarm S30 mekanisk; arbetsredskap för Avant lastare A431070 Mechanical side arm S30; attachment for Avant loaders 16.7.2019 Ylöjärvi, Finland Risto Käkelä, Toimitusjohtaja / Verkställande direktör / Managing Director...
