Summary of Contents for AVANT A429922

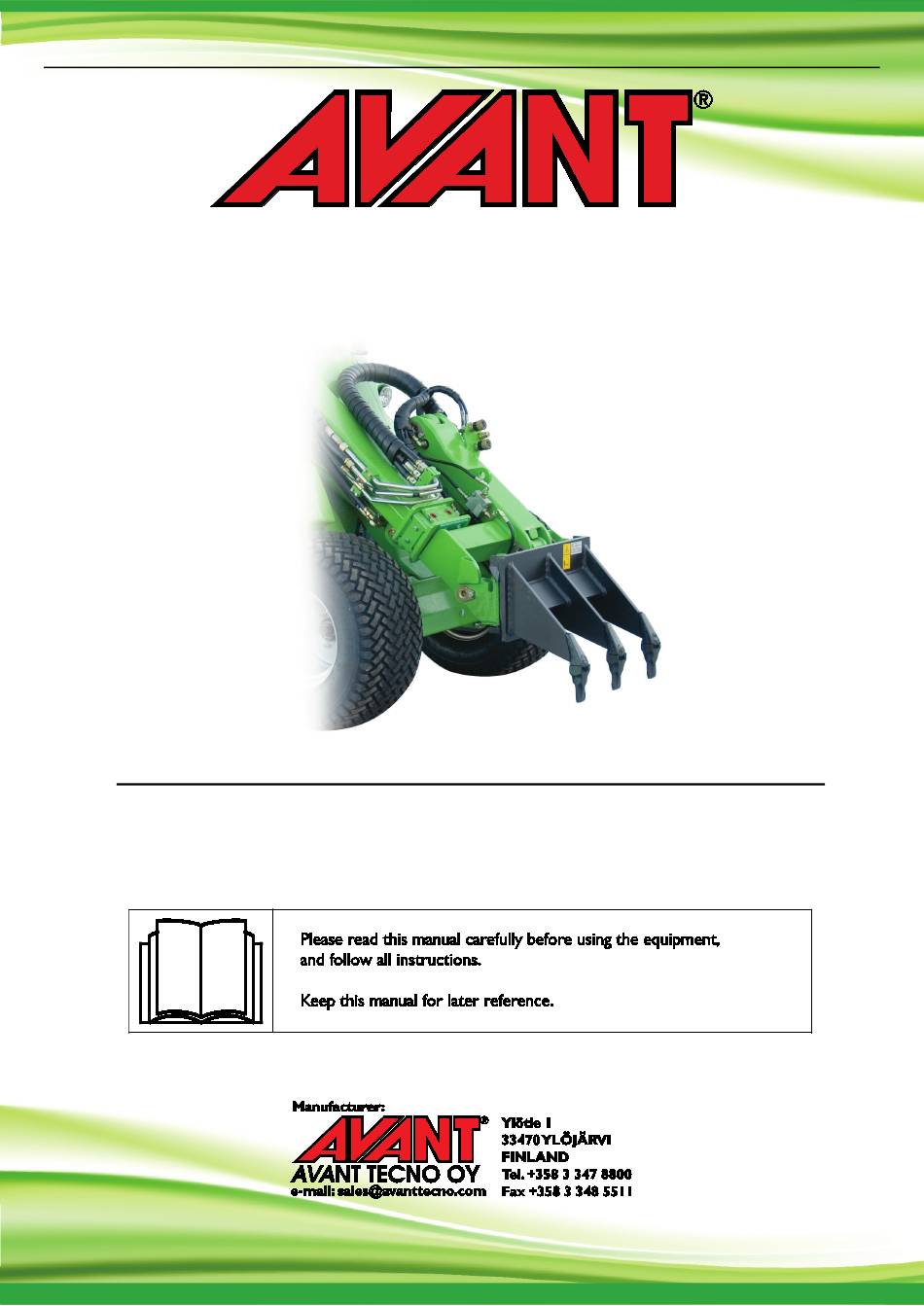

- Page 1 English Ripper 2023 1 Operator's Manual for Attachment Ripper Product number A44412 www.avanttecno.com A449922 2023 1 EN 2010-...
- Page 2 Ripper 2023 1...
-
Page 3: Table Of Contents
Ripper 2023 1 CONTENTS 1. FOREWORD ............................4 Warning symbols used in this manual ........................... 5 2. DESIGNED PURPOSE OF USE......................6 3. SAFETY INSTRUCTIONS FOR USING THE ATTACHMENT ............7 Safe shutdown procedure ............................8 Personal protective equipment ..........................8 4. -
Page 4: Foreword
If you sell or transfer the equipment, be sure to hand over this manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant dealer or from the manufacturer. -
Page 5: Warning Symbols Used In This Manual
5 (20) Warning symbols used in this manual The following warning symbols are used throughout this manual. They indicate factors that must be taken into account to reduce the risk of personal injury or damage to property: WARNING SAFETY ALERT SYMBOL This symbol means: “Warning, be alert! Your safety is involved!”... -
Page 6: Designed Purpose Of Use
A separate spare parts catalogue may be available, consult your Avant dealer. Familiarise yourself with the manual's instructions regarding service and maintenance. Please contact your AVANT dealer if you have additional questions about the operation or maintenance of the equipment, or if you require spare parts or maintenance services. -
Page 7: Safety Instructions For Using The Attachment
7 (20) 3. Safety instructions for using the attachment Please bear in mind that safety is the result of several factors. The loader-attachment combination is highly powerful and improper or careless use or maintenance may cause serious personal injury or property damage. -
Page 8: Safe Shutdown Procedure
8 (20) Risk of crushing - Never allow anyone to get under a lifted attachment or loader boom. Keep in mind that the loader boom can be lowered or tilted even if the engine has WARNING been shut down (crushing hazard). The loader is not intended to be left to keep a load elevated for longer periods. -
Page 9: Technical Specifications
A31780 Locking pin for tooth: A31781 Compatible AVANT loaders: See Table 1, Designed purpose of use 4.1 Safety labels and main components of the attachment Listed below are the labels and markings on the attachment. They must be visible and readable on the equipment. - Page 10 Crushing hazard - Do not go under a raised attachment; stay away from raised equipment. 3 A423001 Attachment identification plate Table 4 - Ripper - Main components Quick coupling brackets for Avant loaders Ripper frame Mounting pin for replaceable tooth Replaceable tooth...
-
Page 11: Lifting
11 (20) 4.2 Lifting Make sure that the attachment is properly secured against unintended movements during lifting operation. Use appropriate type of lifting accessories, lifting straps, chains or hooks, for example. Do not use lifting accessories if there are signs of damage, deformation, or otherwise unsafe conditions. Lift the Ripper by using the lifting points, that are shown in the adjacent figure. -
Page 12: Attaching The Attachment
Do not stay in the area between the attachment and the loader. Mount the attachment only on level surface. WARNING Never move or lift an attachment that has not been locked. Avant quick coupling system: Step 1: Lift the locking pins of the quick coupling plate of the loader up, and turn them backwards into the slot, so that they are locked in the upper position. - Page 13 If your loader is not listed in Table 1 on page 6, ask your Avant dealer before using this attachment.
-
Page 14: Instructions For Use
14 (20) 6. Instructions for use Practise the use of the attachment and the controls of the loader in a safe area. If you are unfamiliar with the particular loader model, it is recommended to practice its use without any attachments. 6.1 Checks before use Ensure that bystanders are at a safe distance when operating the equipment. -
Page 15: Operating The Ripper
15 (20) 6.3 Operating the ripper Use the ripper for removing e.g roots and rocks from hard packed ground. The ripper is operated by pressing the three blades into the ground next to the object you wish to remove. When the teeth have sunk into the ground, tilt the ripper inwards and then lift the boom upwards, which will bring the object on top of the ground. -
Page 16: Storing The Attachment
16 (20) Risk of tipping over - Keep the loader stable. Always transport the attachment as low and close to the ground as possible. Keep the telescopic boom retracted during transport drive. WARNING 6.6 Storing the attachment Uncouple and store the attachment on level ground. -
Page 17: Maintenance And Service
17 (20) 7. Maintenance and Service The attachment has been designed to be as maintenance free as possible. Continuous maintenance includes regular cleaning and lubrication, and monitoring the condition of the attachment. Because of the crushing hazard caused by lowering machine parts, all maintenance work must be done when moving parts have been lowered down completely and the attachment is lowered flat against the ground. -
Page 18: Ripper Teeth Maintenance
18 (20) 7.4 Ripper teeth maintenance The condition of the teeth and mounting pins should be checked at least every few uses. Replace any broken items. Replacing teeth 1. Remove tooth (1) by hitting mounting pin (2) with a pin punch. 2. -
Page 19: Warranty Terms
19 (20) 8. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) from the date of purchase for the attachment it manufactures. The warranty covers repair costs as follows: Work costs are covered, if the repair is not performed at the factory.
