6 Installation
6
Installation
NOTICE
Applications of force!
●
Do not hit or step on the product.
●
Avoid hard knocks.
●
Do not bend any connector contacts.
●
Do not drop the product.
●
Do not remove the product from its original packaging until you are at the installation
site.
NOTICE
Penetration of foreign bodies or liquids!
●
Ensure that the connectors are protected against penetration of foreign bodies or
liquids!
6.1
Preparations
Observe the description
(→ page
42).
6.2
Determining installation dimensions

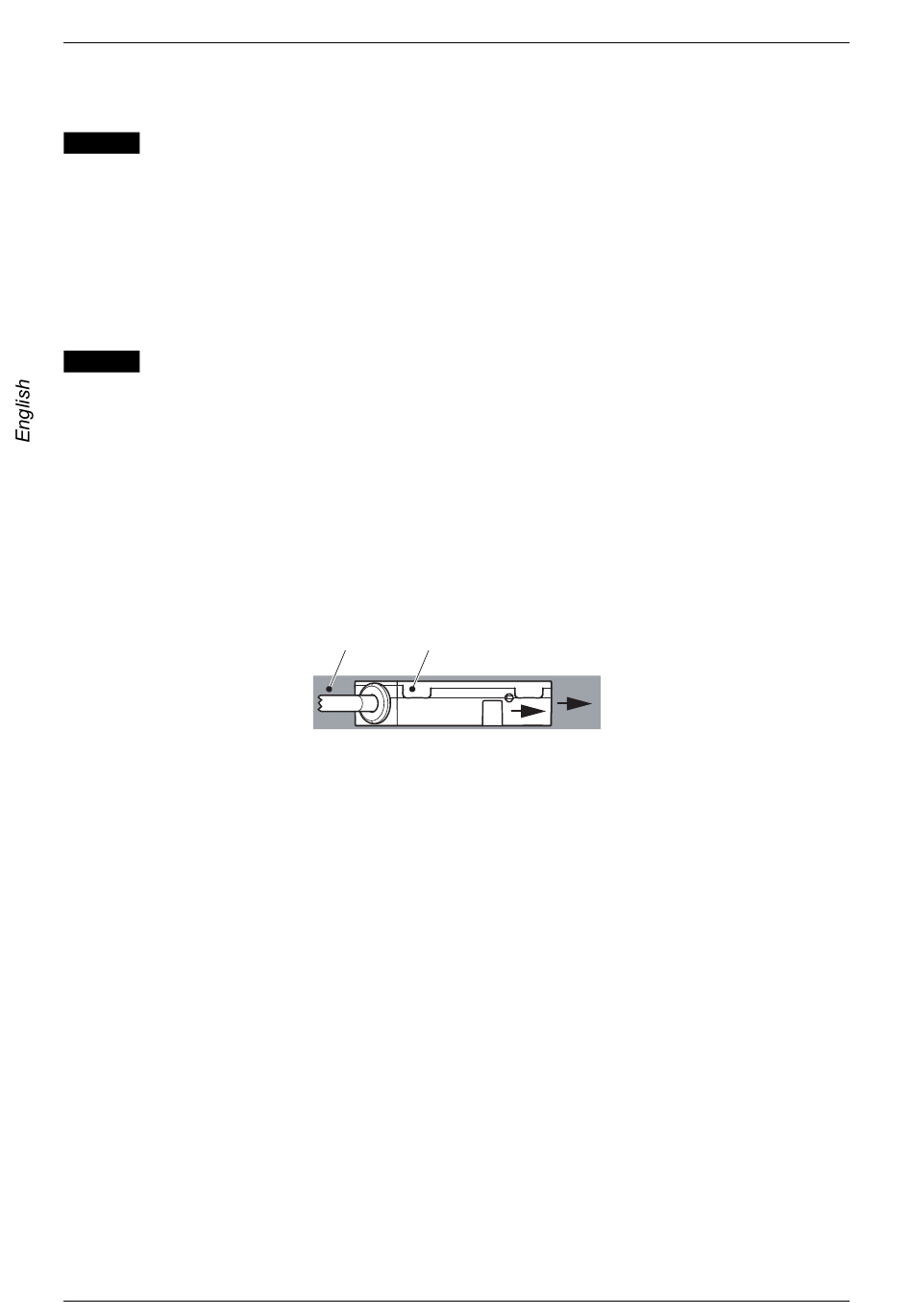

Correct assembly: Arrow directions of linear sensor and magnetic tape match
1
Magnetic tape
2
Linear sensor
Determine the counting direction of the linear system.
Determine the installation direction for the linear sensor and magnetic tape.
Determine the sensor distance.
Observe the mounting tolerances.
Determine magnetic tape length and masking tape length.
50
Preparations
(→ page
44ff) and requirements for the mounting location
1
2
Lenord+Bauer
GEL SELIN
