USER MANUAL
DPG Desk Panel & Desk Control Apps
117082-XDSM-XBHM
2023/12 Stand

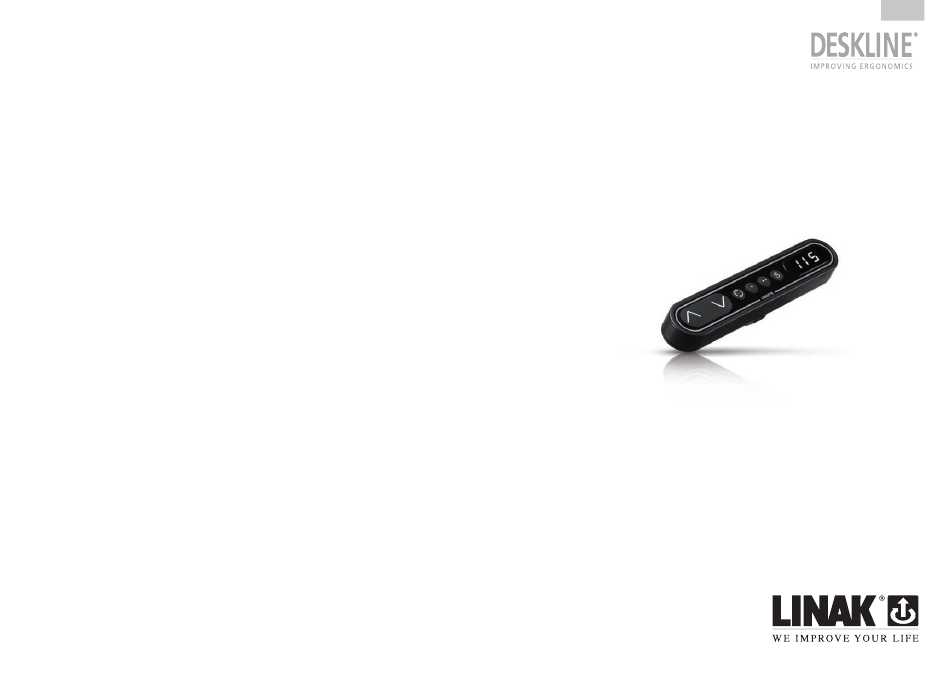

VXDSM-VXBHM - DPF 1C
Up and down movement
3 memory positions with DPF1C
Display with white LEDs
incl. gyro sensor
Ambient temperature: +5°C to +40°C
Compatible with DESKLINE® control boxes
Approved according to EN 60335-1 and UL962
To learn more about LINAK, please visit:
www.linak.com
The up and down buttons have been designed to
be particularly user-friendly as they are shaped
according to their function. The up and down buttons
have been made extra "user-friendly" as they are
shaped "according to the function" meaning the user
can feel the diff erences and it is not necessary to
look when operating the system.
The DPF has a display for reading the height in
centimetres or inches. The memory function allows
you to save your preferred positions. The display
switches off when not in use and therefore saves
power in standby mode. Another feature is that the
panel can be used as a diagnostic tool, as it can
display error codes of the drive system.
Color: deep black plastic (RAL 9005),
black front foil and buttons
with chrome-colored imprint
Black cable with modular jack plug, 1700 mm
(+/-70 mm) straight
Simple reference (simple system)
2/38 EN 114065
