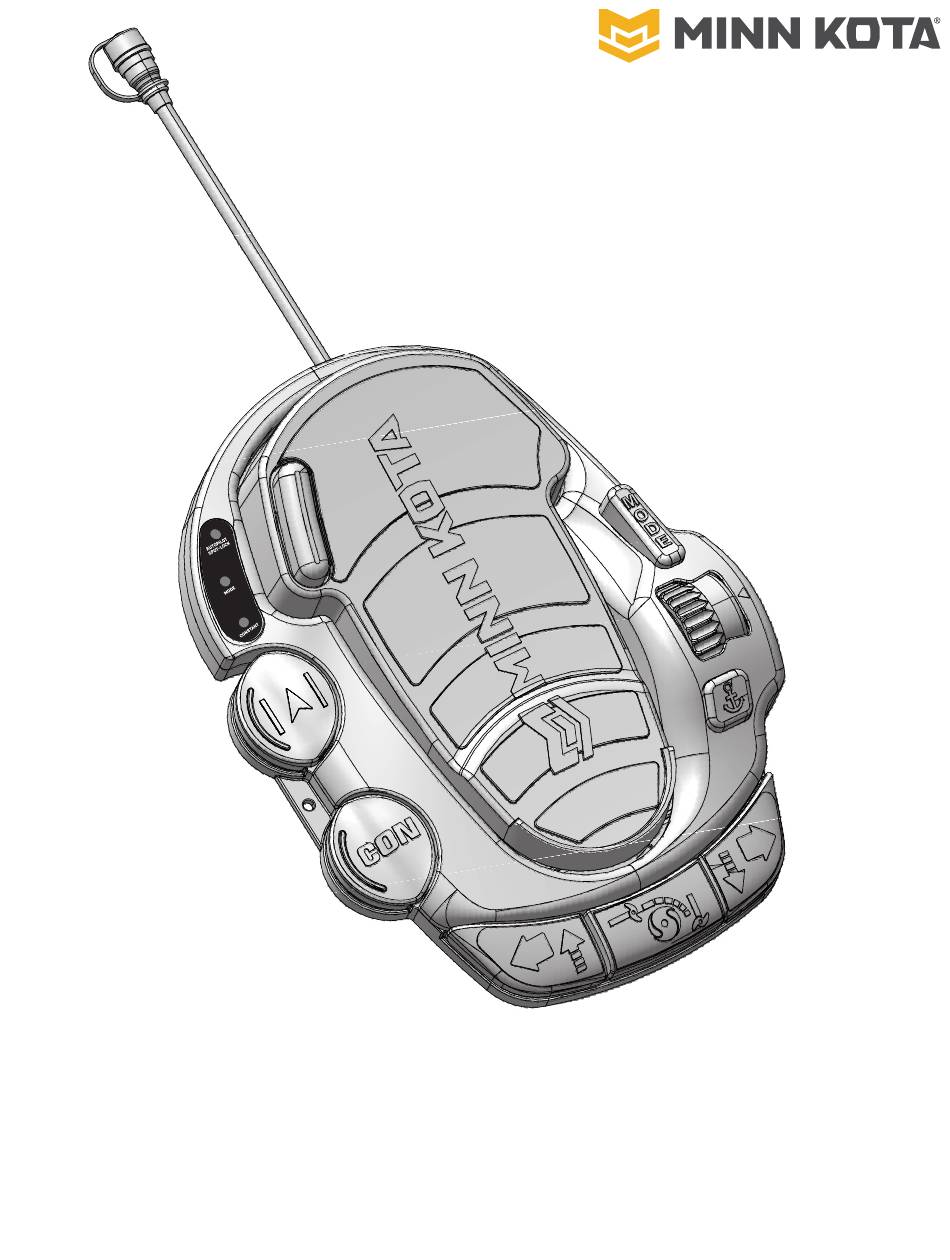

- Page 1 CORDED FOOT PEDAL FOR ULTERRA® & RIPTIDE® ULTERRA Owner's Manual Compatible with Ulterra and Riptide Ulterra trolling motors...
-
Page 2: Safety Considerations
SAFETY CONSIDERATIONS WARNING You are responsible for the safe and prudent operation of your vessel. We have designed your Foot Pedal to be an accurate and reliable tool that will enhance boat operation and improve your ability to catch fish. This product does not relieve you from the responsibility for safe operation of your boat. -
Page 3: Installation
The new Corded Foot Pedal accessory comes with everything needed to install it to the trolling motor. These instructions show how to install the Corded Foot Pedal to an Ulterra or a Riptide Ulterra. Please review the parts list and mounting considerations for installation prior to getting started. - Page 4 INSTALLATION INSTALLATION Installing the Foot Pedal ITEM(S) NEEDED #A x 1 #2 x 4 Take the Foot Pedal (Assembly #A) and turn it over. Put a Foot Pedal Pad (Item #2) in each of the pad locations. Foot Pedal Foot Pedal Bottom Bottom Adding the Foot Pedal pads is optional.
-
Page 5: Using The Foot Pedal
CONTROLLING SPEED & STEERING WITH THE FOOT PEDAL The Foot Pedal is used to operate the Ulterra or Riptide Ulterra trolling motor. The controls on the Foot Pedal are easy to use by either foot or hand. The motor can also be controlled with a Minn Kota Wireless Remote or any compatible Minn Kota remote. Refer to the associated remote manual for instructions. -
Page 6: Foot Pedal Operation
Control Head directly corresponds to the position of the motor. Use the foot pedal to control the steering direction during manual operation. Heel/Toe Steering functions the same in Normal Mode and Ulterra Mode. The direction of the motor can also be controlled with a remote. - Page 7 MODE When stowing or deploying the motor, keep fingers clear of all the Indicator Panel will illuminate when in Ulterra Mode. When the hinges, pivot points and all moving parts. When stowing and motor is deployed, press the Stow/Deploy button to stow it. When deploying the motor, ensure that it doesn’t contact the boat,...
- Page 8 SPOT-LOCK in both Normal Mode and Ulterra Mode. When AutoPilot is initiated from the Foot Pedal, the default AutoPilot mode is determined by the paired remote. AutoPilot can also be engaged and disengaged using the remote. For more specific directions on how to use AutoPilot, refer to your remote Owner’s Manual.
- Page 9 STOWING AND DEPLOYING THE MOTOR WITH THE FOOT PEDAL On the Foot Pedal, press the MODE button to put Indicator Indicator the Foot Pedal into Ulterra Mode. The amber MODE Panel Panel LED on the Indicator Panel will illuminate when in...
- Page 10 On the Foot Pedal, press the MODE button to put Indicator Indicator the Foot Pedal into Ulterra Mode. The amber MODE Panel Panel LED on the Indicator Panel will illuminate when in...
- Page 11 AutoPilot may be controlled with the Foot Pedal or a compatible Minn Kota remote. For more information on AutoPilot, refer to the paired remote Owner’s Manual online at minnkota.johnsonoutdoors.com.
- Page 12 While the motor is running, AutoPilot can be turned Foot Pedal Foot Pedal Indicator Indicator on by pressing the AutoPilot button located on Panel Panel the Foot Pedal or Minn Kota remote. AutoPilot AutoPilot (red) (red) The AUTOPILOT LED on the Indicator Panel AUTOPILOT AUTOPILOT...
- Page 13 SPOT-LOCK HOW SPOT-LOCK WORKS Spot-Lock uses a single point of reference that is recorded when the Spot-Lock button is pressed. The reference point is a set of GPS coordinates captured at the location of the trolling motor at the moment the button is pressed. This point is recorded and can be saved into one of the Spot-Lock memory locations.
- Page 14 SPOT-LOCK CONTROLLING SPOT-LOCK Toggle Spot-Lock On/Off While the motor is running, Spot-Lock can be turned Foot Pedal Foot Pedal Indicator Indicator on by pressing the Spot-Lock button located on Spot-Lock Spot-Lock Panel Panel (blue) (blue) the Foot Pedal. The SPOT-LOCK LED on the AUTOPILOT SPOT-LOCK...
-
Page 15: Service And Maintenance
Authorized Service Centers Minn Kota has over 800 authorized service centers in the United States and Canada where you can purchase parts or get your products repaired. Please visit our website to locate a service center in your area. -
Page 16: Environmental Compliance Statement
Minn Kota motors are not subject to the disposal regulations EAG-VO (electric devices directive) that implements the WEEE directive. Nevertheless never dispose of your Minn Kota motor in a garbage bin but at the proper place of collection of your local town council. -
Page 17: Fcc Compliance
COMPLIANCE STATEMENTS FCC COMPLIANCE This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference that may be received, including interference that may cause undesired operation. Changes or modifi cations not expressly approved by Johnson Outdoors Marine Electronics, Inc. -
Page 18: Parts Diagram & Parts List
PARTS DIAGRAM & PARTS LIST ULTERRA & RIPTIDE ULTERRA FOOT PEDAL Foot Pedal Parts Diagram 18 | minnkota.johnsonoutdoors.com ©2023 Johnson Outdoors Marine Electronics, Inc. - Page 19 PARTS DIAGRAM & PARTS LIST Foot Pedal Parts List Assembly Part # Description Quantity 2994743A FT PEDAL ASM ULTERRA 1.5 ACC. 2994859 BAG ASY-TERROVA/V2,RUB.BUMPERS Item Part # Description Quantity 2204501 BASE PLATE, FOOT PEDAL PCB ASSY, ULTERRA ✖ 2373440 SCREW-#4-24 X 1/4 PHCR SS TY B 2372103 SCREW-#6 X .375 PLASTITE SS...
