MINN KOTA RIPTIDE ULTERRA Quick Start Up Manual

POWER ON

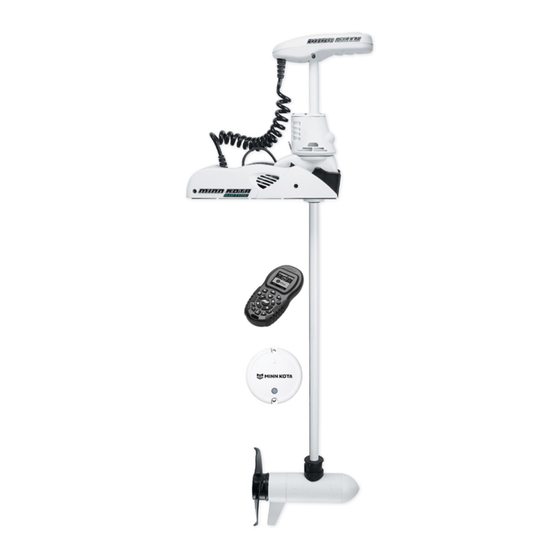

The Riptide Ulterra trolling motor
must be powered "on" manually.
The remote will not turn the
motor on. The power button is
located on the base of the mo-
tor. Pressing the power button
will turn on Riptide Ulterra. The
red STATUS light and the green
SYSTEM READY light will both
be illuminated when powered on.

POWER OFF

To power off Riptide Ulterra, press and hold the POWER button approximately three seconds,
until the green light turns off . Riptide Ulterra has an auto-shut off as well. It will automatically
power off after 1.5 hours of inactivity in the stowed position.

STATUS LIGHT

The red STATUS light indicates:
STATUS
Solid
SYSTEM READY
Flashing
Off
STATUS

SYSTEM READY LIGHT

The green SYSTEM READY light will remain lit while Riptide Ulterra is operating.
SYSTEM READY
If the green light does not remain illuminated after power up, this is an indicator
of insuffi cient voltage/power.

WARNING:

When the motor is powered off while off the ramps, never turn the lower unit of
the motor manually (by hand). This will aff ect the alignment of the motor and
cause it to stow improperly.
FOR A COMPLETE LISTING OF ULTERRA FAQS, VISIT MINNKOTAMOTORS.COM/RIPTIDEULTERRA
RIPTIDE ULTERRA QUICK START UP GUIDE

GETTING STARTED

: Motor is stowed
: Motor is stowing/deploying
: Motor is deployed or off
2207109ra 9/15
