Battery Status LED

When the battery status LED on the keypad glows green
the batteries are good. The color changes to red at a
midpoint during the runtime. When the LED begins to
blink red, only a few minutes remain.
The exact point at which the LED turns red will vary with
battery brand and condition, temperature and power
consumption. The LED is intended to simply catch your
attention, not to be an exact indicator of remaining time.
The proper battery type setting in the menu will increase
accuracy.
A weak battery will sometimes cause the LED to glow
green immediately after the transmitter is turned on, but
it will soon discharge to the point where the LED will
turn red or the unit will turn off completely.

RF Link LED

When a valid RF signal from a transmitter is received,
this LED will light up blue.

IR (infrared) Port

Settings, including frequency, name, compatibility
mode, etc. can be transferred between receiver and
transmitter.
Outputs
Headphone Monitor
A recessed, high duty cycle 3.5 mm stereo jack is pro-
vided for standard headphones and earphones.
Audio Jack (TA5M mini XLR):
• AES3
• Analog Line Out
The 5-pin output jack provides two discrete AES3
digital or line-level analog outputs. The connections
are configured as follows:
ANALOG
Pin 1 CH 1 and CH 2 Shield/Gnd
Pin 2 CH 1 +
Pin 3 CH 1 -
Pin 4 CH 2 +
Pin 5 CH 2 -
4 1
5
3 2
Rio Rancho, NM
DIGITAL
AES3 GND
AES3 CH 1
AES3 CH 2
--------------
--------------
TA5FLX connector
viewed from outside

USB Port

Firmware updates via Wireless Designer software are
made easy with the USB port on the side panel.

Battery Compartment

Two AA batteries are installed as marked on the rear
panel of the receiver. The battery door is hinged and
remains attached to the housing.

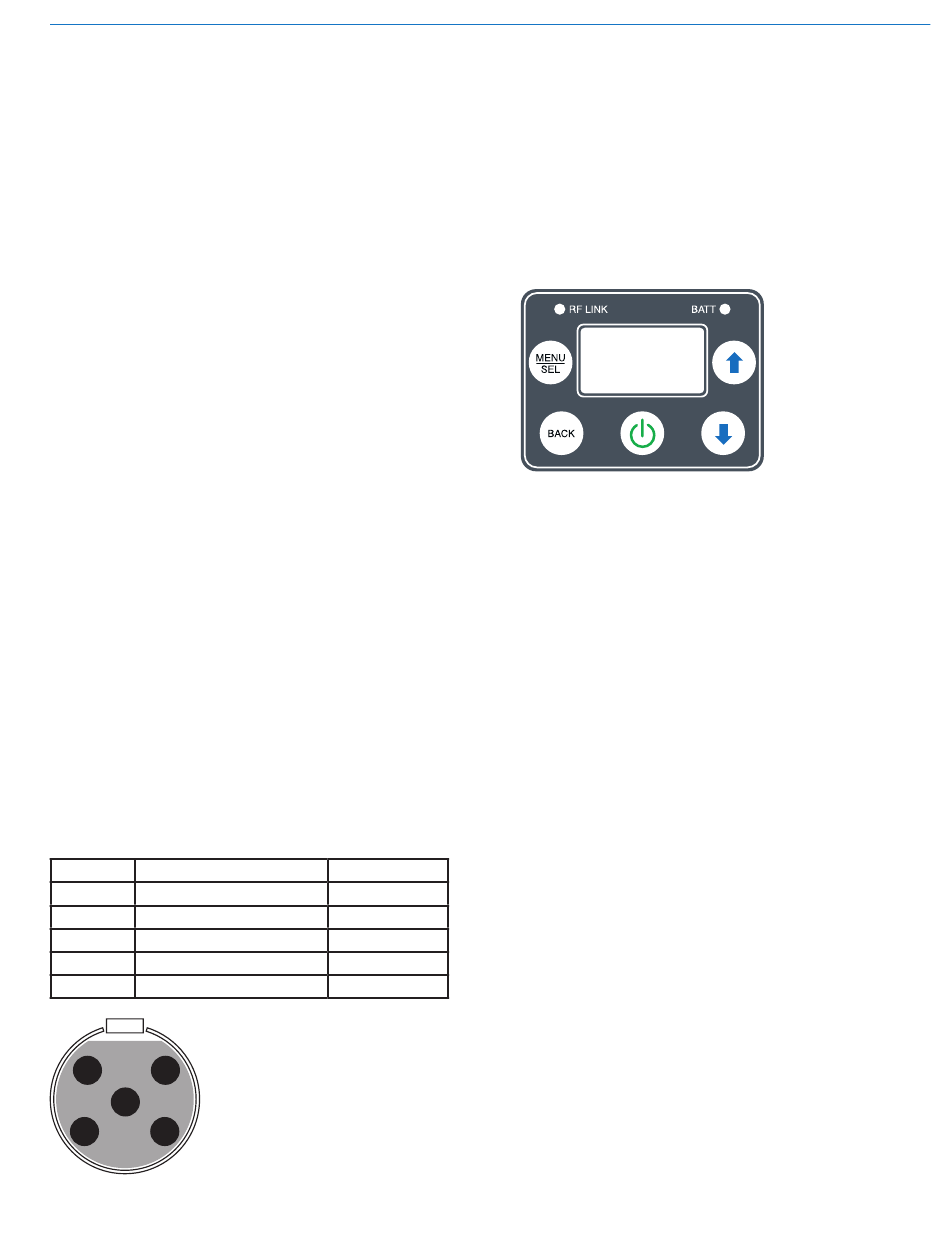

Keypad and LCD Interface

MENU/SEL Button
Pressing this button enters the menu and selects menu
items to enter the setup screens.
BACK Button
Pressing this button returns to the previous menu or
screen.
POWER Button
Pressing this button turns the unit on or off.
Arrow Buttons
Used to navigate the menus. When on Main Screen,
UP Button will turn LEDs on and DOWN Button will turn
LEDs off.
