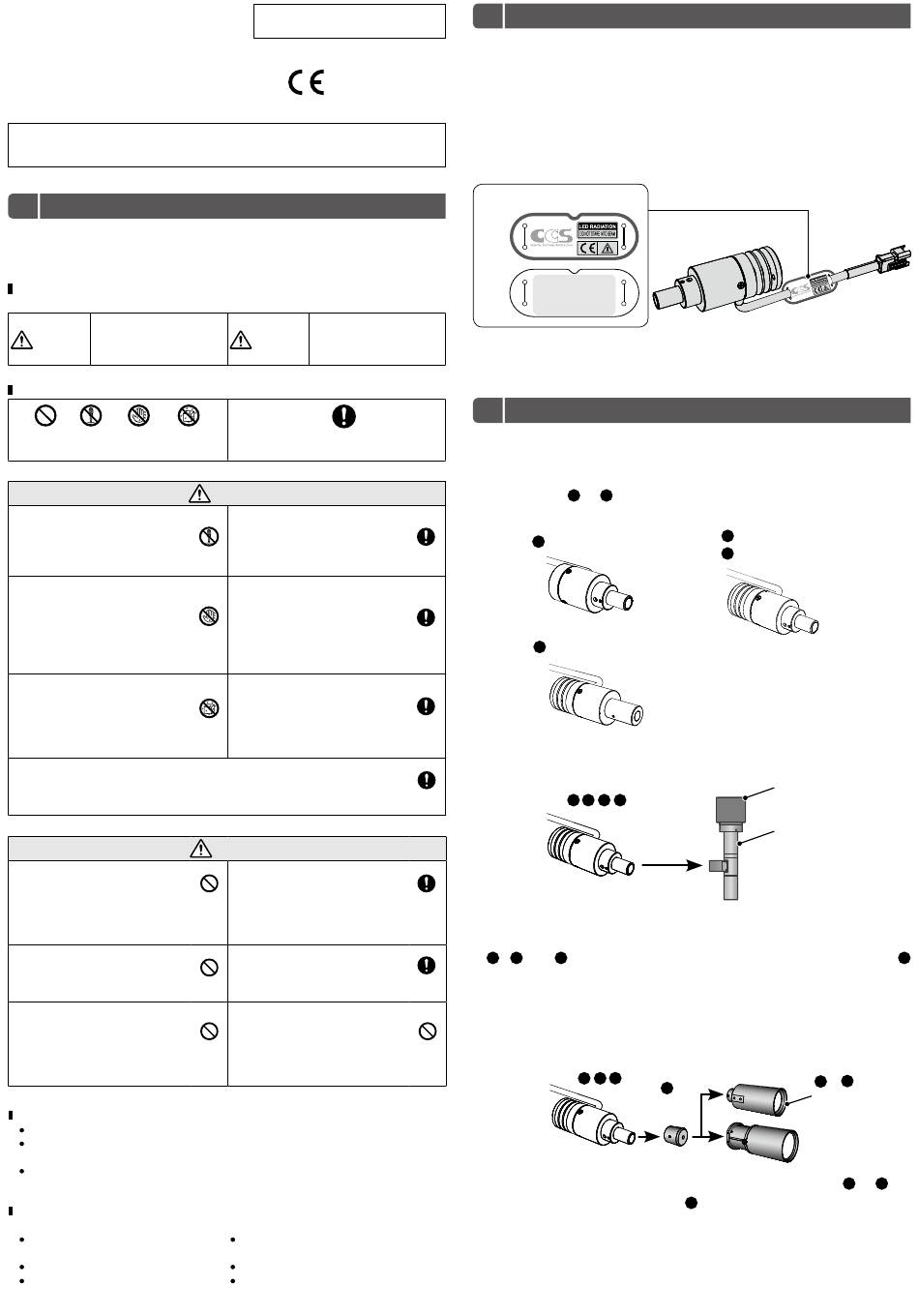

CCS HLV3-C Series Instruction Manual

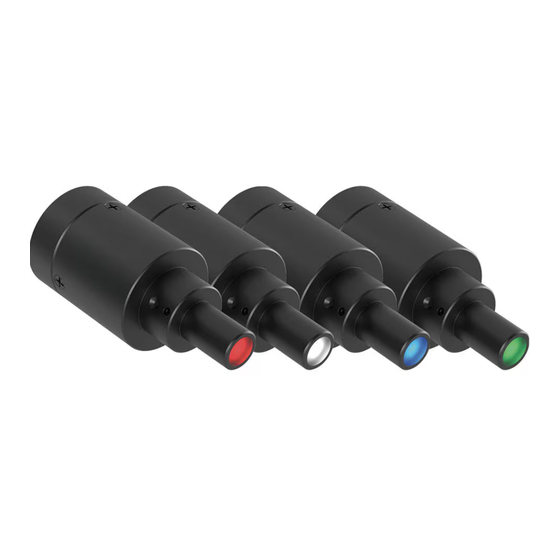

Spot Lights
HLV3- C Series
Instruction Guide
Thank you for purchasing a CCS product. To ensure proper use of the product,
please read this instruction guide before use and keep it for your future reference.
1 Important Information for Equipment Safety
These products have been designed with full consideration of safety. However,
incorrect usage of the products may result in fire, electric shock, or other serious
damages. Please ensure to follow the conditions below.
The following symbols are used in this instruction guide to indicate and
classify the relative importance of warnings and cautions.
Indicates that incorrect
Warning u s a g e m a y r e s u l t i n
serious injury or death.
The following symbols in the instruction guide indicate and classify the precautions.
PROHIBITED DISASSEMBLY DO NOT TOUCH DO NOT SUBJECT
PROHIBITED WITH WET HANDS TO MOISTURE
These symbols indicate prohibited actions.
Do not disassemble or modify the
Spot Light. Doing so may result in
fire or electric shock.
Do not touch the Spot Light with
wet hands. Doing so may result in
electric shock.
Make sure that the Spot Light
is free of moisture or any liquid.
Exposure to water may result in
fire or electric shock.
If abnormal condition occurs such as fuming, heat, smell, noise, or so on, stop
using the Spot Light immediately, turn OFF the Dedicated Control Unit and
unplug the power cord. A fire or electric shock may result if the Spot Light is
kept used.
Do not use user- made cables.
Doing so may cause Spot Light
failure. Use the CCS extension
cable if it is necessary to extend
the distance between the light and
the Control Unit.
Do not use the branc h c ables.
Doing so may c ause Spot Light
failure.
B e c a r ef u l o f s t a t i c e l e c t r i c i t y.
D a m a g e to t h e S p o t L i g ht m ay
occur, if a person charged with static
electricity touches it. Keep the Spot
Light away from all items charged
with static electricity.
Do not use the Light Unit in the following situations.
Under conditions or in an environment not described in this instruction guide.
In nuclear energy control systems, railroad systems, aviation systems, vehicles,
combustion equipment, medical equipment, amusement machines, or safety equipment.
In applications involving serious risk to life or property, particularly applications
demanding a high level of safety.
Please install the Light Unit to locations with following conditions.
Incorrect installation location may cause Light Unit failure.
In a flat and stable location with
minimal vibration.
Well-ventilated places with minimal dust.
Places that are not subject to sudden
temperature changes.
LED Light for Machine Vision
and Industrial Inspection
- Read Before Use -
Indicates that incorrect
Caution usage may result in injury
or property damage.
MANDATORY
ACTIONS
This symbol indicates required actions.
Warning
LED light radiation may cause
corneal or retinal abnormalities
if you look directly at the light. To
prevent harmful light exposure,
DISASSEMBLY
PROHIBITED
never look directly at the LED light.
T h i s p r o d u c t g e n e r a t e s h i g h
t e m p e r a t u r e s . D o n o t t o u c h t h e
Spot Light while it is turned on or
immediately after it is turned off, or
DO NOT TOUCH
burning may result. Provide cooling
WITH WET HANDS
with a fan or other ventilation if the Spot
Light is to be used in a closed space.
Connect or disconnect the light
c able only af ter tur ning of f the
Control Unit for LED Light Units.
Failure to do so may result in circuit
DO NOT SUBJECT
TO MOISTURE
damage, fire caused by a minute
spark, or electric shock.
Caution
Use a standard Extension Cable
that is manufac tured by CC S.
However, if the cable is too long,
PROHIBITED
the light intensity will decrease
due to voltage drop caused by the
DC resistance of the cable.
Always connect the Spot Lights
to the Dedicated Control Units
specified by CCS. Not doing so
PROHIBITED
may cause Spot Light failure.
Do not drop the Spot Light or
subjec t it to impac t. Doing so
m a y c a u s e t h e S p o t L i g h t t o
PROHIBITED
malfunction.
Places free from any water, oil, liquid,
chemical, or steam.
Places free from corrosive or combustible gas.
Places away from water faucets, boilers,
humidifiers, air conditioners, heaters, or stoves.
2 Confirming Product Information
The following tag is attached to the cable on the LED Light. The
color of the label indicates the luminescence color of the Light.
The back of the tag there is a name label that gives the model
number, power consumption, and serial number. Be sure to check
the contents before using the product and handle the label with
care. If the label is missing or damaged and the contents cannot be
checked, please contact CCS Inc.
Tag example
Front
M O D E L H L V 3 - n n R D - ｎ C
I N P U T
Back S / N
M a n u f a c t u r e r : C C S I n c .
3 7 4 O k a k u e n c h o , K a m i g y o - k u ,
K y o t o 6 0 2 - 8 0 1 1 , J a p a n
E U I m p o r t e r : C C S E u r o p e N . V .
B e r g e n s e s t e e n w e g 4 2 1 B ,
1 6 0 0 S i n t - P i e t e r s - L e e u w , B e l g i u m
M A D E I N J A P A N
3 Major Combinations
The HLV3-C-series Spot Lights are used in combination with a
coaxial lens or other equipment. Refer to the following figures, mount
the Spot Light on a coaxial lens, and fix it with an appropriate torque.
The numbers ( to
1
Main Specifications and 8. Dimensions.
1 HLV3-22-1C Series
MANDATORY
ACTIONS
MANDATORY
ACTIONS
3 HLV3-22-2C-1220 Series
MANDATORY
ACTIONS
Mounting on a Coaxial Lens
MANDATORY
1 2
ACTIONS
MANDATORY
ACTIONS
The Spot Light can be mounted on a coaxial lens.
The inner diameter of the lens for mounting the Spot Light
, , or must be 8 mm, and that for the Spot Light
1 2 4
must be 12 mm.
MANDATORY
ACTIONS
Mounting on a Condenser Lens
(Optional Product, Sold Separately)
PROHIBITED
1
The Spot Light can be mounted on a Condenser Lens (
Use a Light Aperture Adapter (
For detailed dimensions of the Condenser Lenses and Light
Aperture Adapters, refer to 9. Optional Accessories (Sold
Separately).
- 1 -
n n n m A = n . n W
0 1 2 3 4 5 6 7 8 9
) in the figures below correspond to those in 7.
4
2 HLV3-22-2C Series
4 HLV3-22-4C Series
3 4
2 4
10
SB-HL2
series
) as needed.
10
Camera
Coaxial lens
(macro lens or
telecentric lens)
3
5 9
to
HL-30,
HL-24-21,
HL2-25-P,
HL2-50-P, or
HL2-M50-C
to ).
5 9
