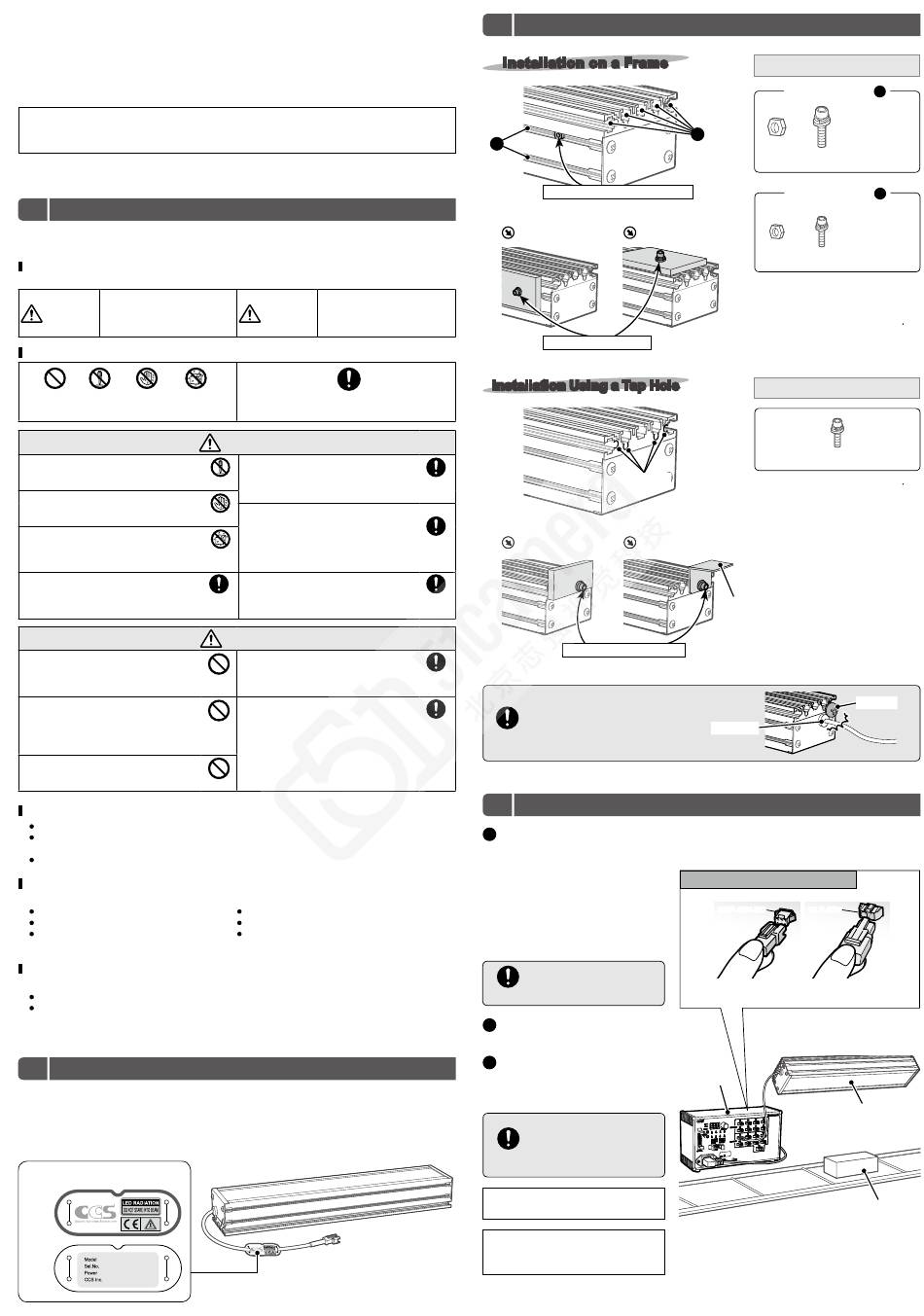

CCS HLDL2 Series Instruction Manual

HLDL2

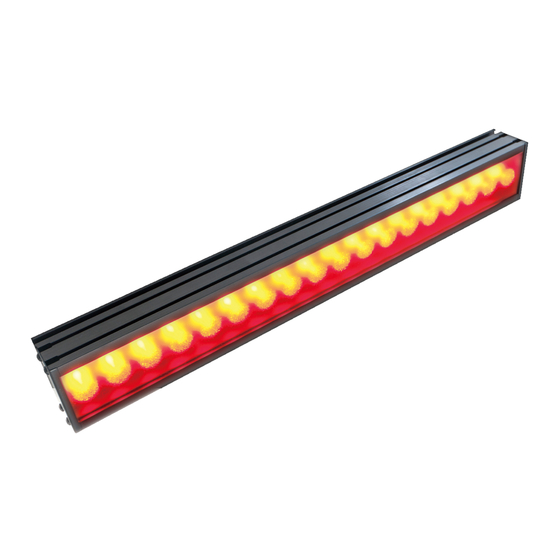

Bar Lights
Instruction Guide
Thank you for purchasing a CCS product. To ensure proper use of the product,
please read this instruction guide before use and keep it for your future reference.
1 Important Information for Equipment Safety
Incorrect usage of the product may result in fire, electric shock, or other serious damages.
Please ensure to follow the conditions below.
The following symbols are used in this instruction guide to indicate and classify
the relative importance of warnings and cautions.
Indicates that incorrect usage
Warning
may result in serious injury or
death.
The following symbols in the instruction guide indicate and classify the precautions.
PROHIBITED DISASSEMBLY DO NOT TOUCH DO NOT SUBJECT
PROHIBITED WITH WET HANDS TO MOISTURE
These symbols indicate prohibited actions.
Do not disassemble or modify the product.
Doing so may result in fire or electric shock.
Do not touch the product with wet hands.
Doing so may result in electric shock.
Make sure that the product is free of moisture
or any liquid. Exposure to water may result in
fire, electric shock, or product failure.
Connect or disconnect the light cable only after
turning off the LED light. Failure to do so may
result in circuit damage, fire caused by a minute
spark, or electric shock.
Do not use user-made cables. Doing so may
cause product failure. Use the CCS extension
cable if it is necessary to extend the distance
between the light and the control unit.
Be careful of static electricity.
Damage to the LED light may occur, if a
person charged with static electricity touches
it. Keep the product away from all items
charged with static electricity.
D o not drop the produc t or subjec t it to
impact. Doing so may cause the product to
malfunction.
Do not use the product in the following situations.
Under conditions or in an environment not described in this instruction guide.
In nuclear energy control systems, railroad systems, aviation systems, vehicles, combustion equipment,
medical equipment, amusement machines, or safety equipment.
In applications involving serious risk to life or property, particularly applications demanding a high level of safety.
Please install the product to locations with following conditions.
Incorrect installation location may cause product failure.
In a flat and stable location with minimal vibration.
Well-ventilated places with minimal dust.
Places that are not subject to sudden temperature
changes.
Use the product under the following conditions.
Using the product under any other conditions may damage the product.
Operating temperature: 0 to 40°C, Humidity: 20 to 85%RH (with no condensation)
Storage temperature: -20 to 60°C, Humidity: 20 to 85%RH (with no condensation)
2 Confirming Product Information
The following tag is attached to the cable on the LED Light. The color of the label indicates the
luminescence color of the Light. The back of the tag there is a name label that gives the model
number, power consumption, and serial number. Be sure to check the contents before using the
product and handle the label with care. If the label is missing or damaged and the contents cannot
be checked, please contact CCS Inc.
Tag example
Front
HLDL2-300×45RD-DF-N
600103-012345
Back
24V/28W
MADE IN JAPAN
Series
- Read Before Use -
I n d i c a t e s t h a t i n c o r r e c t
Caution
usage may result in injury or
property damage.
MANDATORY
ACTIONS
This symbol indicates required actions.
Warning
LED light radiation may cause corneal or
retinal abnormalities if you look directly at
the light. To prevent harmful light exposure,
DISASSEMBLY
PROHIBITED
never look directly at the LED light.
This product generates high temperatures.
DO NOT TOUCH
Do not touch the product while it is turned on
WITH WET HANDS
or immediately after it is turned off, or burning
may result. Provide cooling with a fan or
other ventilation if the product is to be used in
DO NOT SUBJECT
TO MOISTURE
a closed space.
If abnormal condition occurs such as fuming,
heat, smell, noise, or so on, stop using the product
MANDATORY
immediately, and turn the power off. A fire or
ACTIONS
electric shock may result if the product is kept used.
Caution
Use a control unit that is suitable for the
product ratings. Using an incorrect control unit
can cause product failure.
PROHIBITED
Use a st andard E x tension Cable that is
manufactured by CCS. If the cable is too long,
the voltage across the Bar Light will drop due
PROHIBITED
to the DC resistance of the cable, and the light
intensity will decrease.
PROHIBITED
Places free from any water, oil, liquid, chemical, or steam.
Places free from corrosive or combustible gas.
Places away from water faucets, boilers, humidifiers,
air conditioners, heaters, or stoves.
3 Installation
Installation on a Frame
2
Insert the nut into the slit in the frame.
Side Installation
Fix the product with screw.
Installation Using a Tap Hole
MANDATORY
ACTIONS
Direct Installation
MANDATORY
ACTIONS
MANDATORY
ACTIONS
Fix the product with M4 screw.
MANDATORY
ACTIONS
Do not use a screw with a big screw head
MANDATORY
ACTIONS which interferes the cable bush.
MANDATORY
ACTIONS
4 Operating Instructions
Connect the light cable of the product
1
to the control unit output connector.
If the light emitting surface of the Bar
Light is 150 to 450 mm, connect the
power output connector to an SMP-
03V-BC Connector.
If the light emitting surface of the Bar
Light is 600 to 1200 mm, connect the
power output connector to an ELR-
02V Connector.
Make sure that the control unit is
turned OFF before connecting.
MANDATORY
ACTIONS
2
Turn ON the control unit to turn ON
the light.
3 Adjust light range, light angle, and
radiant quantity to optimize images.
Adjust the radiant quantity at the
control unit.
When using white LED lights
with c olor image proc essing
equipment, readjust the white
balance of the camera according
MANDATORY
ACTIONS
to the operating conditions.
Read the instruction guide of the
control unit before use.
For information on applicable Control
Units and cables, refer to the product
catalogs or the CCS website.
Mounting to a frame
1
M5 nuts
Mounting to a frame
Rear Installation
M3 nuts
* Determine the screw interval according to
the applic ation environment and use a
suitable number of screws for installation.
* Recommended tightening torque: 0.6 N m
Tapped holes
* Recommended tightening torque: 0.6 N m
Installation with Brackets
Required Parts: Brackets
Cable bush
Connector Connection Diagrams
SMP-03V-BC SMP-03V-BC
Insert the plug all the way into the connector.
Control unit
Required Parts
1
Use M 5 sc rews
that are no more
than 6mm longer
than the thickness
of the mounting
M5 screws
surface.
2
Use M3 sc rews
that are no more
than 4mm longer
than the thickness
of the mounting
M3 screws
surface.
Required Parts
M4 screws
M4 screw
ELR-02V ELR-02V
HLDL2 series
Inspection object
- Conceptual Diagram -
