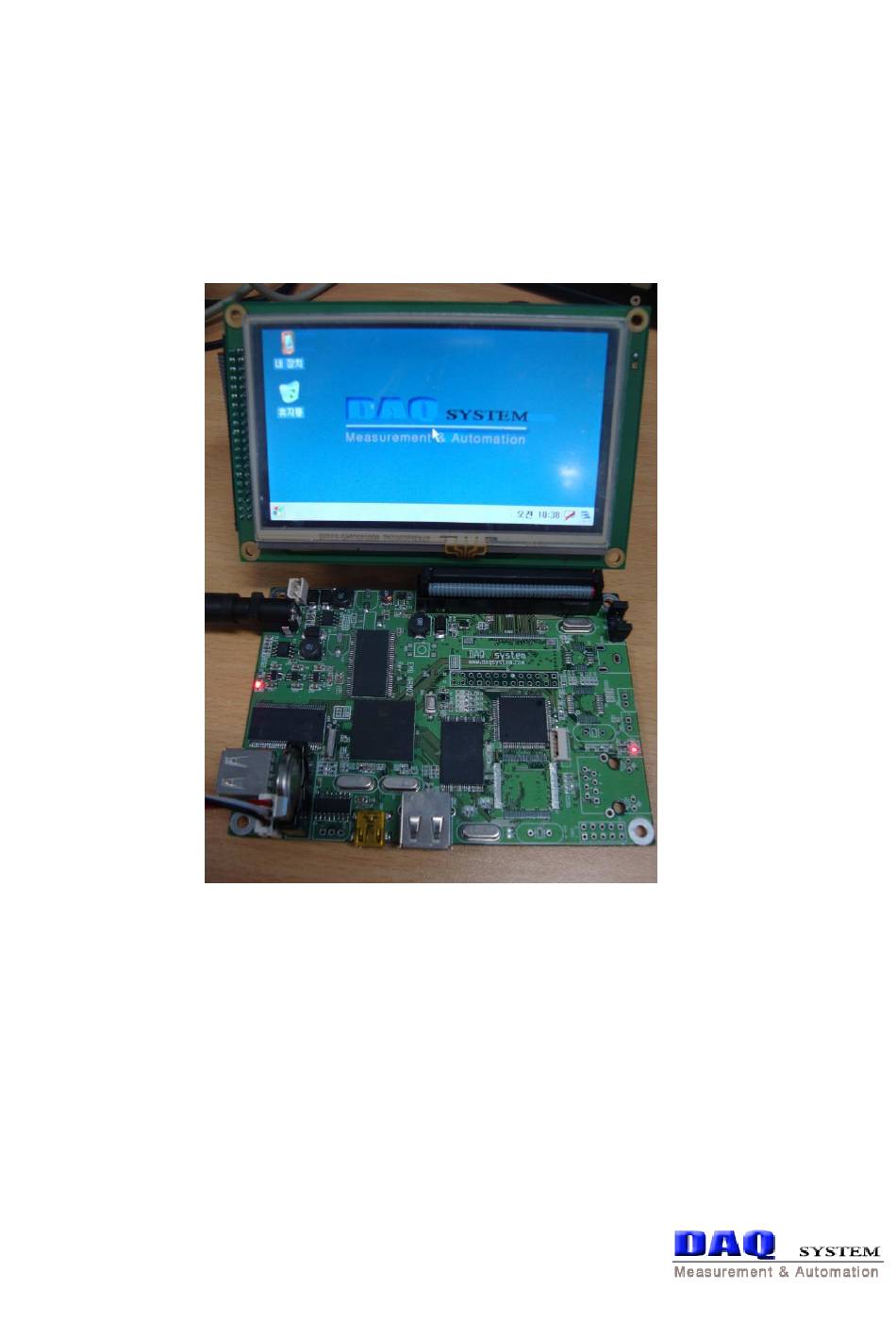

EMB-ARM02
User Manual
Version 1.0
ⓒ 2005 DAQ SYSTEM Co., Ltd. All rights reserved.
Microsoft® is a registered trademark; Windows®, Windows NT®, Windows XP®, Windows 7®, Windows 8®, Windows 10®
All other trademarks or intellectual property mentioned herein belongs to their respective owners.
Information furnished by DAQ SYSTEM is believed to be accurate and reliable, However, no responsibility is assumed by DAQ SYSTEM for its use, nor
for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under
any patent or copyrights of DAQ SYSTEM.
The information in this document is subject to change without notice and no part of this document may be copied or reproduced without the prior
written consent.
Advertisement
Table of Contents
Related Manuals for DAQ system EMB-ARM02
Summary of Contents for DAQ system EMB-ARM02
- Page 1 All other trademarks or intellectual property mentioned herein belongs to their respective owners. Information furnished by DAQ SYSTEM is believed to be accurate and reliable, However, no responsibility is assumed by DAQ SYSTEM for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or copyrights of DAQ SYSTEM.
-
Page 2: Table Of Contents
EMB-ARM02 User’s Manual Contents 1. EMB-ARM02 Introduction 1-1 Features -------------------------------------------------------------------------- 1-2 Internal Block Diagram --------------------------------------------------------------------- 2. Connectors and Switches Layout -------------------------------------------------------------------------- 2-2 Boot Mode Switch CN1) --------------------------------------------------------------------- 2-3 LCD Interface ---------------------------------------------------------------------------- 2-4 JTAG(J2) --------------------------------------------------------------------------- 2-5 Digital IO(J3) -------------------------------------------------------------------------- 2-6 Power Input(J6, J7) -
Page 3: Emb-Arm02 Introduction
EMB-ARM02 User’s Manual 1. EMB-ARM02 Introduction This document describes the Embedded Single Board Computer (SBC) EMB-ARM02 with WINDOWS CE OS based on ARM9 processor. Features Dual 32bit CPU Processor 128-Mbyte DDR-RAM 64-Mbyte NAND Flash Memory 480 * RGB * 272 TFT LCD Interface with Touch Screen USB 2.0 Host + USB 1.1 Device Interface... -
Page 4: Connectors And Switches
EMB-ARM02 User’s Manual 2. Connectors and Switches The location of the main parts of the EMB-ARM02 board is as shown in [Figure 2-1]. This section describes the functions of connectors and switches. 2-1 Layout CON2 BATTERY CPU MODE select CN4,CN6... -
Page 5: Lcd Interface
EMB-ARM02 User’s Manual 2-3 LCD Interface (CON2) It is a connector for TFT LCD connection. CON2 BOX HEADER 2x20,2.54mm [Table 1. TFT LCD Interface Connector] Pin No. Pin Name Description Remark Reserved VCC_LCD POWER Power, 3.3V LCD_R0 RED signal data bus(LSB) -
Page 6: Jtag(J2)
EMB-ARM02 User’s Manual Pin No. Pin Name Description Remark LCD_PCI Display on/off mode control LCD_CLK Dot clock signal LCD_VSYNC Vertical synchronous signal LCD_HSYNC Horizontal synchronous signal Reserved LCD_DE Data enable signal Touch panel signal(X-Right) Touch panel signal(X-Left) Touch panel signal(Y-Bottom) -
Page 7: Digital Io(J3)
EMB-ARM02 User’s Manual 2-5 Digital IO (J3) 3.3V TTL/CMOS support Digital Input/Output connector for user input/output. HEADER 2x13,2.54mm [Table 3. Digital IO Interface Connector] Pin No. Pin Name Description Remark DI[0] Digital Input(LSB) DI[1] Digital Input DI[2] Digital Input DI[3]... -
Page 8: Power Input(J6, J7)
EMB-ARM02 User’s Manual 2-6 Power Input (J6, J7) This is the DC power connector that supplies the board. 5267-02,MOLEX DC JACK [Table 4. Power Input Connector] Pin No. Pin Name Description Remark VCC_12V 12V DC INPUT Power, 12V Ground Power 2-7 RESET Switch (SW1) This is the hardware reset switch on the board. -
Page 9: Bsp Build
EMB-ARM02 User’s Manual 3. BSP Build BSP (Board Support Package) for device support in WINDOWS CE 5.0 operating system is provided as an installation package (“MP2530F_TEST_SDK.msi”). For this, “Windows CE 5.0” must be installed on the development PC, and the build environment can be obtained through Internet search. Please use... -
Page 10: Os Update
EMB-ARM02 User’s Manual 4. OS Update The image created by the update of the provided BSP must be reinstalled in NAND flash memory to be applied to the platform. Refer to Chapter 22 of the document “WinCE5.0 BSP Build Guide for MP2530F.pdf”. -
Page 11: Update
EMB-ARM02 User’s Manual 4-2 Update 1. Turn on the power switch to boot the board. 2. A message waiting for keyboard input appears in the download program as shown in [Figure 4-1]. If the message does not appear, it is necessary to check the RS-232 cable connection between the board and the PC, and check the RS-232 port input/output of the PC. - Page 12 EMB-ARM02 User’s Manual 3. Press the keyboard [SPACE] bar within 3 seconds after booting. As shown in [Figure 4-2], “Boot Loader Configuration” menu appears. [Figure 4-2. Bootloader settings menu]...
- Page 13 EMB-ARM02 User’s Manual 4. Enter “3” on the keyboard to execute “Image Update”. As shown in [Figure 4-3], a menu appears to select the update type. 5. Enter “4” on the keyboard to run “OS Update”. 6. Execute “USB Port”, “Transmit”, and select “NK.nb0” file in “Open”.
-
Page 14: Application
EMB-ARM02 User’s Manual 5. Application Various applications can be executed on the board in the WINDOWS CE environment. Basically, Digital IO-related programs implemented with “Visual C++” of “Microsoft Visual Studio 2008” are provided. Based on this, the desired function is directly implemented and used. -
Page 15: Appendix
(3) All DAQSYSTEM products have a one-year warranty. -. The warranty period is counted from the date the product is shipped from DAQ SYSTEM. -. Peripherals and third-party products not manufactured by DAQ SYSTEM are covered by the manufacturer's warranty. - Page 16 EMB-ARM02 User’s Manual MEMO Contact Point Web sit : https://www.daqsystem.com Email : postmaster@daqsystem.com...
