EMB-CPU04
User Manual
Version 1.0
ⓒ 2005 DAQ SYSTEM Co., Ltd. All rights reserved.
Microsoft® is a registered trademark; Windows®, Windows NT®, Windows XP®, Windows 7®, Windows 8®, Windows 10®
All other trademarks or intellectual property mentioned herein belongs to their respective owners.
Information furnished by DAQ SYSTEM is believed to be accurate and reliable, However, no responsibility is assumed by DAQ SYSTEM for its use, nor
for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under
any patent or copyrights of DAQ SYSTEM.
The information in this document is subject to change without notice and no part of this document may e copied or reproduced without the prior
written consent.
Advertisement
Table of Contents
Related Manuals for DAQ system EMB-CPU04
Summary of Contents for DAQ system EMB-CPU04
- Page 1 All other trademarks or intellectual property mentioned herein belongs to their respective owners. Information furnished by DAQ SYSTEM is believed to be accurate and reliable, However, no responsibility is assumed by DAQ SYSTEM for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or copyrights of DAQ SYSTEM.
-
Page 2: Table Of Contents
EMB-CPU04 User‟s Manual Contents 1. EMB-CPU04 Introduction 1-1 Features ----------------------------------------------------------------------------- 1-2 Specifications --------------------------------------------------------------------------- 2. EMB-CPU04 Appearance ------------------------------------------------------------ 3. Driver Installation Sound Driver -------------------------------------------------------------------------- LAN Driver --------------------------------------------------------------------------- Touch Driver -------------------------------------------------------------------------- 3-4 Graphic Driver --------------------------------------------------------------------------- 4. Display Setup 4-1 Installation with LCD... -
Page 3: Emb-Cpu04 Introduction
EMB-CPU04 User‟s Manual 1. EMB-CPU04 Introduction EMB-CPU04 is a Single Board Computer (SBC) that provides a solution suitable for the embedded market that wants low cost, low power and small size equipped with Intel Atom Z520PT Processor. 1-1 Features Intel Atom Processor Z520PT(Z510PT, Z530P) ... - Page 4 EMB-CPU04 User‟s Manual PC card slots NVRAMs Display Support LVDS, VGA Dual Display Ethernet one 10/100/1000 Mbps Ethernet port EIDE 2mm pitch 44pin EIDE connector Audio HD Codec audio with mono speaker AMP Serial I/O Two serial ports , one can be used as touch input...
-
Page 5: Emb-Cpu04 Appearance

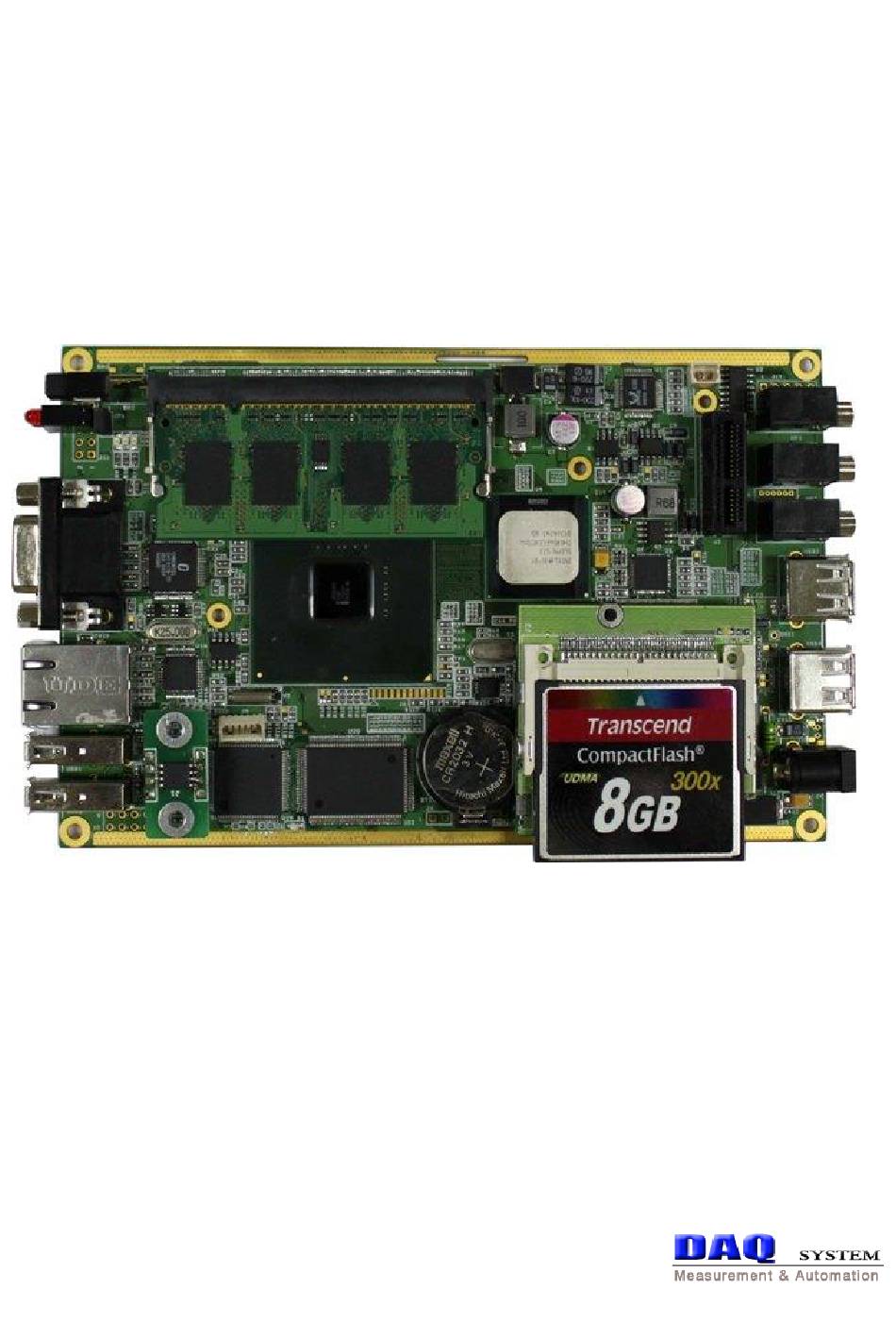

EMB-CPU04 User‟s Manual 2. EMB-CPU04 Appearance Intel Atom Z510PT / SO-DIMM Z520PT Power Intel COM 1 DDR2 Express Z530P US15WPT Memory Slot Speaker Operation Indicator Line USB 3 USB 4 Ethernet DC power USB 1 Input USB 2 Two USB 10pin Header IDE 2.0mm 44PIN... - Page 6 EMB-CPU04 User‟s Manual 4. PIN : Touch screen 5. PIN : GND Speaker SPK connecter MIC connector Line AUX connector USB 1~4 USB connecter DC Power Input Single +9 to +15V range power max current is 1.5A IDE 2.0mm 44 PIN...
-
Page 7: Driver Installation
EMB-CPU04 User‟s Manual 3. Driver Installation 3-1 Sound Driver Install the sound driver by executing the CDROM:\Driver\audio\audio_WDM_R241\setup.exe file. 3-2 LAN Driver - Install the LAN driver by executing the CDROM:\Driver\Lan\AsusSetup.exe file. -
Page 8: Touch Driver
EMB-CPU04 User‟s Manual 3-3 Touch Driver - Install the Touch driver by executing the CDROM:\Driver\Touch\SetupVista32-RS232.exe file. - If you double-click the execution screen, the following screen appears. - Click “HW Info” in the picture below. - Click the „Auto Search Touch‟ button in “HW Info” to check the connection port. -
Page 9: Graphic Driver
EMB-CPU04 User‟s Manual - When the screen below appears, press and hold the blinking point. (Make sure to keep holding until the progress bar at the bottom is done.) - If you press all the way down in the correct order, the above screen appears. Click “Yes” to exit and you are done. -
Page 10: Display Setup
EMB-CPU04 User‟s Manual 4. Display Setup 4-1 Installation with LCD Right-click on the desktop and select “Graphics Properties… Select ”. 1) MID Monitor Single Output When only MID Monitor is connected, only single display setting is possible. (Single screen output to MID Monitor) - Page 11 EMB-CPU04 User‟s Manual 2) MID Monitor AND Desk Top Monitor Single Output When both MID Monitor and Desk Top Monitor (VGA Connecter) are connected, “Graphic Properties… ” This is the setting screen. In the “Single Display” setting, you can choose between MID Monitor or Desk Top Monitor for...
- Page 12 EMB-CPU04 User‟s Manual 3) MID Monitor AND Desk Top Monitor Multiple Output - When “Intel(R) Dual Display Clone” is set in “Multi-Display” setting, the same screen output is possible on MID Monitor and Desk Top Monitor. (same screen output) - When setting “Expanded Desktop”, one of MID Monitor and Desk Top Monitor can be used as an...
-
Page 13: Installation Method When Only The Desk Top Monitor Is Connected Without Lcd
EMB-CPU04 User‟s Manual 4-2 Installation method when connecting only Desk Top Monitor without LCD After installing the Graphic Driver and rebooting, the Windows logo screen is displayed on the Desk Top Monitor as follows. When the logo screen is finished, the graphic driver outputs the screen to the initial setting LCD, so no image is displayed on the Desk Top Monitor. -
Page 14: Appendix
(3) All DAQSYSTEM products have a one-year warranty. -. The warranty period is counted from the date the product is shipped from DAQ SYSTEM. -. Peripherals and third-party products not manufactured by DAQ SYSTEM are covered by the manufacturer's warranty. - Page 15 EMB-CPU04 User‟s Manual MEMO Contact Point Web sit : https://www.daqsystem.com Email : postmaster@daqsystem.com...
