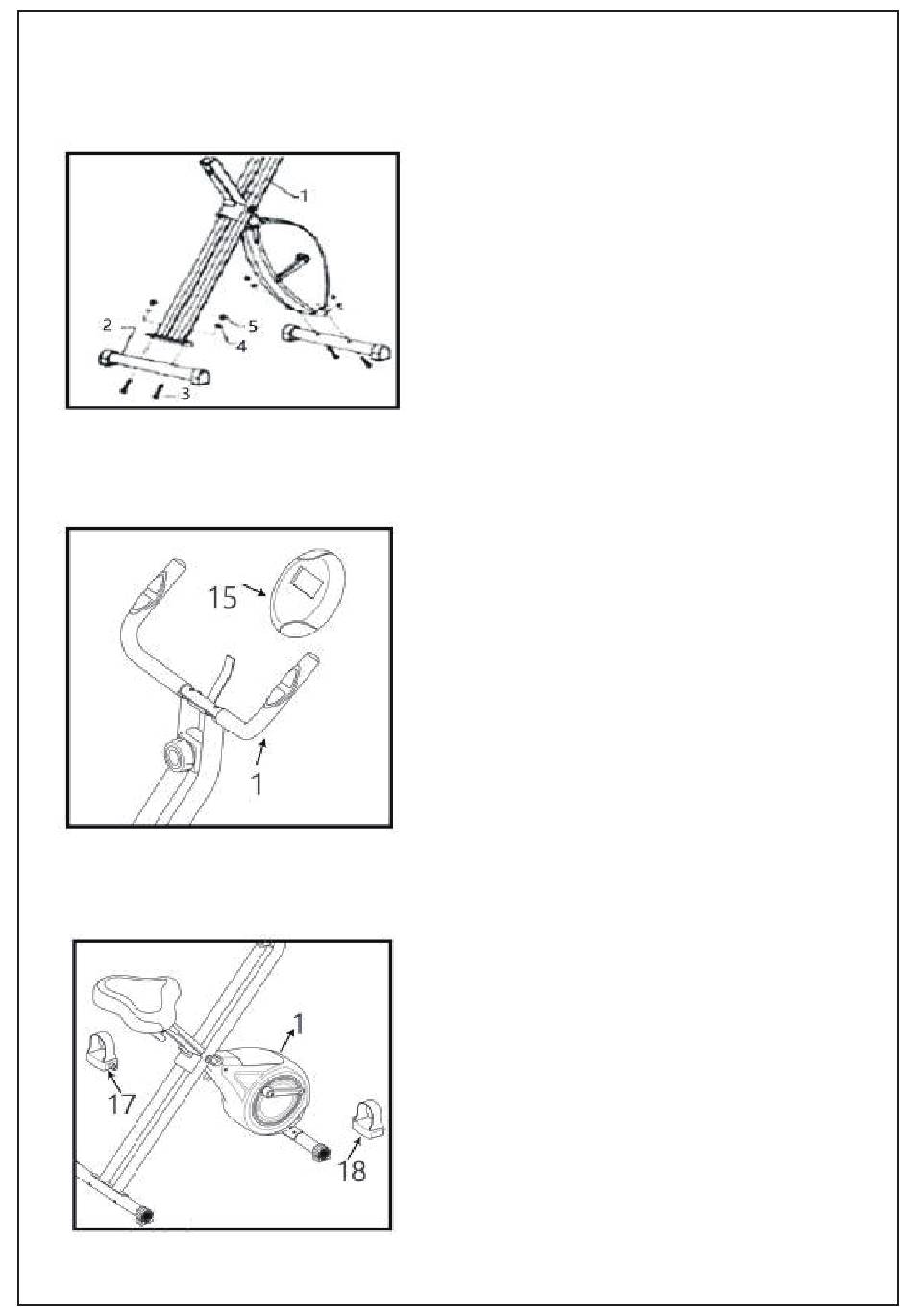

4. Attach the main frame (1) to the leg tube (2), connect it with the carriage bolts (3)
and the unit type gasket (4) and the lock nut (5), using a key to tighten it.
5. Attach the console screen (15) to the main frame (1) using a key to tighten it.
6. Attach the main frame (1) to the pedal (17)(18) using a key to tighten it.
