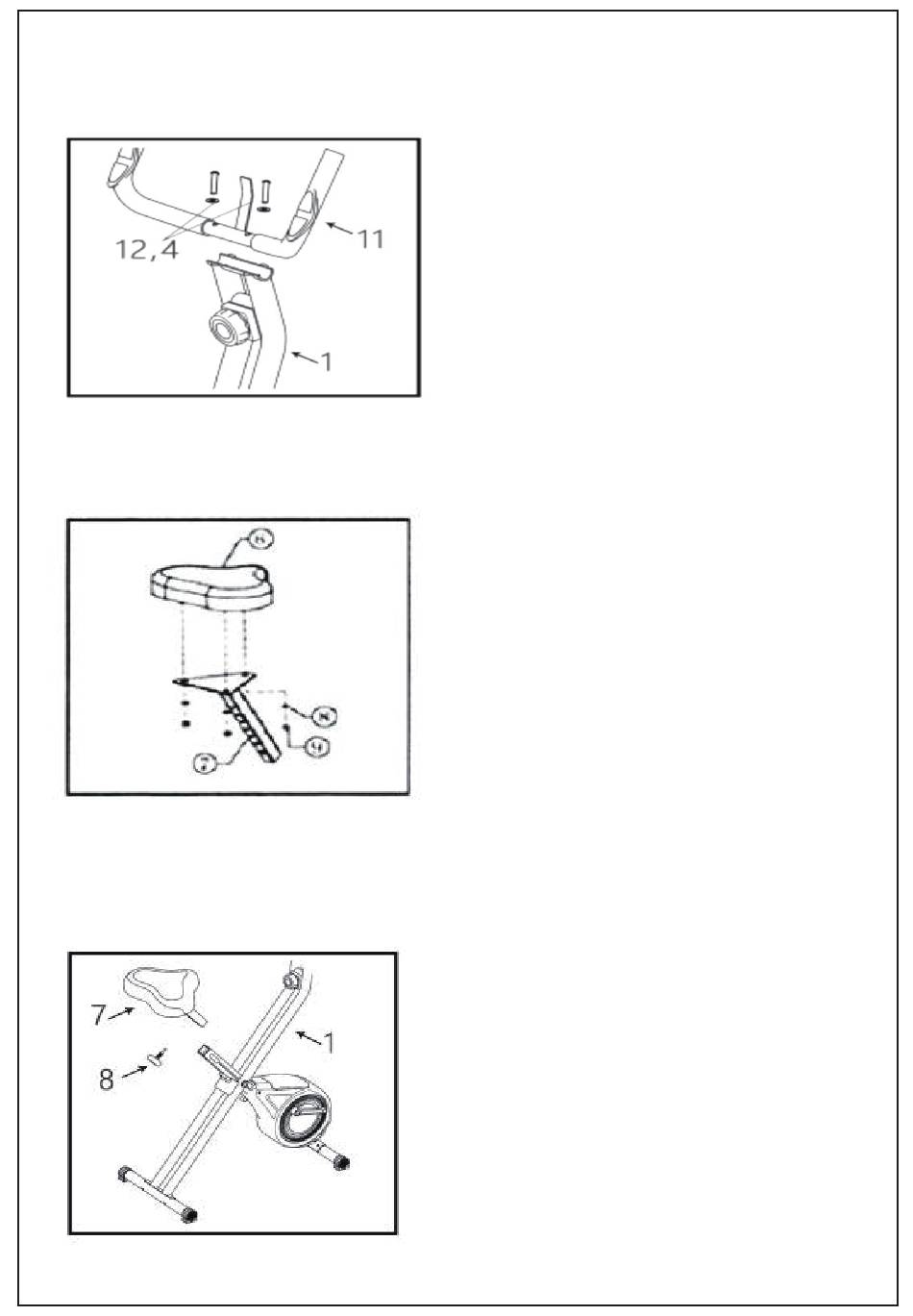

1. Attach the armrest (11) to the main frame (1), connect it with the cross-recessed
head screw (12) and the unit type gasket (4) using a key to tighten it.
2. Attach the cushion (6) to the cushion fixing frame (7), connect it with the large
cross-recessed transverse screw (9) and the flat gasket (8), using a key to tighten it.
3. Attach the main frame (1) to the cushion fixing frame (7), connect it with the button
(8) using a key to tighten it.
