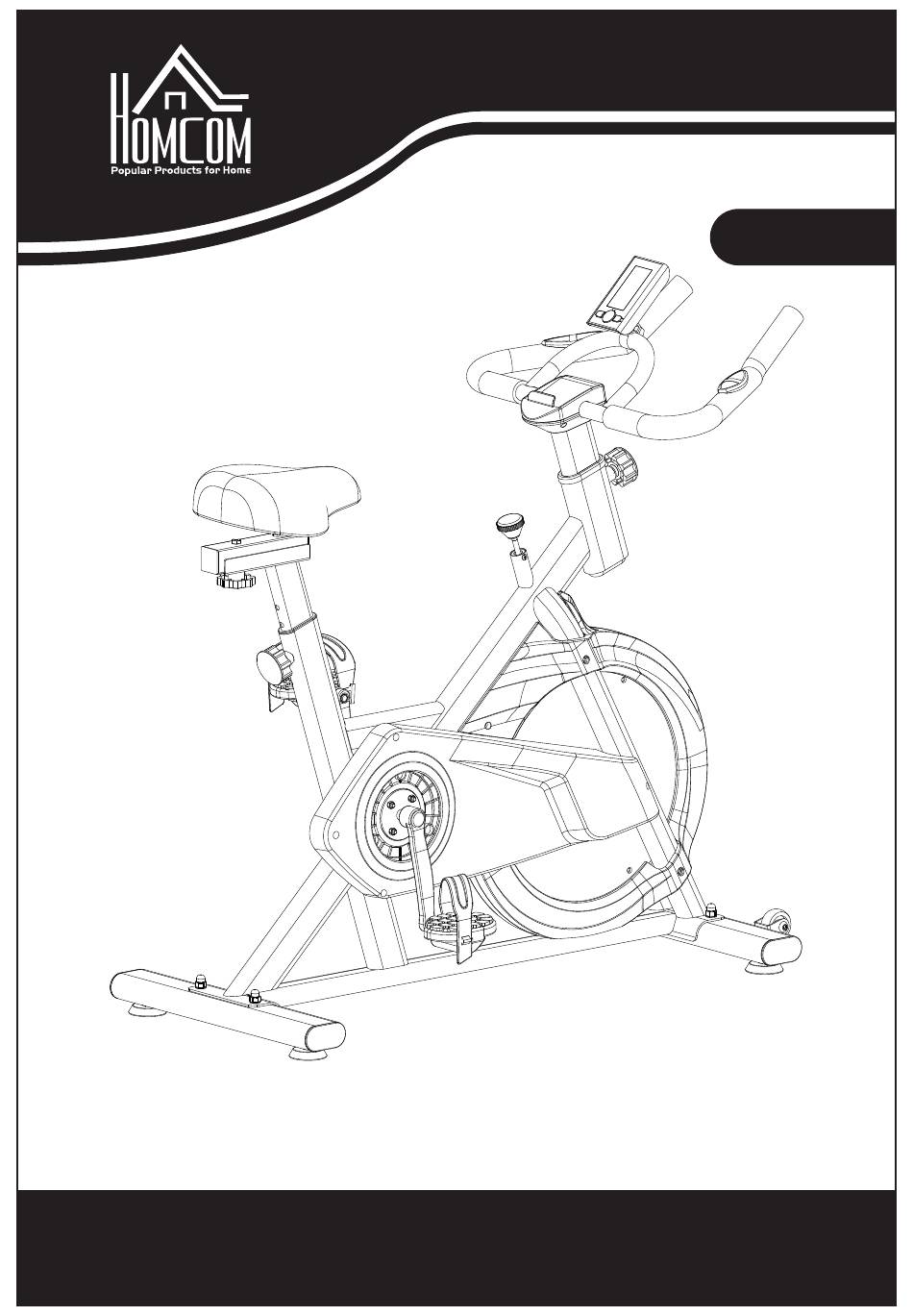

- Page 1 INada080V01_UK A90-193 READ AND SAVE THIS INSTRUCTION FOR FUTURE USE ASSEMBLY INSTRUCTION...
-
Page 2: Important Safety Instructions
Please read the User Manual carefully before using this product and retain for future reference. Important Safety Instructions Please read carefully prior to using this product. You should consult a physician before beginning any exercise program including a program involving the use of the spin bike – this is especially important if you are pregnant, sick, injured or have a pre-existing medical condition. -
Page 3: Exploded View
EXPLODED VIEW... -
Page 4: Part List
PART LIST NO. DESCRIPTION DESCRIPTION handlebar supporting tube main frame M8 nut Handle bar Flat gasket Combination screw front stabilizer Phone holder under part M5x45 carriage screws Phone holder upper part Pedal L/R Cross Tapping screw rear stabilizer Monitor holder seat supporting tube Monitor seat sliding set... - Page 5 ASSEMBLY INSTRUCTIONS STEP 1 and 2 1. Fix the front stabilizer (4) and the rear stabilizer (7) to the main frame (1). 2. Lock into the proper place with the bolts (05), washers (03) and nuts (02) provided – see the illustrations. 3.
- Page 6 STEP 3 and 4 and 5 1. Fix the seat supporting tube (8) into the main frame (1), to tighten it with the adjustable knob (13), then slide the seat sliding set (9) into the seat supporting tube (8), to lock in with the adjustable knob (12). 2.
- Page 7 STEP 6 and 7 1. Fix the handlebar (15) to the handlebar supporting tube (14) with the provided bolts and washers. then install the phone holder under part(19) to the handle supporting tube(14) and lock the tube with the adjustable knob (13). Finally , tighten the screws of the upper and under parts of the phone holder.
- Page 8 Most Important After all above steps finished, the most important is to make sure all the bolts and parts are securely fixed before you are riding on the bike. COMPUTER OPERATING INSTRUCTIONS SCAN Scans all functions – TIME, SPEED, DISTANCE, TOTAL DIST, PULSE, CALORIES TIME Displays work out time lapse while exercising SPEED...
- Page 9 1. You will need one button battery (provided) to operate the Computer. 2. To select the function you want, press the MODE button and then select the function of choice from the table above. 3. To reset the Computer, hold down the MODE button for 4 seconds. 4.
