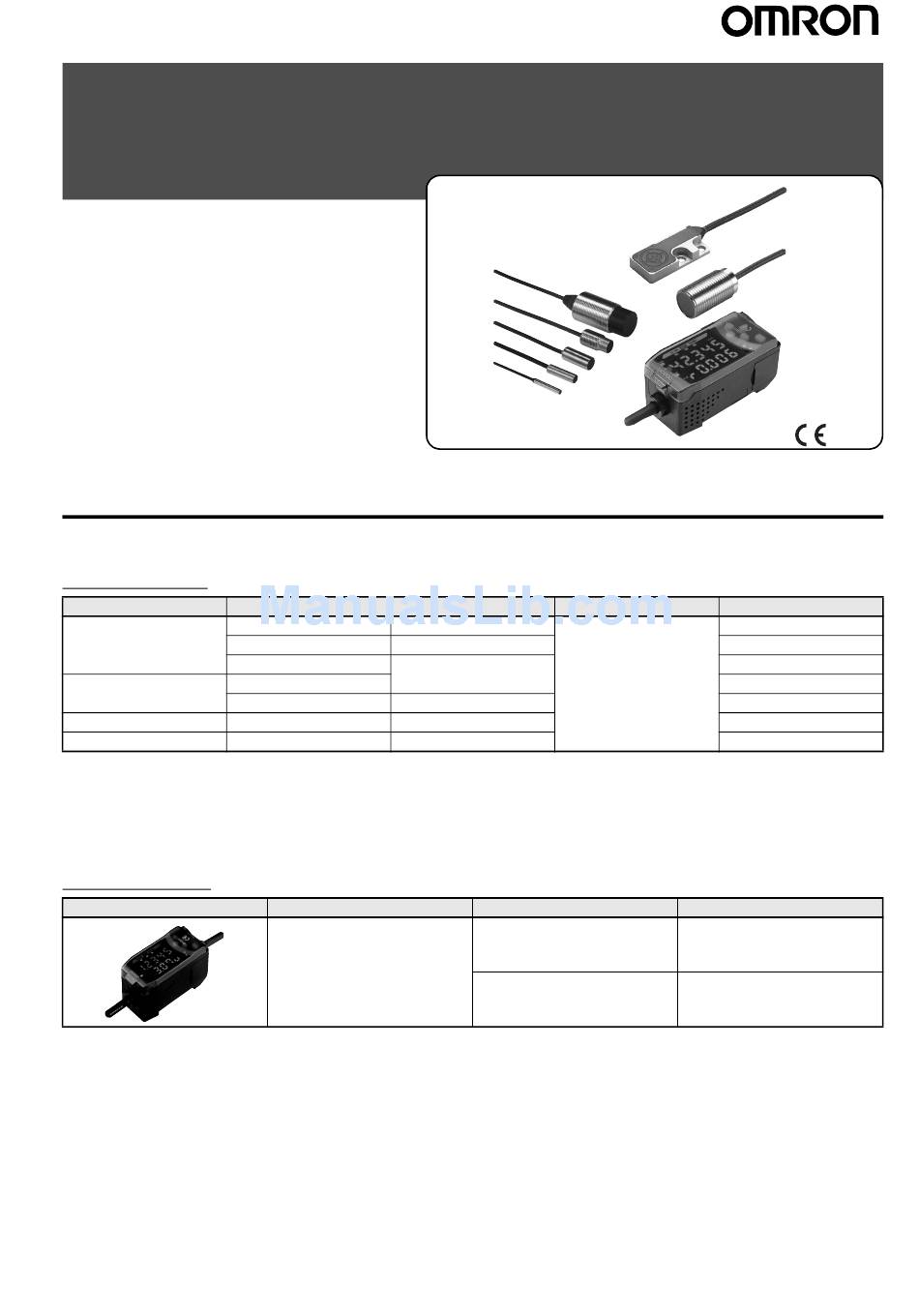

Operating Manual
Smart Sensors (Inductive Displacement Type)
ZX-E Series
Smart Sensors that use the
eddy current method are now
available. Develop new applica-
tions with sub-micron sensing
technology.
Ordering Information
■ Sensors
Sensor Heads
Shape
Cylindrical
3 dia. x 18 mm
5.4 dia. x 18 mm
8 dia. x 22 mm
Screw-shaped
M10 x 22 mm
M18 x 46.3 mm
Flat
30 x 14 x 4.8 mm
Heat-resistant, cylindrical
M12 x 22 mm
*1: For an average count of 4,096.
*2: Models with Protective Spiral Tubes are also available. Add a suffix of "-S" to the above model numbers when ordering.
(Example: ZX-ED01T-S)
*3: Be sure to use ZX-EDA Amplifier Unit version 1,200 or later with the ZX-EV04.
*4: Be sure to use ZX-EDA Amplifier Unit version 1,300 or later with the ZX-EM02H.
Amplifier Units
Appearance
Note:
Compatible connection with the Sensor Head.
Dimensions
Sensing distance
0.5 mm
1 mm
2 mm
7 mm
4 mm
2 mm
Power supply
DC
ZX-E Series
Resolution *1
1 µ m
Output type
NPN
PNP
Smart Sensors (Inductive Displacement Type)
Model
ZX-EDR5T
ZX-ED01T *2
ZX-ED02T *2
ZX-EM02T *2
ZX-EM07MT *2
ZX-EV04T *2 *3
ZX-EM02HT *4
Model
ZX-EDA11
ZX-EDA41
.
1
Advertisement
Table of Contents
Related Manuals for Omron ZX-E
Summary of Contents for Omron ZX-E
-
Page 1: Ordering Information
ZX-EM02HT *4 *1: For an average count of 4,096. *2: Models with Protective Spiral Tubes are also available. Add a suffix of “-S” to the above model numbers when ordering. (Example: ZX-ED01T-S) *3: Be sure to use ZX-EDA Amplifier Unit version 1,200 or later with the ZX-EV04. -
Page 2: Specifications
Dielectric strength 1,000 VAC, 50/60 Hz for 1 min between charged parts and case Vibration resistance (destruction) 10 to 55 Hz with 1.5-mm double amplitude for 2 h each in X, Y, and Z directions Shock resistance (destruction) 500 m/s... - Page 3 *1:Resolution: The resolution is the deviation ( ± 3 σ ) in the linear output when connected to the ZX-EDA Amplifier Unit. The above values indicate the deviations observed 30 minutes after the power is turned ON. (The resolution is measured with OMRON's standard reference object at 1/2 of the measurement range with the ZX-EDA set for the maxi- mum average count of 4,096 per period.)
-
Page 4: Engineering Data (Typical)
−0.2 −0.2 −0.3 −0.3 −0.3 Measurement distance (mm) Measurement distance (mm) Measurement distance (mm) Size of Sensing Object vs. Linearity (with Linearity Adjusted for Each Sensing Object) ZX-EDR5T ZX-ED01T ZX-ED02T/ZX-EM02T S50C @5 S50C @5 S50C @5 S50C @8 S50C @8... - Page 5 Size of Sensing Object vs. Linearity (with Linearity Adjusted for Standard Sensing Object) ZX-EDR5T ZX-ED01T ZX-ED02T/ZX-EM02T S50C @5 S50C @8 S50C @12 S50C @18 S50C @30 S50C @45 −1 −1 −1 −2 S50C @5 S50C @5 −2 −2 S50C @8 S50C @8 −3...
- Page 6 Material of Sensing Object vs. Linearity ( with Linearity Adjusted for Standard Sensing Object and Iron) ZX-EDR5T ZX-ED01T ZX-ED02T/ZX-EM02T S50C @18 S50C @18 S50C @30 SUS304 @18 SUS304 @18 SUS304 @30 A5052 @18 A5052 @18 A5052 @30 Measurement distance (mm)
-
Page 7: I/O Circuit Diagrams
Unit. (Do not allow wiring, particularly the linear output, to come into contact with other lines.) 3. Use the blue (0-V) line for the power supply and use the shield wire (linear output ground) together with the black (lin- ear output) line for linear output. -
Page 8: Part Names
ZX-EM02HT Input cable Output cable (with connector) Preamplifier (with connector) Sensor head Output cable Connector (Cover opens and closes) ZX-EV04T Calculating Unit Output cable (with connector) Sensor head Preamplifier ZX-CAL2 Display area Connector ZX-E Series Smart Sensors (Inductive Displacement Type) -
Page 9: Power Supplies
Precautions ■ Design Precautions Do not lay the power cable for the product together with or in the same duct as high-voltage lines or power lines. Doing so may result in in- Conform to the specified ratings and performance. Refer to Specifi- correct operation or damage due to induction. -
Page 10: Maintenance And Inspection
Handling When mounting the Sensor Head, do not apply excessive shock by, for example, using a hammer. Doing so may result in damage or a re- duction in the level of water-proofing. Also, there are screw-shaped models that require a toothed washer to allow for a tolerance in the tightening torque for the nut. -
Page 11: Sensor Heads
Dimensions Sensors Sensor Heads ZX-EDR5T Dimensions with Mounting Bracket Attached Vinyl-insulated round cable 5.1 dia., 9 conductors, standard length: 200 mm Vinyl-insulated coaxial round cable (46) 1.7 dia., 1 conductor, standard length: 2 m (15 dia.) 3 dia. (15.5) 15 dia. - Page 12 ZX-EM02T Dimensions with Mounting Bracket Attached Vinyl-insulated round cable 5.1 dia., 9 conductors, standard length: 200 mm Vinyl-insulated coaxial round cable (5.4) (46) 16.6 2.5 dia., 1 conductor, standard length: 2 m (15 dia.) 8 dia. M10×1 Connector (15.5) 2 tightening nuts 15 dia.
-
Page 13: Amplifier Units
Dimensions with Mounting Bracket Attached ZX-EM02HT Teflon-insulated coaxial round cable 2.5 dia., single conductor standard length: 2m 21 dia. 10.5 dia. M12×1 Two fastening nuts (15.5) 15 dia. Toothed washer (22.5) 15.1 Connector 15.6 Vinyl-insulated round cable 58.2 5.1 dia., 9 conductors,... -
Page 14: Calculating Unit
Accessories (Sold Separately) Preamplifier Mounting Bracket ZX-XBE1 ZX-XBE2 27± 15.5 15.5 27± M3×8 pan-head screw (with M3 spring washer) 63.3 63.3 15.5 15.5 21.9 21.9 31.9 Material: Stainless steel (SUS304) 11.4 35.3 Material: Stainless steel (SUS304) Calculating Unit ZX-CAL2 Operation Connectors 24.9... - Page 15 13.2 Vinyl-insulation round cable, 5.23 dia. 11.7 (33.1) 11.7 Connector 6.55 Cables with Connectors on Both Ends (for Extension) ZX-XC1A (1 m) ZX-XC4A (4 m) ZX-XC8A (8 m) 15 dia. 15.5 dia. Vinyl-insulated round cable, 5.2 dia., 10 conductors 12 pins (male)
- Page 16 ALL DIMENSIONS SHOWN ARE IN MILLIMETERS. To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527. This document provides information mainly for selecting suitable models. Please read the manual carefully for information that the user must understand and accept before purchase, including information on warranty, limitations of liability, and precautions.
